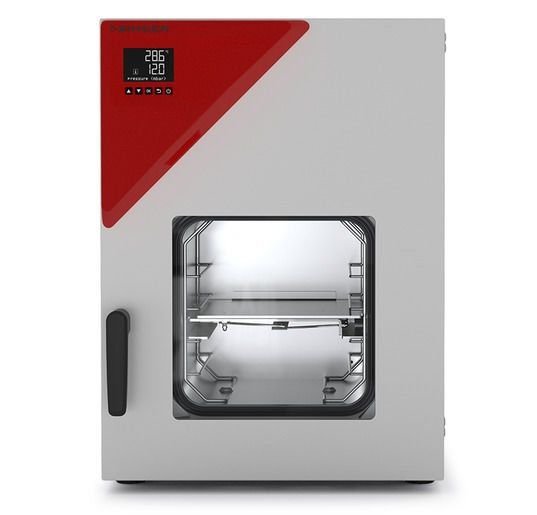

Binder Vacuum Drying Chambers for Flammable Solvents | VDL 56
BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.
Binder Vacuum Drying Chambers for Flammable Solvents | VDL 56 General Information
- Temperature range: +9°C above ambient temperature to +110 °C
- ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
- Intuitive touchscreen controller with graphical pressure and temperature display
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Pressure control device for heating activated from < 100 mbar
- 2 aluminum expansion racks, can be custom-positioned
- Universal connection for ventilation with ambient air or inert gas
- Universal access port DN 16 - for the introduction of external measuring devices
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Computer interface: Ethernet
Binder Vacuum Drying Chambers for Flammable Solvents | VDL 23 Technical Data
Data
| Designation |
VDL056-230V |
VDL056-120V |
| Article Number | 9630-0010 | 9630-0014 |
| Option model |
Standard |
Standard |
| Designation |
VDL056-230V |
VDL056-120V |
| Temperature range | +9 °C above ambient temperature to 110 °C | +9 °C above ambient temperature to 110 °C |
| Temperature uniformity at 100°C | 1.2 ± K | 1.2 ± K |
| Temperature fluctuation at 100°C | 0.1 ± K | 0.1 ± K |
| Heating up time to 100°C | 140 min | 140 min |
Vacuum Data
| Designation |
VDL056-230V |
VDL056-120V |
| Leckrate | 0,01 bar/h | 0,01 bar/h |
Electrical Data
| Designation |
VDL056-230V |
VDL056-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,4 kW | 1,4 kW |
| Unit fuse | 8,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation |
VDL056-230V |
VDL056-120V |
| Vacuum connection with small flange | 16 DN mm | 16 DN mm |
| Measuring access port with small flange | 16 DN mm | 16 DN mm |
| Designation |
VDL056-230V |
VDL056-120V |
| Interior volume | 55 L | 55 L |
| Net weight of the unit (empty) | 104 kg | 104 kg |
| Load per rack | 20 kg | 20 kg |
| Permitted load | 60 kg | 60 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 70 mm | 70 mm |
Housing dimensions not incl. fittings and connections
| Designation | VDL056-230V | VD056-120V |
| Width net | 638 mm | 638 mm |
| Height net | 815 mm | 815 mm |
| Depth net | 461 mm | 461 mm |
| Designation | VDL056-230V | VDL056-120V |
| Interior width | 400 mm | 400 mm |
| Interior height | 400 mm | 400 mm |
| Interior depth | 343 mm | 343 mm |
| Viewing window width | 420 mm | 420 mm |
| Viewing window height | 420 mm | 420 mm |
| Unit doors | 1 | 1 |
| Designation | VDL056-230V |
VDL056-120V |
| Sound-pressure level | 40 dB(A) | 40 dB(A) |
| Energy consumption at 100°C | 180 Wh/h | 180 Wh/h |
| Designation | VDL056-230V |
VDL056-120V |
| Number of shelves (std./max.) | 2/5 | 2/5 |
