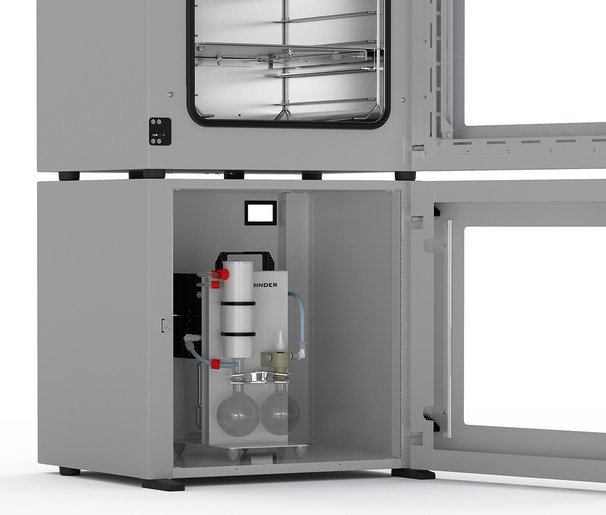

Also option of modular complete system with vacuum pump and pump chamber

Product ınformatıon

Binder Vacuum Drying Chambers for Flammable Solvents | VDL 23

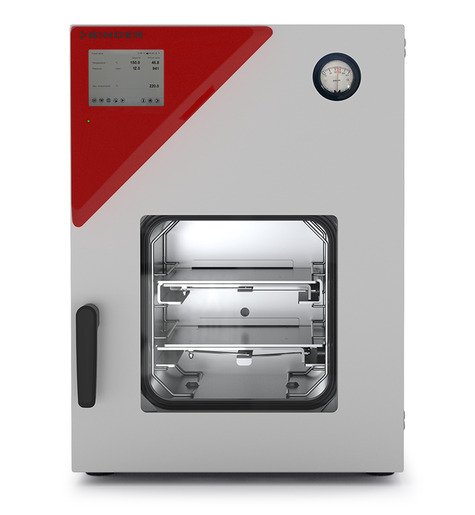

BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.

Binder Vacuum Drying Chambers for Flammable Solvents | VDL 23

Binder Vacuum Drying Chambers for Flammable Solvents | VDL 23 General Information
- Temperature range: +9°C above ambient temperature to +110 °C
- ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
- Intuitive touchscreen controller with graphical pressure and temperature display
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Pressure control device for heating activated from < 100 mbar
- 2 aluminum expansion racks, can be custom-positioned
- Universal connection for ventilation with ambient air or inert gas
- Universal access port DN 16 - for the introduction of external measuring devices
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Computer interface: Ethernet

Binder Vacuum Drying Chambers for Flammable Solvents | VDL 23 Technical Data

Data

Designation	VDL023-230V	VDL023-120V
Article Number	9630-0009	9630-0013
Option model	Standard	Standard

Performance Data Temperature

Designation	VDL023-230V	VDL023-120V
Temperature range	+9 °C above ambient temperature to 110 °C	+9 °C above ambient temperature to 110 °C
Temperature uniformity at 100°C	1 ± K	1 ± K
Temperature fluctuation at 100°C	0.1 ± K	0.1 ± K
Heating up time to 100°C	110 min	110 min

Vacuum Data

Designation	VDL023-230V	VDL023-120V
Leckrate	0,01 bar/h	0,01 bar/h

Electrical Data

Designation	VDL023-230V	VDL023-120V
Rated Voltage	200...230 V	100...120 V
Power frequency	50/60 Hz	50/60 Hz
Nominal power	0,9 kW	0,9 kW
Unit fuse	6,3 A	10,0 A
Phase (Nominal voltage)	1~	1~

Connections

Designation	VDL023-230V	VDL023-120V
Vacuum connection with small flange	16 DN mm	16 DN mm
Measuring access port with small flange	16 DN mm	16 DN mm

Measures

Designation	VDL023-230V	VDL023-120V
Interior volume	24 L	24 L
Net weight of the unit (empty)	72 kg	72 kg
Load per rack	20 kg	20 kg
Permitted load	50 kg	50 kg
Wall clearance back	100 mm	100 mm
Wall clearance sidewise	70 mm	70 mm

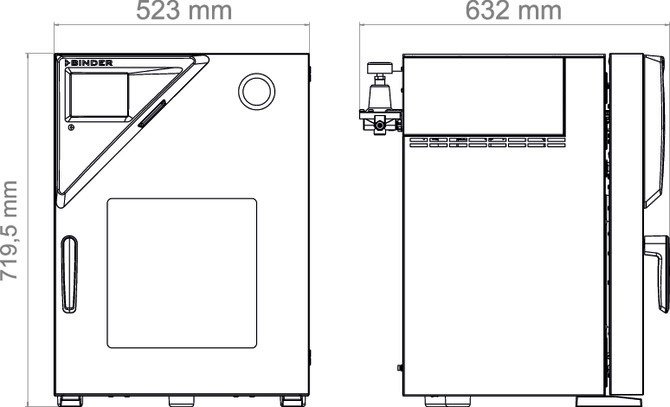

Housing dimensions not incl. fittings and connections

Designation	VDL023-230V	VD023-120V
Width net	523 mm	523 mm
Height net	698 mm	698 mm
Depth net	413 mm	413 mm

Internal Dimensions

Designation	VDL023-230V	VDL023-120V
Interior width	285 mm	285 mm
Interior height	285 mm	285 mm
Interior depth	295 mm	295 mm
Viewing window width	305 mm	305 mm
Viewing window height	305 mm	305 mm
Unit doors	1	1

Environment Specific Data

Designation	VDL023-230V	VDL023-120V
Sound-pressure level	40 dB(A)	40 dB(A)
Energy consumption at 100°C	140 Wh/h	140 Wh/h

Fixtures

Designation	VDL023-230V	VDL023-120V
Number of shelves (std./max.)	2/4	2/4
