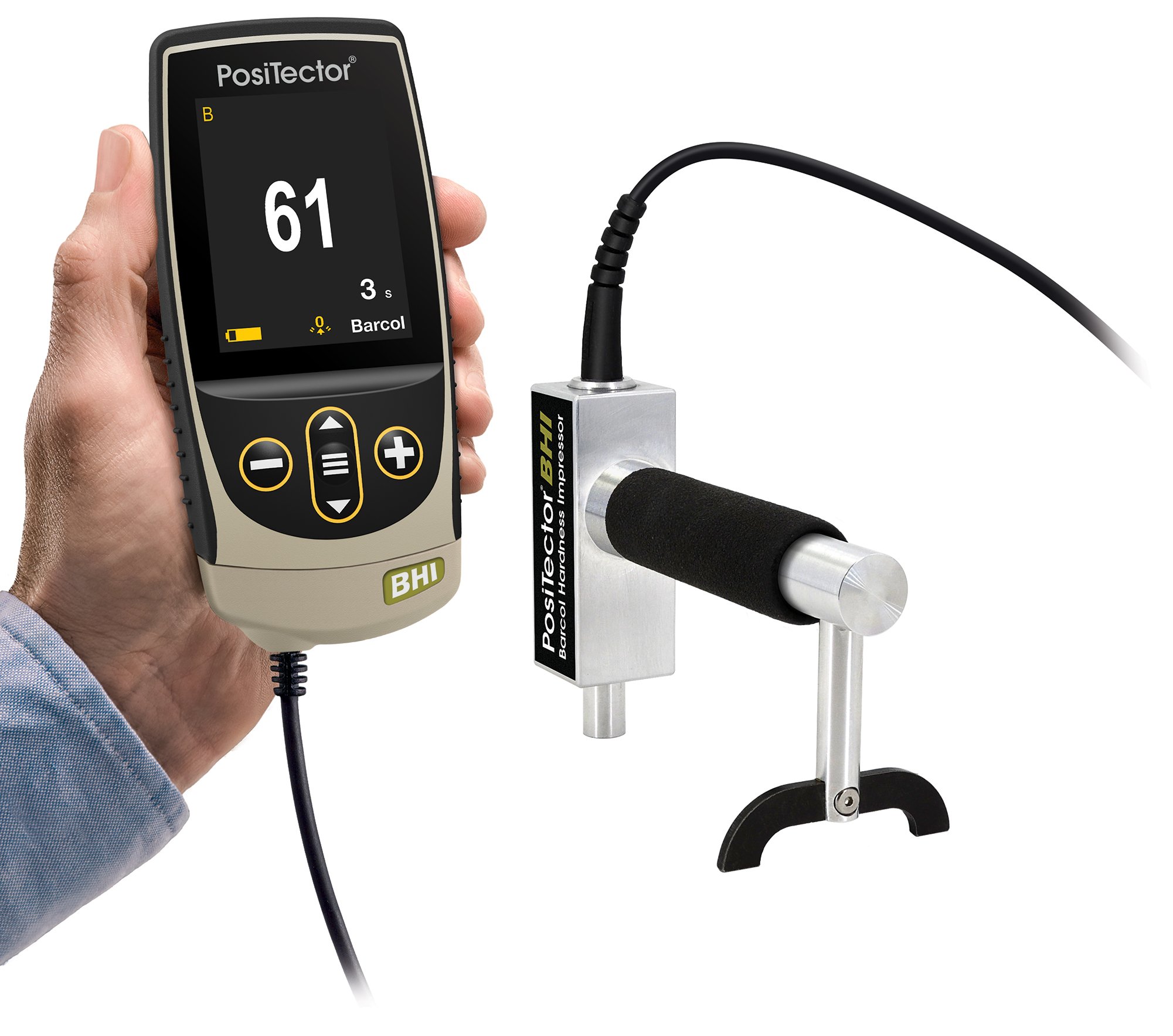

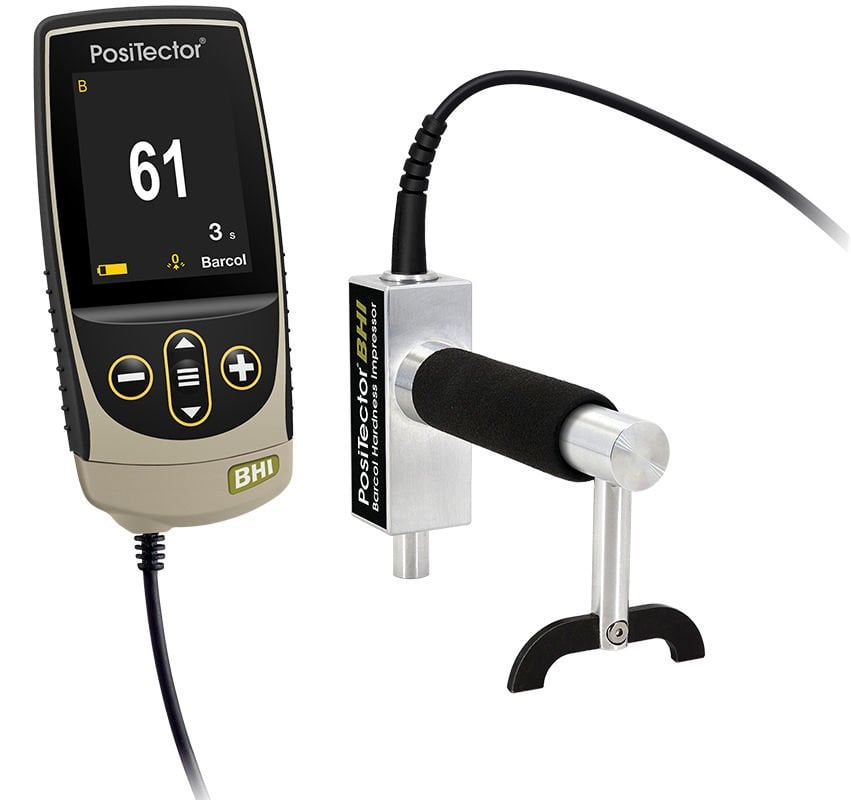

DeFelsko Barcol Hardness Impressor | PosiTest BHI

DeFelsko Barcol Hardness Impressor | PosiTest BHI

DeFelsko

DeFelsko Barcol Hardness Impressor | PosiTest BHI

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

- Easy-to-read digital display

- Comparable to 934-1 Barcol Hardness Tester

- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

- PosiTector interchangeable platform—attach any PosiTector probe to a single gage body

- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

- Certificate of Calibration included

Conforms to ASTM D2240, ISO 48-4/868/7267/7619, and DIN 53505

DeFelsko Barcol Hardness Impressor | PosiTector BHI General Information

Standard Models

Includes ALL features as shown on left plus...

- NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

- NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches

- Auto Sub-Batch—automatically create new sub-batches after the desired number of readings are taken

- Live graphing of measurement data

- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more

- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

- Store thickness, profile, environmental, salt contamination, hardness, and wall thickness measurements in individual batches

Simple

Easy-to-read digital display
Comparable to 934-1 Barcol Hardness Tester
User-adjustable measurement time with on-screen countdown
Includes spare, field replaceable indentor with replacement tool
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Powerful

Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
NEW Screen Capture—save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
NEW Instant-on feature quickly powers up the gage if recently powered down
NEW Up to 30% longer battery life
USB Port for fast, simple connection to a PC and to supply continuous power
PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Every stored measurement is date and time stamped
Software Updates via the internet keep your gage current
Includes PosiSoft suite of software for viewing, analyzing and reporting data

Accurate

Certificate of Calibration included
Hi-RES mode increases displayed resolution for precision applications

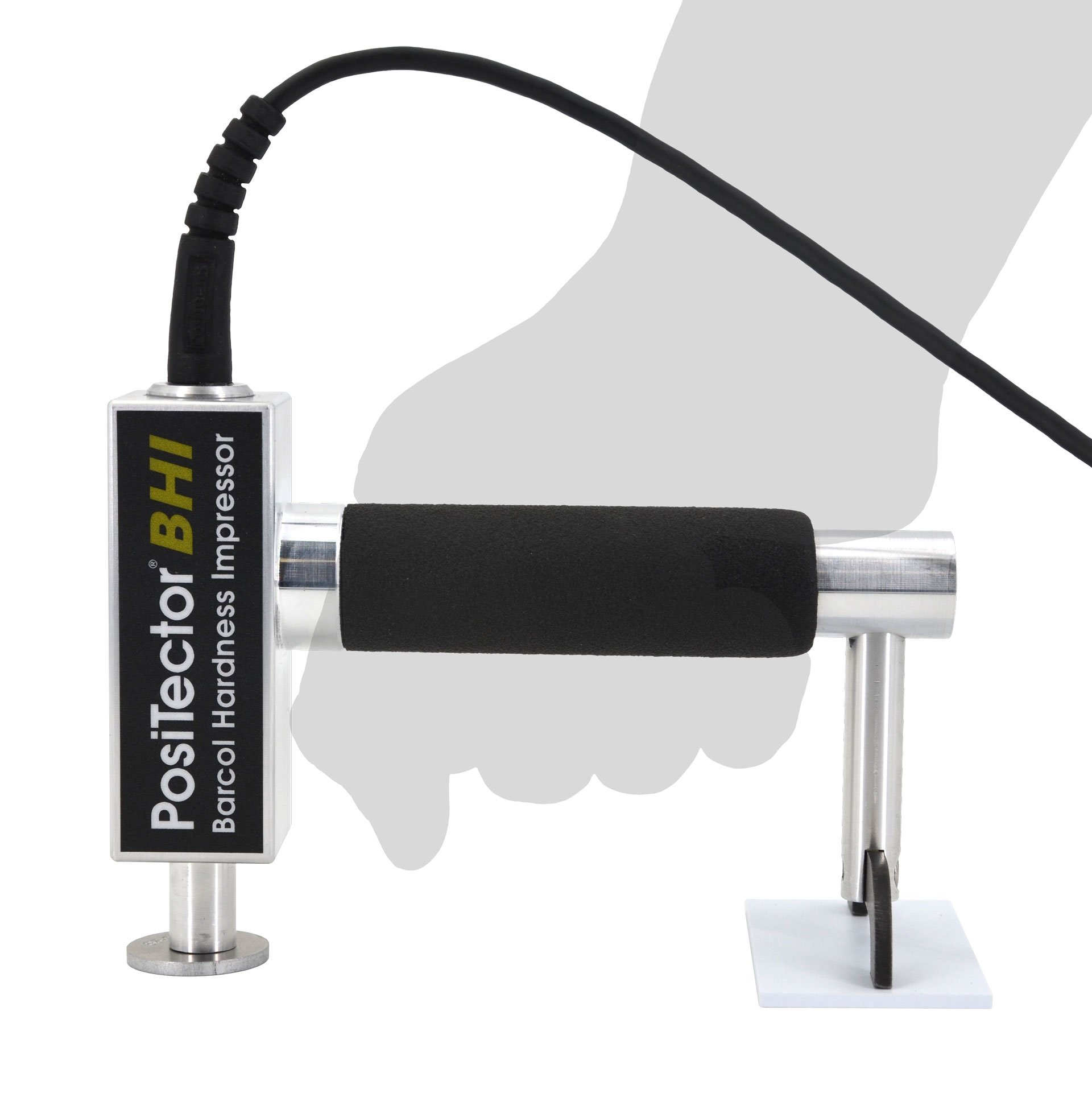

Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
Conforms to national and international standards including ASTM

Versatile

PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
1 and 2 point calibration options with Cal Reset to restore factory settings
Selectable display languages
NEW Auto rotating display with Flip Lock

Durable

NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
Shock-absorbing, protective rubber holster for added impact resistance
Hard-shell carrying case included
Two year warranty on gage body AND probe

Specifications

Measurement Range	20 – 100 Barcol
Resolution	0.1 Barcol
Accuracy	± 2 Barcol
Size*	127 x 66 x 25.4 mm (5" x 2.6" x 1")
Weight*	137 g (4.9 oz.) without batteries

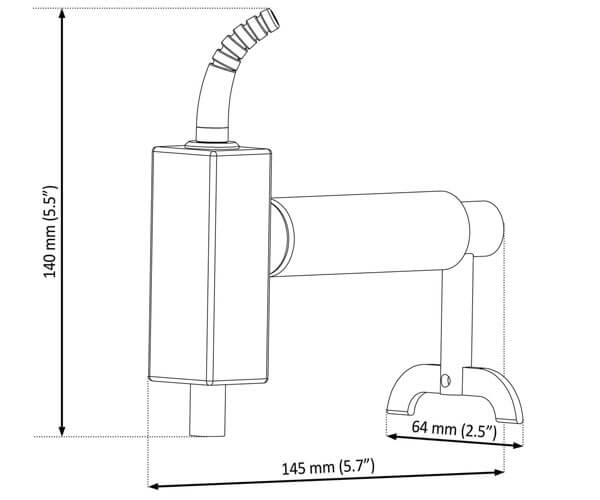

Probe Size	145 x 97 x 64 mm (5.7" x 3.8" x 2.5")
Probe Headroom	140 mm (5.5")
Probe Weight	400 g (14.1 oz.)

View Dimensions
* Size and weight are for the PosiTector gage body only and do not include the probe
