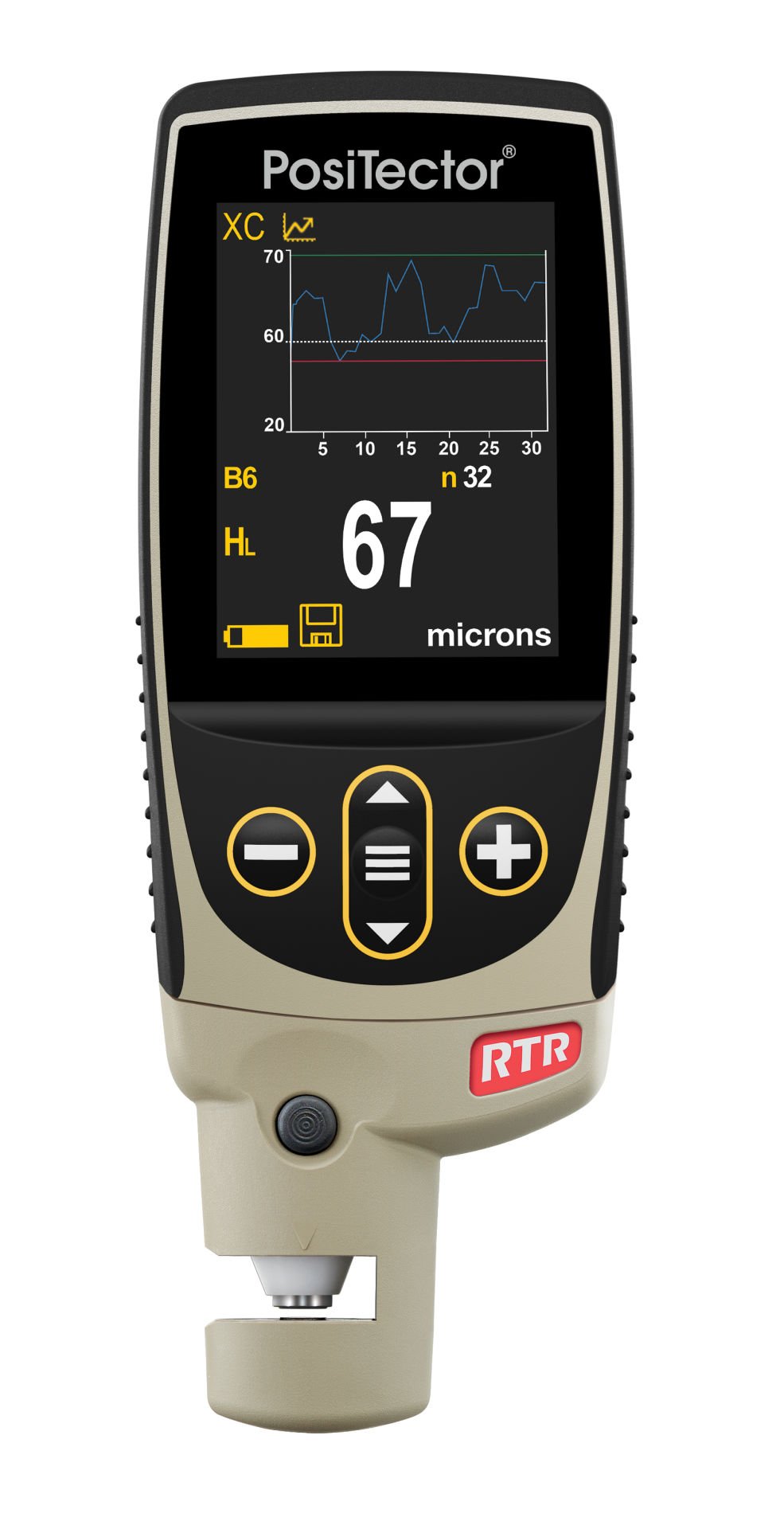

DeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR H
DeFelsko

DeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR H

Category
Surface Profile
Stock Code
Positector RTR-H
Warranty Period
24 Month
All gages come complete with stainless steel burnishing tool, 5 cleaning cards, check shim(s), surface cleaning putty, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to PTB, USB cable, PosiSoft Software, two (2) year warranty on body and probe.

Ordering Guide
Standard Mode RTRH1
Advanced Model RTRH3
Probe Only PRBRTRH

For information on measuring common 2D/3D profile parameters such as Ra, Rz, Sq, Spd and more with the PosiTector RTR 3D
Product information
Product information
defelsko, defelsko coating thickness, adhesion testing, authorized sales dealer

DeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR H

   Digital spring micrometers measure and record surface profile parameters using Testex Press-O-Film™ replica tape—producing a more accurate peak-to-valley height measurement.


  • Ready to measure—no calibration adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to PTB included (Long Form)
Made in USA flag with black text below
 Conforms to ASTM D4417, ISO 8503-5, NACE SP0287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T, and others


DeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR H General Information

 Standard Models
 Includes ALL features as shown on left plus...

- NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

 Advanced Models
 Includes ALL features as shown on left plus...
- NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches
- Live graphing of measurement data
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
-  Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
    Simple
  • Measures peak height (HL)
  • Automatically subtracts the 50.8 μm (2 mils) incompressible film from all readings
  • Minimizes inspector workload by reducing the number of replicas needed to ensure accuracy
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

    Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Rugged indoor/outdoor instrument—ideal for field or shop use
  • NEW Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

    Accurate

  • Produces a more accurate peak-to-valley height measurement. See linearized peak height (HL)
  • Certificate of Calibration showing traceability to PTB included (Long Form)
  • Conforms to national and international standards including ISO 8503-5, ASTM D4417 Method C, NACE RP0287 and SSPC-PA17

    Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Mils/Microns switchable
  • Selectable display languages
  • NEW Auto rotating display with Flip Lock

    Powerful
  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Software Solutions for viewing, analyzing & reporting data
  • Software Updates via web keep your gage current

DeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR H Images
DeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR HDeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR HDeFelsko Electronic Surface Profile Gage for Blasted Steel and Textured Coatings | Positest RTR H

Downloads
DeFelsko RTR H Literature
