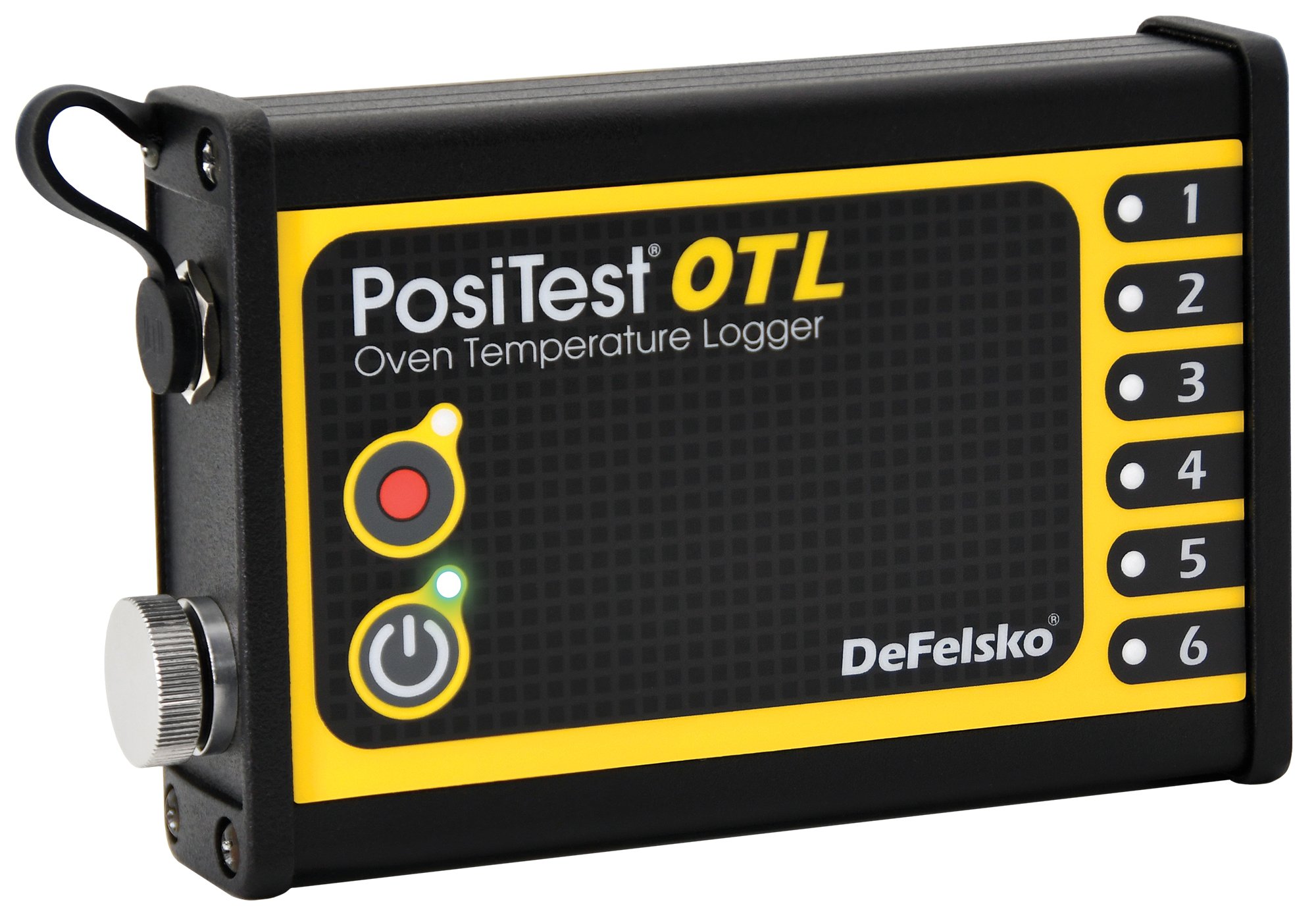

DeFelsko Oven Temperature Logger | Positest OTL

- Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches

- High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.

- 6 K-type thermocouple ports (channels)

- NEW Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure

- Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.

- Wide variety of probes available with 1.8, 3.6, or 6 m (6', 12', or 20') stainless steel braided cables (sold separately)

Conforms to international standards including ASTM C1583/D4541/D7234, ISO 4624/16276-1, EN 1542/12004-2, AS/NZS 1580.408.5 and others

DeFelsko Oven Temperature Logger | Positest OTL General Information

Simple

Simple, easy-to-use interface

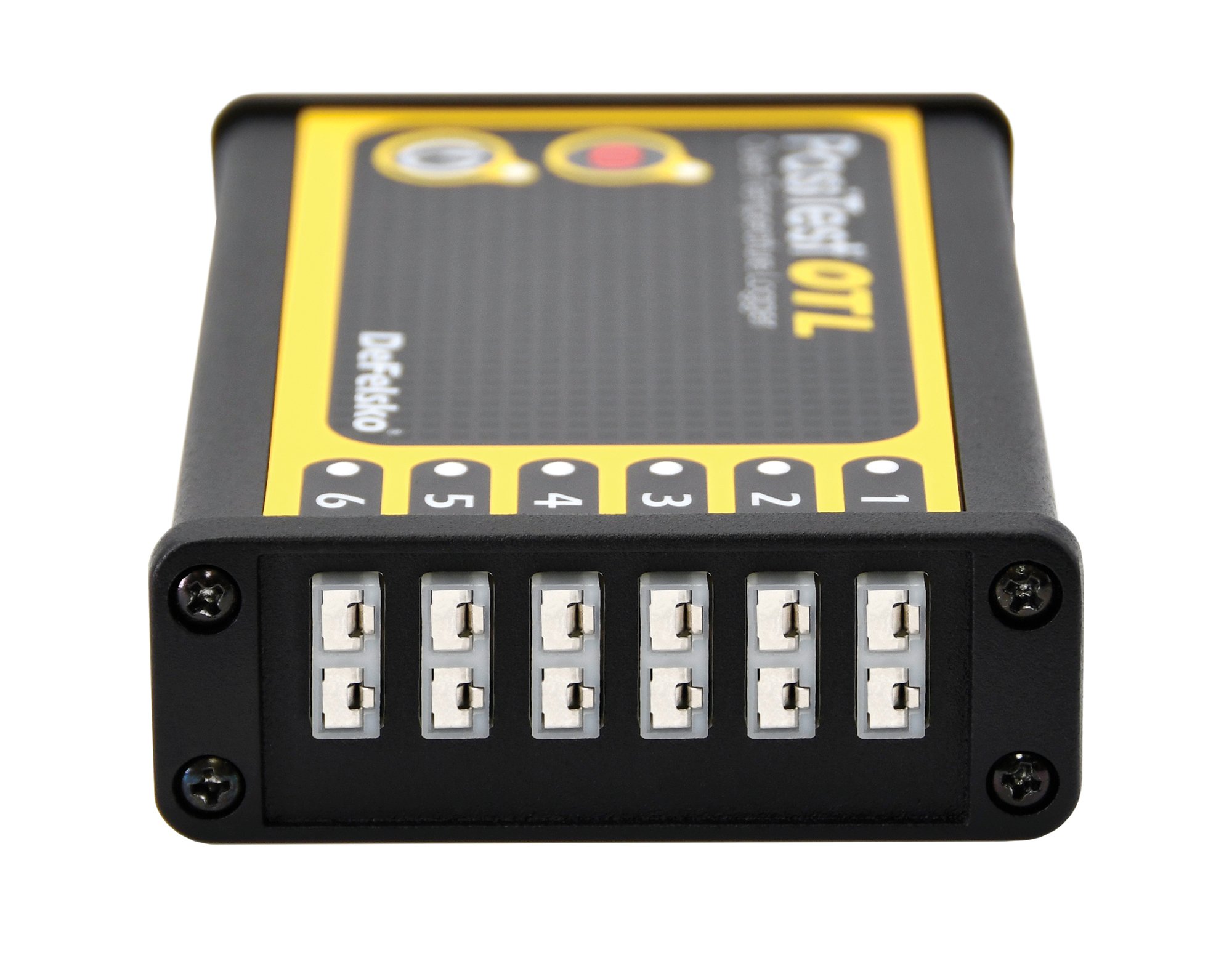

6 K-type thermocouple ports (channels)
Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
Records measurements every 2 seconds for up to 22 hours of recording time
Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
NEW Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure
Bright LEDs indicate logger status at a glance

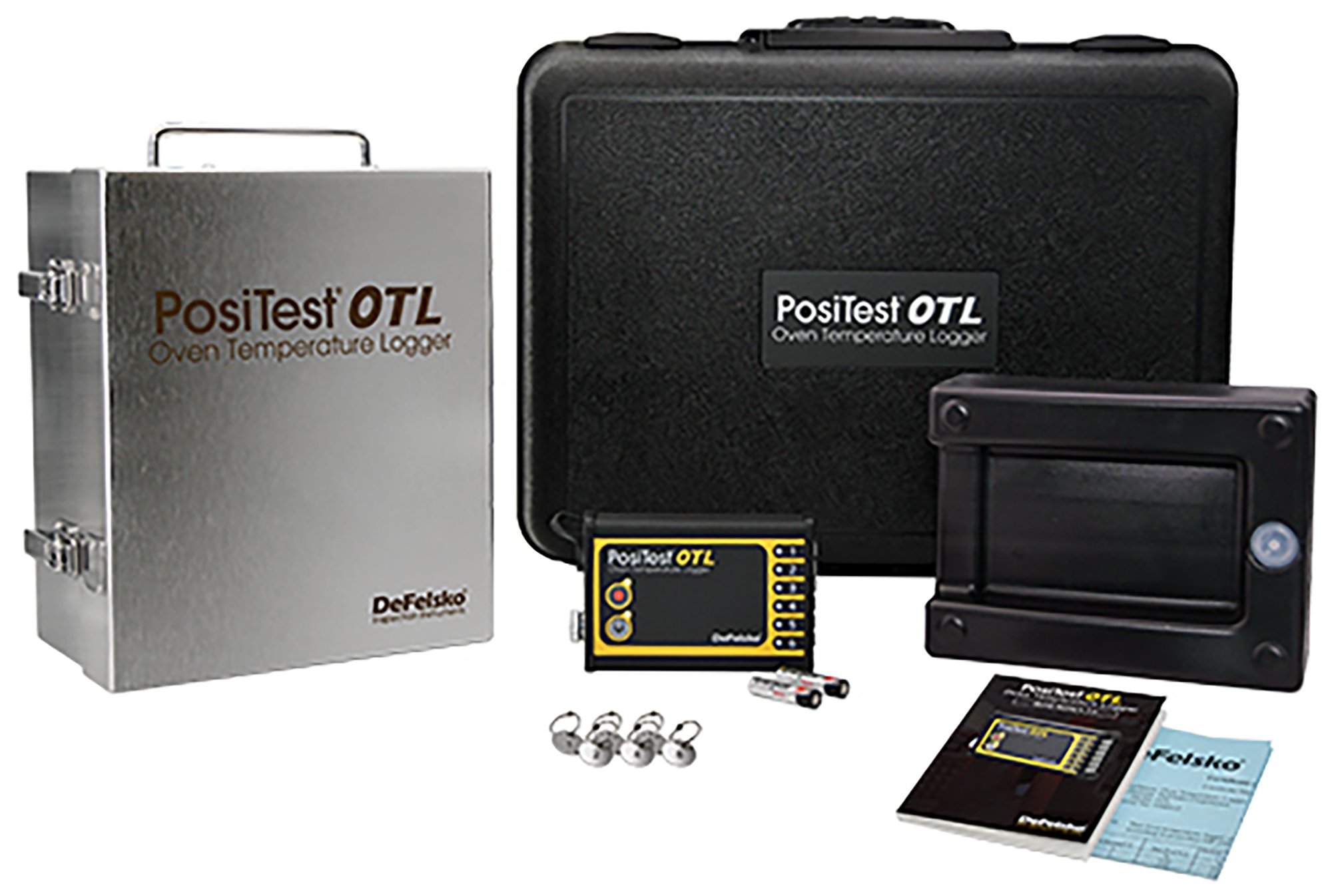

High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
Certificate of calibration showing traceability to NIST included

Channels	6 K-type non-grounded thermocouples
Thermocouple Measurement Range	-100 to 1000°C -148 to 1832°F
Logger Accuracy	±0.5° C ±0.9° F
Resolution	0.1° C 0.1° F
Memory	40,000 Datasets. Each Dataset consists of up to 6 channels.
Sample Interval	2 seconds (Fixed) Maximum recording time is 22 hours
Power Source	2 AAA batteries
Battery Life	30 hours (recording time)
Size	30.5 x 25.5 x 15 cm (12" x 10" x 6")
Weight*	9 kg (20 lbs.)

* Weight includes the PosiTest OTL Holder, and Barrier Box. Holder XT increases weight to 11 kg (25 lbs.)

DeFelsko Oven Temperature Logger | Positest OTL Images
