DeFelsko Leak Tester | PosiTector AIR

Quickly and easily detect air and water leaks in building envelopes and rigid air barrier systems. Ideal for testing penetrations (fasteners, masonry ties, etc.) and continuity of joints and seams in rigid air barrier systems.

For use with...

- Single and two-ply membranes

- Liquid applied membranes

- Sprayed Polyurethane Foam (SPF)

- Boardstock

- Metal Liners

- Exterior Insulation and Finish Systems (EIFS)

- EPDM roofing systems

- Waterproofing and more

Conforms to ASTM E1186

DeFelsko Leak Tester | PosiTest Air General Information

Simple

Each kit comes with everything needed for testing
Includes FREE downloadable PosiSoft Desktop Software for PC
One year warranty

Accurate

Internal memory stores up to 200 test results with rate, time duration, limit and user-entered Pass/Fail conclusion
High accuracy pressure sensor
Conforms to National Standards including ASTM E1186

Durable

Portable, lightweight tester can be used in any position
Environmentally sealed enclosure—dustproof and waterproof
Built-in rechargeable batteries perform up to 200 tests per charge. Continue testing with AC power while batteries recharge. Supplied with universal AC adapter.

Specifications

Pressure Differential Range	100 – 900 Pa
Rate of Depressurization	5 – 30 Pa/Sec
Test Chamber Size	Ø16" (40 cm) Base
Resolution	1 Pa
Accuracy	± (10% + 10 Pa)
Carry Case Dimension	38 cm (15") x 48.3 cm Ø (19")
Weight	3.8 kg / 8.5 lbs.
Shipping Weight	6.7 kg / 14.7 lbs.

Tester comes complete with shoulder strap, high impact polycarbonate test chamber, durable 5' (1.5 m) hose with quick disconnect couplings, built-in rechargeable NiMH batteries with charger (AC power supply), 8 oz. test solution with dauber (Qty. 4), instruction manual, USB cable, PosiSoft Desktop Software (available as a free download), Certificate of Calibration traceable to NIST, one (1) year warranty and soft-sided nylon carry case.

How It Works

Detailed instructions are available in our PosiTest AIR Instruction Manual

The portable, hand-operated PosiTest AIR Leak Tester tests the air barrier integrity of single, two-ply and liquid membrane systems, including air barriers, roofing systems, waterproofing and ground liners by locating leaks.

In accordance with ASTM E1186, the PosiTest AIR will indicate whether leaks exist in the test area. It is a simple Pass/Fail test.

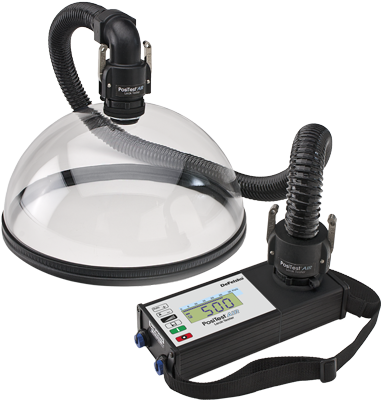

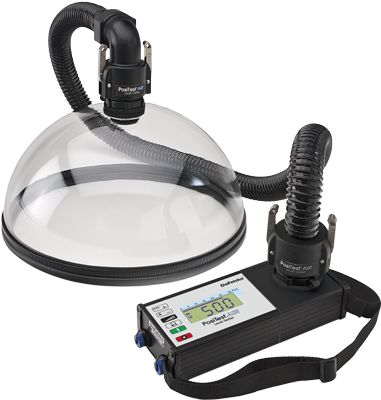

DeFelsko Leak Tester | PosiTest Air Images

DeFelsko | PosiTest Air
