Category
Surface Profile
Stock Code
Positector SPG
Warranty Period
24 Month
All gages come complete with glass zero plate, metal check shim, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to PTB, USB cable, PosiSoft Software, two (2) year warranty on body and probe.

*SIZE: 127 x 66 x 25.4 mm (5" x 2.6" x 1")
*WEIGHT: 137 g (4.9 oz.) without batteries
* Size and weight are for the PosiTector gage body only and do not include the probe.
 Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S. Navy NSI 009-32, SANS 5772 and others.
Product ınformatıon
Product ınformatıon
defelsko, defelsko coating thickness, adhesion testing, authorized sales dealer

DeFelsko Surface Profile Gages for Blasted Steel, Textured Coatings, and Concrete Profile | Positector SPG

   Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings

  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable
  • PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
  • Fast measurement rate of over 50 readings per minute—for quickly measuring large surfaces
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to PTB included (Long Form)
Made in USA flag with black text below
 Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip), U.S. Navy NAVSEA NSI 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others


DeFelsko Surface Profile Gages for Blasted Steel, Textured Coatings, and Concrete Profile | Positector SPG General Information

 Standard Models
 Includes ALL features as shown on left plus...

- NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

 Advanced Models
 Includes ALL features as shown on left plus...
- NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
- SmartBatch™ allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17
- Live graphing of measurement data
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and. more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
    Simple
  • Fast measurement rate of over 50 readings per minute—ideal for quickly and accurately measuring large surfaces
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

    Durable

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable tips
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Rugged, indoor/outdoor instrument—ideal for field or shop use
  • Shock-absorbing protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

    Accurate

  • Certificate of Calibration showing traceability to PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Glass Zero Plate and metal check shim included
  • Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17

    Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • 30º angle interchangeable probe tip available for special surface profile applications

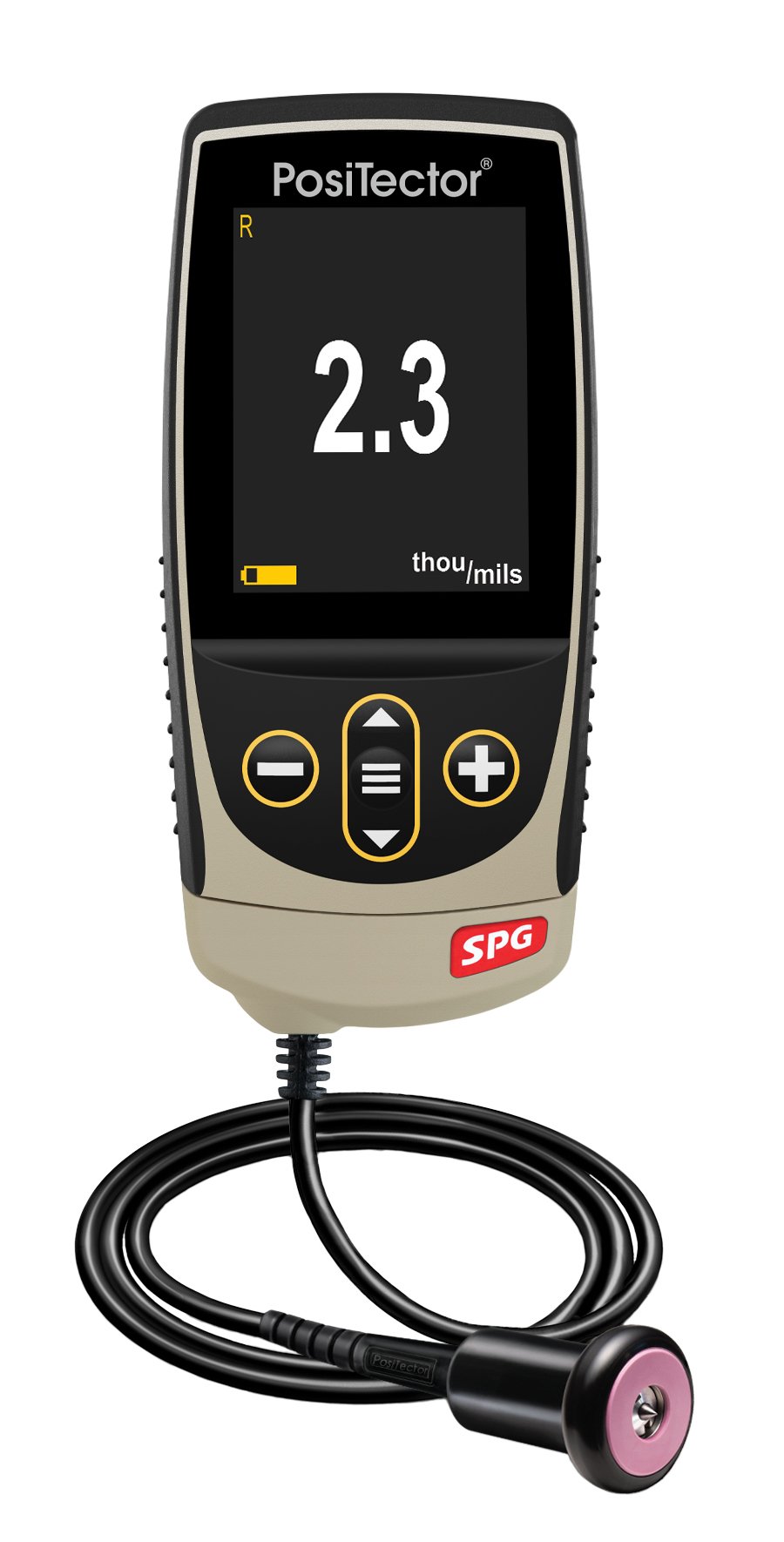

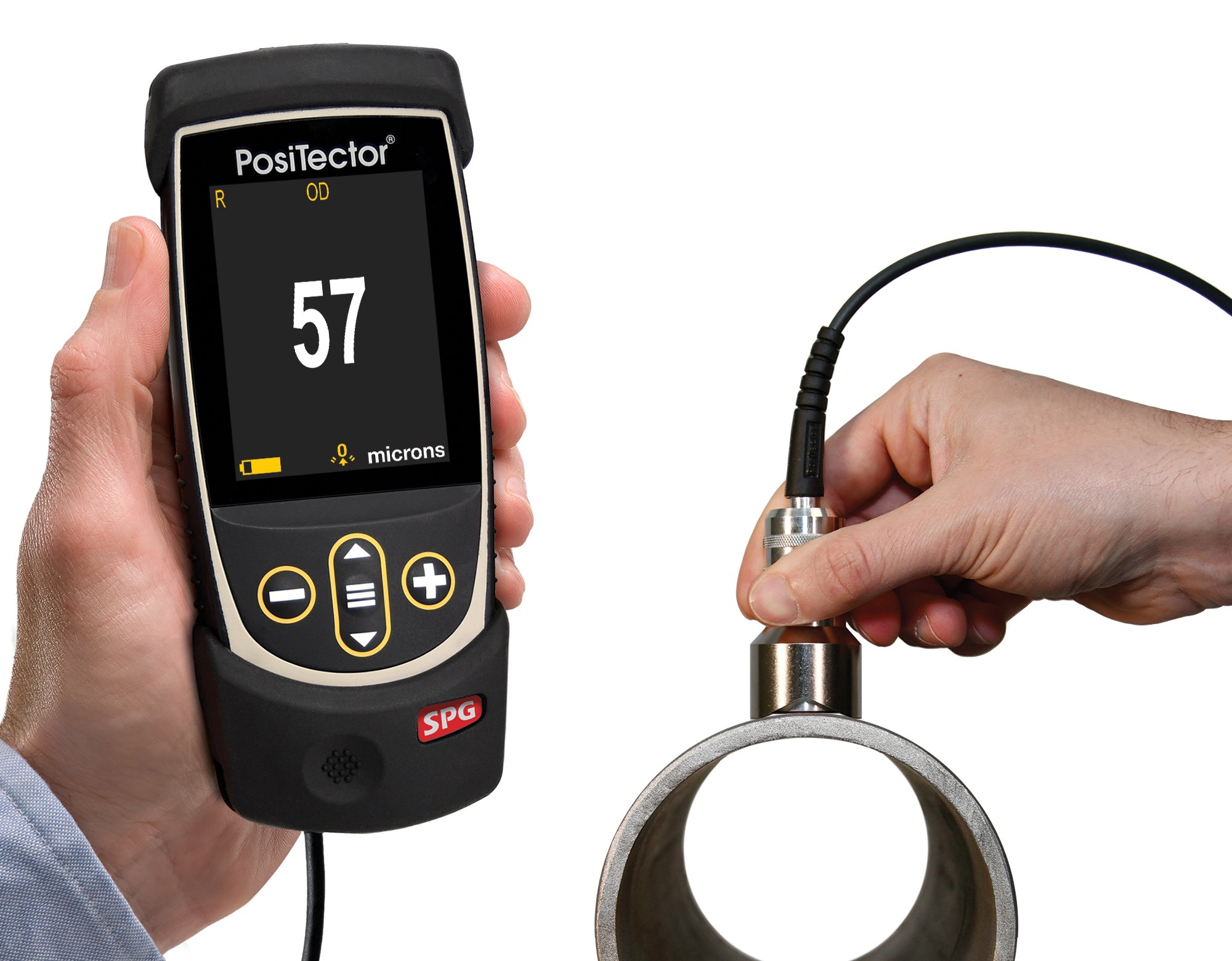

  • Cabled probes available for blasted steel, textured coatings, and concrete profile
  • NEW Auto rotating display with Flip Lock
  • Selectable display languages
  • Mils/Microns switchable

    Powerful
  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Includes PosiSoft Software for viewing and reporting data
  • Software Updates via web keep your gage current
