- Patented lighting system ensures homogeneous light distribution
- Flexible positioning of illumination cassettes, three different light spectra, individually selectable
- Pressure humidification with fast response times

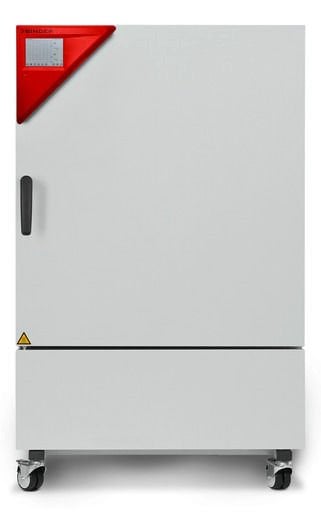

Binder Growth Chambers with Light and Humidity | KBWF 240
The BINDER climate chamber with illumination of the KBW series achieves homogeneous light distribution with its natural illumination. That allows this climate chamber to create constant lighting and temperature conditions.
Binder Growth Chambers with Light and Humidity | KBWF 240 General Information
- Temperature range: 0 °C to +70 °C
- Temperature range with light: +10 °C to +60 °C
- Humidity range: 10 % to 80 % RH
- 2 positionable illumination cassettes, each with 5 fluorescent tubes
- APT.line™ preheating chamber technology
- Adjustable fan speed
- Humidity regulation with capacitative humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Display via color LCD monitor
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating

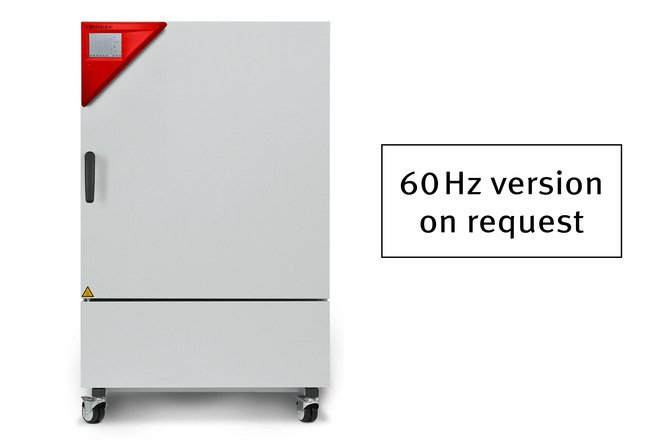

- 60 Hz version on request
Binder Growth Chambers with Light and Humidity | KBWF 240 Specifications
Data
| Designation | KBWF240-230V |
| Article Number | 9020-0336 |
| Option model |
Standard |
| Designation | KBWF240-230V |
| Temperature range without illumination cassettes | 0...70 °C |
| Temperature range with 100% illumination | 20...60 °C |
| Max. heat compensation at 40°C with illumination | 400 W |
Performance Data Climate
| Designatio | KBWF240-230V |
| Temperature range with humidity and without illumination cassettes | 10...70 °C |
| Temperature range with humidity and 100% illumination | 20...60 °C |
| Humidity range without illumination cassettes | 10...80 % RH |
| Humidity range with 100% illumination | ...75 % RH |
Lightdata per Illumination Cassettes
| Designation | KBW240-230V |
| Daylight tubes | 24 W/m² |
| Daylight tubes | 9000 lx |
| Fluora® growth lamps | 7500 lx |
| Arabidopsis lamps | 11000 lx |
Electrical Data
| Designation | KBWF240-230V |
| Rated Voltage | 200...240 V |
| Power frequency | 50 Hz |
| Nominal power | 2,4 kW |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 1~ |
Measures
| Designation | KBWF240-230V |
| Interior volume | 247 L |
| Net weight of the unit (empty) | 214 kg |
| Load per rack | 30 kg |
| Permitted load | 100 kg |
| Wall clearance back | 100 mm |
| Wall clearance sidewise | 100 mm |

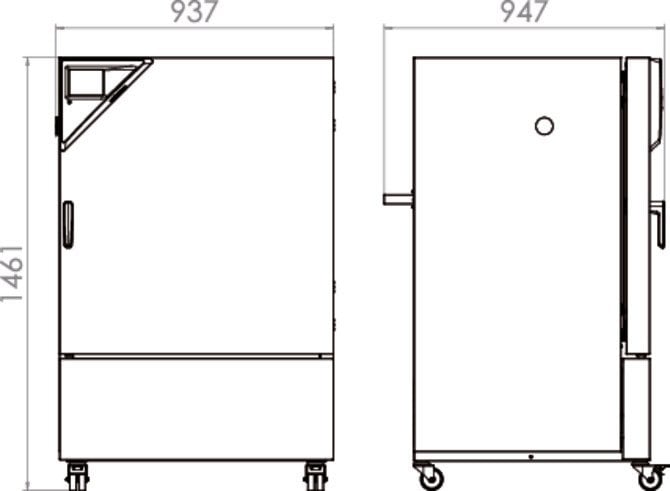

Housing dimensions not incl. fittings and connections
| Designation | KBW240-230V |
| Width net | 925 mm |
| Height net | 1,465 mm |
| Depth net | 800 mm |
| Designation | KBW240-230V |
| Interior width | 650 mm |
| Interior height | 785 mm |
| Interior depth | 485 mm |
| Inner doors | 1 |
| Unit doors | 1 |
| Designation | KBW240-230V |
| Sound-pressure level | 53 dB(A) |
| Energy consumption at 37°C and with illumination | 760 Wh/h |
| Designation | KBW240-230V |
| Number of shelves (std./max.) | 2/7 |
| Number of illumination cassettes (std./max.) | 2/2 |
