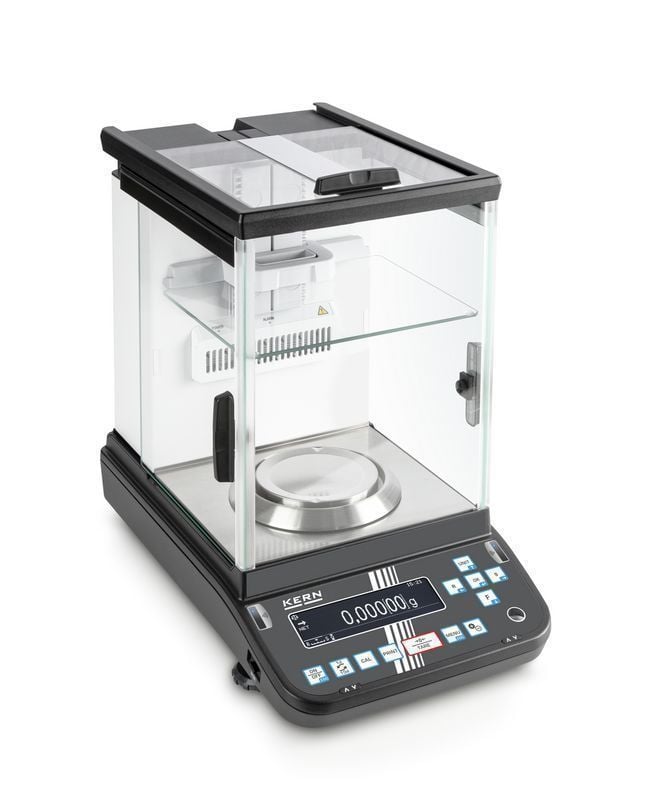

Kern Analytical Balance | ABP 200-5DAM
Premium analytical balance with the latest Single-Cell Generation for extremely rapid, stable weighing results
- NEW: with 3 automatic sliding doors, which can be opened and closed using sensors, and integrated ioniser as standard.
NEW: Thanks to the Memory Function, the balance stores how far the sliding doors have been opened. This prevents contamination and accelerates processes. Touching the sliding doors “gently” activates the push function and the doors open and shut automatically. The adjustable internal draught shield guarantees maximum stability of the weight readings.
- This new generation of analytical balances combines the highest level of precision with large weighing ranges. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. Together with the intuitively structured menu, this means that you can work efficiently and rapidly.
- Navigation pad for super quick navigating through the menus.
- Automatic internal adjustment in the case of a change in temperature ≥ 1 °C or timecontrolled every 4 h, guarantees high degree of accuracy and makes the balance independent of its location of use.
- The minimum weight of sample can be manually stored in the device or automatically calculated. For weighings below this value, the balance issues a warning message.
- Dosage aid: High stability mode and other filter settings can be selected.
- Simple recipe weighing and documenting with a combined tare/print function. In addition, the ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight.
- Individual user settings can be stored for up to 10 users: user name/number (can be printed out or added to the record for each process), password, menu language, user profiles, accessing user settings via barcode, additional guest mode for users who are not logged in, authorizations, eg. B. balance adjustment, changing settings or conditioning or modification of a recipe only by the authorized person & performing the formulation by the user.
- RS-232 data interfaces and USB (device) for transferring weighing data and USB (host) to connect a USB keyboard for easy capture of item numbers, recipes, for easier navigation within the menu etc.
- U.S. FDA 21 Part 11: assists you in data integrity in accordance with U.S. FDA 21 Part 11. (for example weighing result, sample ID, user name, scales ID, ...)
- Menu languages DE, EN.
- Automatic data output to the PC/printer each time the balance is steady.
- Large glass draught shield with 3 sliding doors for easy access to the items being weighed.
- Multi-function weighing plate included with delivery, minimises the effect of currents of air in the weighing chamber and therefore significantly improves the stabilisation time and repeatability. In addition samples, sample paper, PCR containers, micro centrifuge tubes and many other items which protrude can be easily fixed in place and weighed easily.
- Protective working cover included with delivery.
Kern Analytical Balance | ABP 200-5DAM Technical Data
| Weighing capacity [Max] | 102 g; 220 g |
| Readability [d] | 0,00001 g; 0,0001 g |
| Verification scale interval [e] | 0,001 g; 0,001 g |
| Units | g, mg, ct |
| Conformity assessment possible ex works | |
| Minimum weight [Min] | 0,001 g |
| Linearity | ± 0,0001 g; 0,0002 g |
| Reproducibility | 0,00005 g; 0,0001 g |
| Stabilization time | 8 s; 2 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 100 mg |
| Interfaces | RS-232 standard, USB-Host/Master, USB-Device |
| Adjustment options | Internal calibration (automatic), Adjusting with internal weight (manual) |
| Ambient temperature | 10 °C – 30 °C |
| Dimensions weighing surface (Ø) | 91 mm |
| Material draught shield | glass |
| Material housing | cast aluminium, plastic |
| Dimension housing (W×D×H) | 220×370×350 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 8 kg |
| Construction type of the scale | Multi-division balance |
