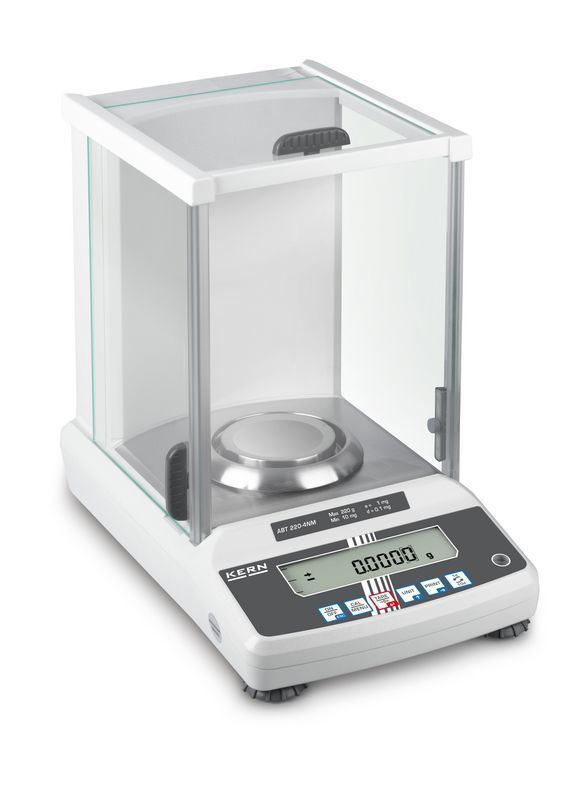

Kern Analytical Balance | ABT 120-5DNM
The premium model with single-cell weighing system.
- Automatic internal adjustment in the case of a change in temperature ≥ 0,5 °C or timecontrolled every 4 h, guarantees high degree of accuracy and makes the balance independent of its location of use.
- Dosage aid: High stability mode and other filter settings can be selected.
- Simple recipe weighing and documenting with a combined tare/print function. In addition, the ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight.
- Identification number: 4 digits, printed on calibration protocol freely programmable.
- Printout of a GLP-compliant calibration report conveniently at the touch of a button.
- Automatic data output to the PC/printer each time the balance is steady.
- Large glass draught shield with 3 sliding doors for easy access to the items being weighed.
- Protective working cover included with delivery.
Kern Analytical Balance | ABT 120-5DNM Technical Data
| Weighing capacity [Max] | 42 g; 120 g |
| Readability [d] | 0,00001 g; 0,0001 g |
| Verification scale interval [e] | 0,001 g; 0,001 g |
| Units | g, ct |
| Conformity assessment possible ex works | |
| Minimum weight [Min] | 0,001 g |
| Linearity | ± 0,00003 g; 0,0002 g |
| Reproducibility | 0,00002 g; 0,0001 g |
| Stabilization time | 10 s; 4 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 40 mg |
| Interfaces | RS-232 standard |
| Adjustment options | Adjusting with external weight, Internal calibration (automatic), Adjusting with internal weight (manual) |
| Ambient temperature | 10 °C – 30 °C |
| Dimensions weighing surface (Ø) | 80 mm |
| Material draught shield | glass |
| Material housing | metal |
| Dimension housing (W×D×H) | 215×340×335 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 8 kg |
| Construction type of the scale | Multi-range balance |
