STANDARD

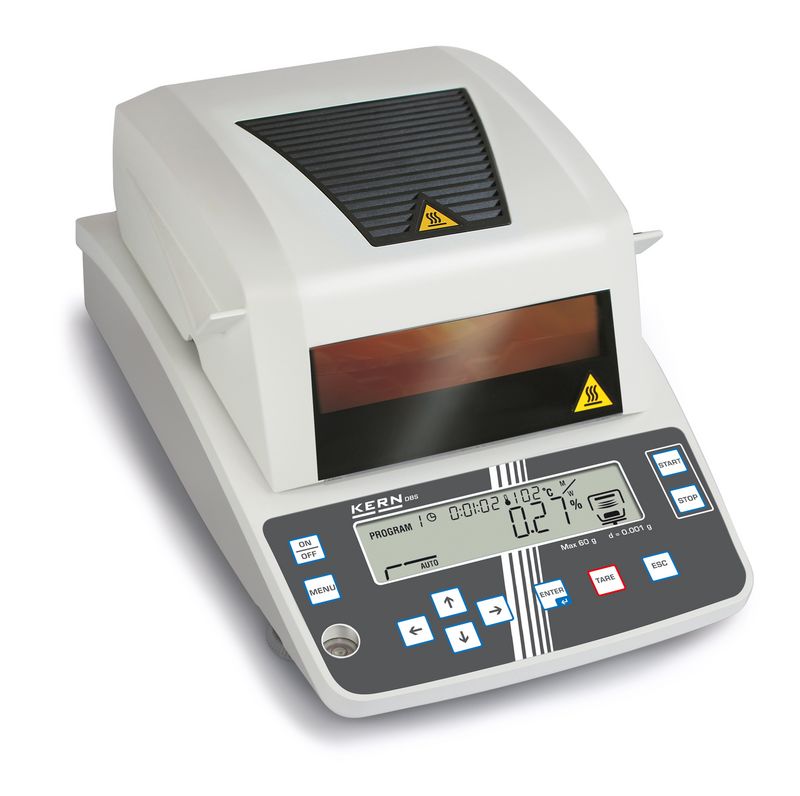

Kern Moisture Analyser | DBS 60-3
Moisture analyser with high-quality single-cell weighing system for outstanding stability, reliability and response speed.
- Tip: Suitable for samples with low moisture content, e.g. plastics.
- Backlit graphic display, digit height 15 mm
[[1]] Active drying process
[[2]] Previous drying time
[[3]] Current temperature
[[4]] Unit for displaying the results
[[5]] Current moisture content in %
[[6]] Active heating profile
- 400 W halogen-quartz glass heater
- Excellent temperature control thanks to halogen technology, suitable for temperature-sensitive samples.
- Internal memory for automatic sequence of 10 complete drying processes and 100 drying processes carried out.
- The last value measured remains on the display until it is replaced by a new measurement.
- Password protection to prevent manipulation of stored settings, data, etc.
- Sample description for up to 99 samples, 2 digits, freely programmable, and is printed in the measuring protocol.
- Date and time display as standard.
- USB data interface for transferring weighing data to the PC, printer etc.
- 50 sample plates included.
- Protective working cover included with delivery.
- Application handbook: In the download centre you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser.
Kern Moisture Analyser | DBS 60-3 Technical Data
| Weighing capacity [Max] | 60 g |
| Readability [d] | 0,001 g |
| Weighing system | Single-Cell |
| Temperature [Min] (°C) | 50 °C |
| Temperature [Max] (°C) | 200 °C |
| Stabilization time | 3 s |
| Units | g, % Humidity, % Dry mass, % ATRO |
| Reproducibility | 0,001 g |
| Linearity | ± 0,003 g |
| Readability moisture [d] (%) | 0,01% |
| Drying modes | Standard drying, Rapid drying, Gentle drying, Drying in levels |
| Switch-off criteria | time controlled, automatic, manual |
| Product group | Moisture analyser |
