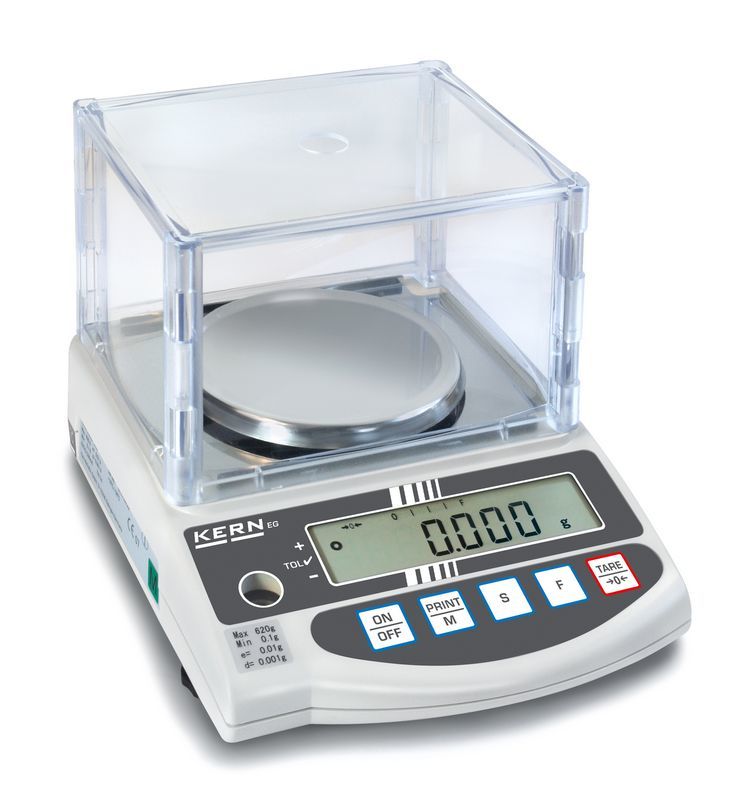

Kern Precision Balance | EW 620-3NM
The classic balance with robust tuning fork measuring system.
- Adjusting program CAL for quick setting of the balance accuracy using an external test weight at an additional price, see test weights.
- Stable temperature behaviour.
- Short stabilisation time.
- Shock proof construction.
- High corner load performance.
- Totalising of pieces when counting.
- Draught shield standard, weighing space W×D×H 158×130×78 mm.
- Protective working cover included with delivery.
Kern Precision Balance | EW 620-3NM Technical Data
| Weighing capacity [Max] | 620 g |
| Readability [d] | 0,001 g |
| Units | g, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, tol |
| Linearity | ± 0,003 g |
| Reproducibility | 0,001 g |
| Stabilization time | 2 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 2 g |
| Interfaces | RS-232 standard |
| Adjustment options | Adjusting with external weight |
| Recommended adjusting weight | 500 g (E2) |
| Ambient temperature | 10 °C – 30 °C |
| Dimensions weighing surface (Ø) | 118 mm |
| Material draught shield | plastic |
| Material housing | plastic |
| Dimension housing (W×D×H) | 180×235×75 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 1,4 kg |
| Construction type of the scale | Single-range balance |
