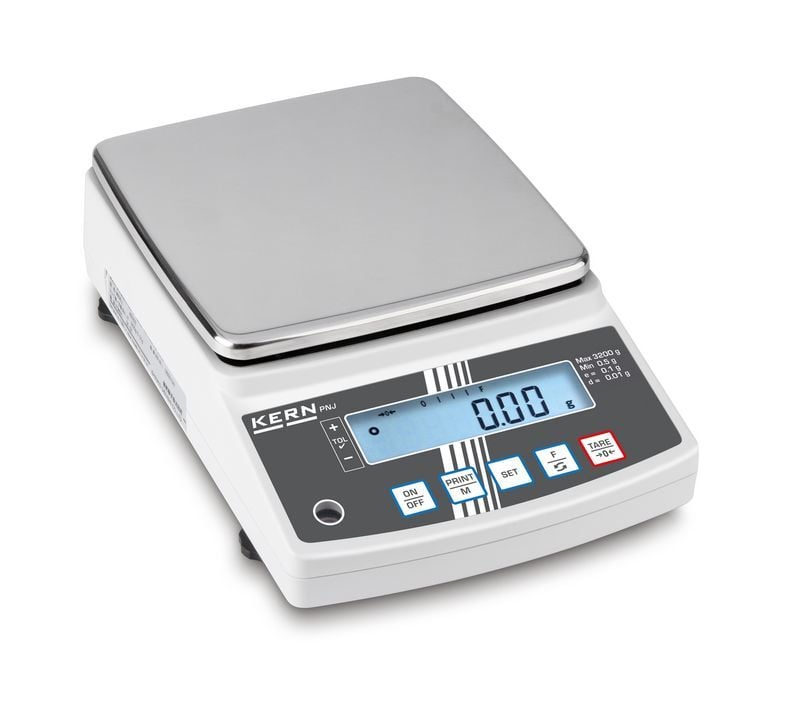

Kern Precision Balance | PNJ 3000-2M
The new standard in the laboratory with robust tuning fork weighing system.
- Automatic internal adjustment, guarantees high degree of accuracy and makes the balance independent of its location of use Ideal for applications which require verification, such as gold and jewellery purchasing.
- High-quality tuning fork weighing system for rapid display of the weight, very precise dispensing and a high level of mechanical robustness.
- Capacity display: A bargraph display lights up to show how much of the weighing range is still available.
- Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value.
- Compact size, practical for small spaces.
- Large, shock proof weighing plate made of stainless steel.
- Protective working cover included with delivery.
Kern Precision Balance | PNJ 3000-2M Technical Data
| Weighing capacity [Max] | 3200 g |
| Readability [d] | 0,01 g |
| Verification scale interval [e] | 0,1 g |
| Units | g, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, tol |
| Conformity assessment possible ex works | |
| Minimum weight [Min] | 0,5 g |
| Linearity | ± 0,02 g |
| Reproducibility | 0,01 g |
| Stabilization time | 3 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 20 g |
| Interfaces | RS-232 standard |
| Adjustment options | Internal calibration (automatic) |
| Ambient temperature | 5 °C – 40 °C |
| Dimensions weighing surface (W×D) | 190×190 mm |
| Material housing | plastic |
| Dimension housing (W×D×H) | 196×293×89 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 3,6 kg |
| Construction type of the scale | Single-range balance |
