Kern Precision Balance | PWS 800-2
High-resolution precision balance made of stainless steel with IP protection.
- High-quality tuning fork weighing system for rapid display of the weight, very precise dispensing and a high level of mechanical robustness.
- Thanks to the stainless steel design of the housing and platform with smooth surface, the scale is rust-free and easy to clean.
- IP65 dust and spray protection (in accordance with EN 60529).
- Level indicator and levelling feet for precise levelling of the scale, fitted as standard.
- RS-232 data interface for connection to a printer as standard.
Kern Precision Balance | PWS 800-2 Technical Data
| Weighing capacity [Max] | 820 g |
| Readability [d] | 0,01 g |
| Units | kg, g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, tol |
| Linearity | ± 0,01 g |
| Reproducibility | 0,01 g |
| Stabilization time | 3 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 20 g |
| Interfaces | RS-232 standard |
| Adjustment options | Adjusting with external weight |
| Recommended adjusting weight | 200 g (F1); 500 g (F1) |
| Ambient temperature | 10 °C – 30 °C |
| Dimensions weighing surface (Ø) | 140 mm |
| Material housing | stainless steel |
| Dimension housing (W×D×H) | 310×205×85 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 3,0 kg |
| Construction type of the scale | Single-range balance |

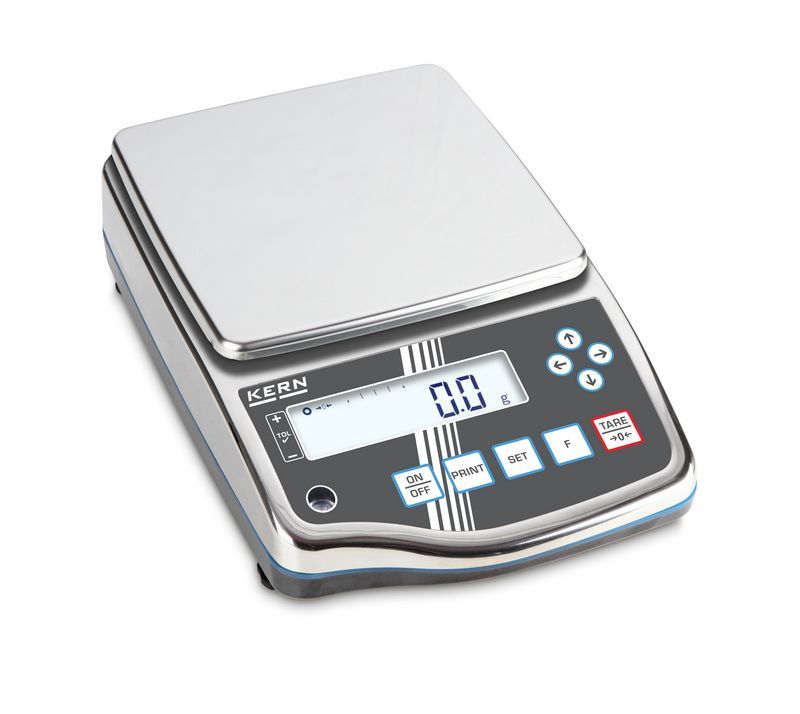

Kern Precision Balance | PWS 800-2 Images
