TESTO 300 NEXT LEVEL Longlife Kit 2 With Printer - Flue Gas Analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted) | TESTO 300
Stock Code
0564 3004 83
TESTO 300 NEXT LEVEL Longlife Kit 2 With Printer - Flue Gas Analyzer | TESTO 300
Carry out installation and maintenance work on heating systems several times a day using the flue gas analyzer with Longlife sensors. The TÜV-tested testo 300 NEXT LEVEL Longlife flue gas analyzer is supplied with O2 and CO H2-compensated sensor up to 30,000 ppm (NO - can be retrofitted), TÜV-tested modular flue gas probe, testo Bluetooth® Connector, testo Bluetooth® printer, case and practical accessories.
Your advantages
- Intuitive, smart, efficient: intuitive measurement menus, fast-response Smart-Touch operation, efficient, wireless parallel measurement of up to four testo Smart Probes, practical second screen function, on-site documentation, e-mailing of reports
- Including O2, CO H2-compensated sensor up to 30,000 ppm (NO sensor - can be retrofitted)
- High-quality sensor technology with up to 6 years' service life
- In the kit: testo 300 NEXT LEVEL Longlife flue gas analyzer, including O2 and CO H2-compensated sensor up to 30,000 ppm (NO - can be retrofitted), mains unit, modular flue gas probe, testo Bluetooth® Connector, spare dirt filters, testo Bluetooth® printer, spare thermal paper, EasyHeat software, case
TESTO 300 NEXT LEVEL Longlife Kit 2 With Printer - Flue Gas Analyzer | TESTO 300 Description
Differential Pressure flue gas Draught - Piezoresistive
Flue gas degree of effectivity, Eta (calculated)
Flue gas loss (calculated)
Flue gas CO₂ calculation (calculated from O₂)
Ambient CO
Differential Pressure 4 Pa measurement - Piezoresistive
TESTO 300 NEXT LEVEL Longlife Kit 2 With Printer - Flue Gas Analyzer | TESTO 300 Images

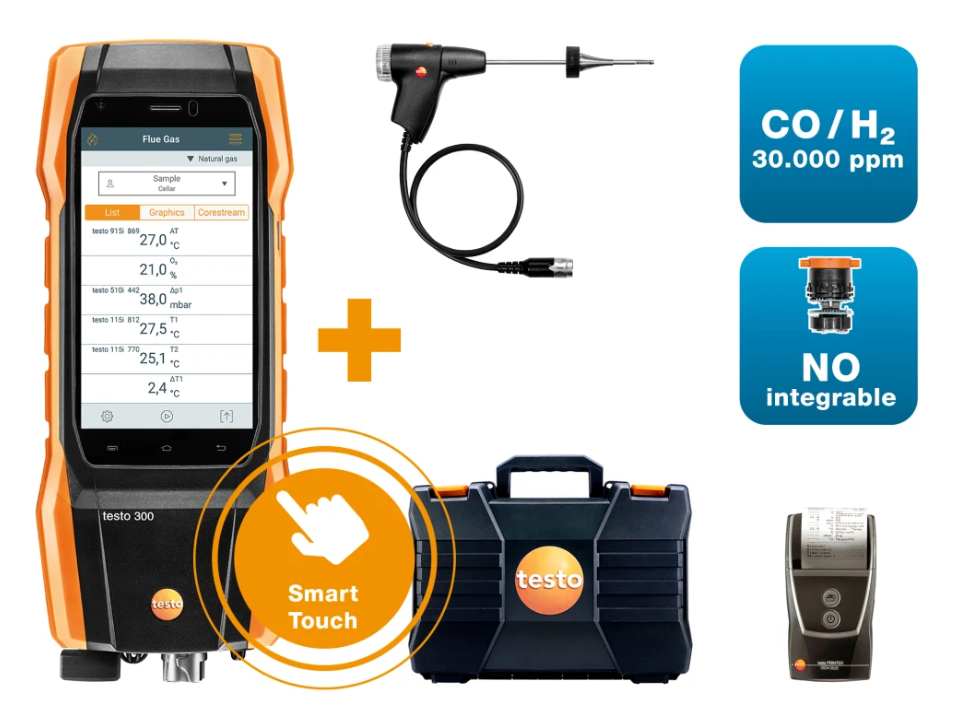

- testo 300 NEXT LEVEL Longlife flue gas analyzer with O2 and CO H2-compensated sensor up to 30,000 ppm, NO - can be retrofitted (0633 3004 83)
- USB mains unit, including cable (0554 1106)
- Modular flue gas probe 180 mm, Ø 8 mm, Tmax. 500°C; TÜV tested and certified; 2.2 m hose (0600 9760)
- testo Bluetooth® Connector (0554 3004)
- Spare dirt filters for modular flue gas probe; 10 off (0554 3385)
- BLUETOOTH®/IRDA printer, including 1 roll of thermal paper and rechargeable battery (0554 0621)
- Spare thermal paper for printer, indelible ink (0554 0568)
- Free download EasyHeat PC software (0554 3332)
- Instrument case (height: 130 mm) for instrument, probes and accessories (0516 3300)
TESTO 300 NEXT LEVEL Longlife Kit 2 With Printer - Flue Gas Analyzer | TESTO 300 Technical Data
Flue gas NO
Flue gas NolowGeneral technical data
| Operating humidity |
15 to 90 %RH non-condensing
|
|---|---|
| Weight |
approximately 800 g
|
| Dimensions |
244 (including probe connection) x 98 x 59 mm (LxWxH)
|
| Operating temperature |
-5 to +45 °C
|
| Protection class |
IP40
|
| Product colour |
black/orange
|
| Display type |
5.0" touch display, HD 1280*720 pixels, IPS (160 k)
|
| Power supply |
Rechargeable battery, USB mains unit
|
| Warranty conditions | |
| Authorizations |
TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
|
| Guarantee |
Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months
|
| Memory |
1,000,000 measuring values
|
| Storage battery type |
Lithium ion battery
|
| Battery life |
10 h
|
| Storage temperature |
-20 to +50 °C
|
| Charging temperature |
0 to +45 °C
|
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-40 to +1200 °C
|
|---|---|
| Accuracy |
±0.5 % of mv (Remaining Range)
±0.5 °C (0.0 to +100.0 °C)
|
| Resolution |
1 °C (Remaining Range)
0.1 °C (-40 to +999.9 °C)
|
Differential Pressure - Piezoresistive
| Measuring range |
-100 to +200 hPa
|
|---|---|
| Accuracy |
±1 % of mv (+50.1 to +100.0 hPa)
±0.5 hPa (0 to +50.0 hPa)
±1.5 % of mv (+100.1 to +200 hPa)
|
| Resolution |
0.01 hPa
|
Flue gas O₂
| Measuring range |
0 to 21 Vol.%
|
|---|---|
| Accuracy |
±0.2 Vol.%
|
| Resolution |
0.1 Vol.%
|
Flue gas COlow (with H₂-compensation)
| Measuring range |
0 to 500 ppm
|
|---|---|
| Accuracy |
±2 ppm (40 to +500 ppm)
±5 % of mv Remaining Range
|
| Resolution |
0.1 ppm
|
CO determination (with H₂-compensation), automatic dilution
| Measuring range |
0 to 30000 ppm
|
|---|---|
| Accuracy |
±100 ppm or ±10 % of mv
|
| Resolution |
1 ppm
|
Flue gas NO
| Measuring range |
0 to 3000 ppm
|
|---|---|
| Accuracy |
±5 ppm (0 to 100 ppm)
±5 % of mv (101 to 2000 ppm)
±10 % of mv (2001 to 3000 ppm)
|
| Resolution |
1 ppm
|
| Measuring range |
0 to 300 ppm
|
|---|---|
| Accuracy |
±5 % of mv (40 to 300 ppm)
±2 ppm (0 to +39.9 ppm)
|
| Resolution |
0.1 ppm
|
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range |
-9.99 to +40 hPa
|
|---|---|
| Accuracy |
±0.02 hPa (0.1 to +3.00 hPa)
±1.5 % of mv (+3.01 to +40 hPa)
±0.005 hPa (0 to 0.1 hPa)
|
| Resolution |
0.001 hPa (0 to 0.1 hPa)
0.01 hPa (Remaining Range)
|
Flue gas degree of effectivity, Eta (calculated)
| Measuring range |
0 to 120 %
|
|---|---|
| Resolution |
0.1 %
|
Flue gas loss (calculated)
| Measuring range |
0 to 99.9 %
|
|---|---|
| Resolution |
0.1 %
|
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range |
Display range 0 to CO₂ max
|
|---|---|
| Accuracy |
±0.2 Vol.%
|
| Resolution |
0.1 Vol.%
|
Ambient CO
| Measuring range |
0 to 2000 ppm
|
|---|---|
| Accuracy |
±10 % of mv (101 to 2000 ppm)
±10 ppm (0 to 100 ppm)
|
| Resolution |
1 ppm
|
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring range |
-50 to +50 Pa
|
|---|---|
| Accuracy |
±0.3 Pa (< 10 Pa)
±3 % of mv (Remaining Range)
|
| Resolution |
0.1 Pa
|
