TESTO 440 Air Flow ComboKit 1 with Bluetooth®
Kit for carrying out measurements in ventilation ducts and at air outlets: The testo 440 air velocity and IAQ measuring instrument, the vane probe (Ø 100 mm) with Bluetooth® including temperature sensor and the hot wire probe including temperature sensor are all safely stowed away in the case. So you can get down to work straight away!
Your advantages
Kit for carrying out measurements in ventilation ducts and at air outlets: The testo 440 air velocity and IAQ measuring instrument, the vane probe (Ø 100 mm) with Bluetooth® including temperature sensor and the hot wire probe including temperature sensor are all safely stowed away in the case. So you can get down to work straight away!
Your advantages
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, humidity and temperature in ventilation ducts or at ventilation outlets
- Clever: hot wire probe with telescope (0.85 m) – combine the vane probe (Ø 100 mm) with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) as required
- Convenient: wireless probe, internal data storage and USB port for data export
- As multifaceted as your challenges themselves: the air velocity and IAQ measuring instrument can be expanded with a large portfolio of digital probes
TESTO 440 Air Flow ComboKit 1 with Bluetooth® Description
Delivery Scope
- testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
- Vane probe (Ø 100 mm) with Bluetooth® including temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth® handle); bracket for testovent measurement funnel, 4 x AA batteries and calibration protocol (0635 9431)
- Hot wire probe including temperature sensor with fixed cable (length 1.7 m) including temperature sensor, with telescope (can be extended to 0.85 m) and calibration protocol (0635 1032)
- Combi-case for testo 440 and multiple probes (0516 4401)
TESTO 440 Air Flow ComboKit 1 with Bluetooth® Data
Temperature - NTC
Temperature - TC Type K (NiCr-Ni)
General technical data

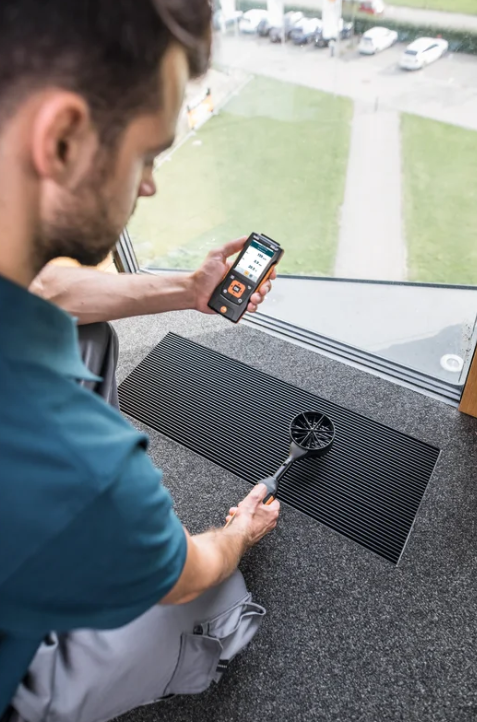

Vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor: for measurements at ceiling/air outlets and at plate outlets, ventilation grilles or swirl outlets – measuring range +0.3 to +35 m/s, -20 to +70 °C
Temperature - NTC
Velocity / Volume flow

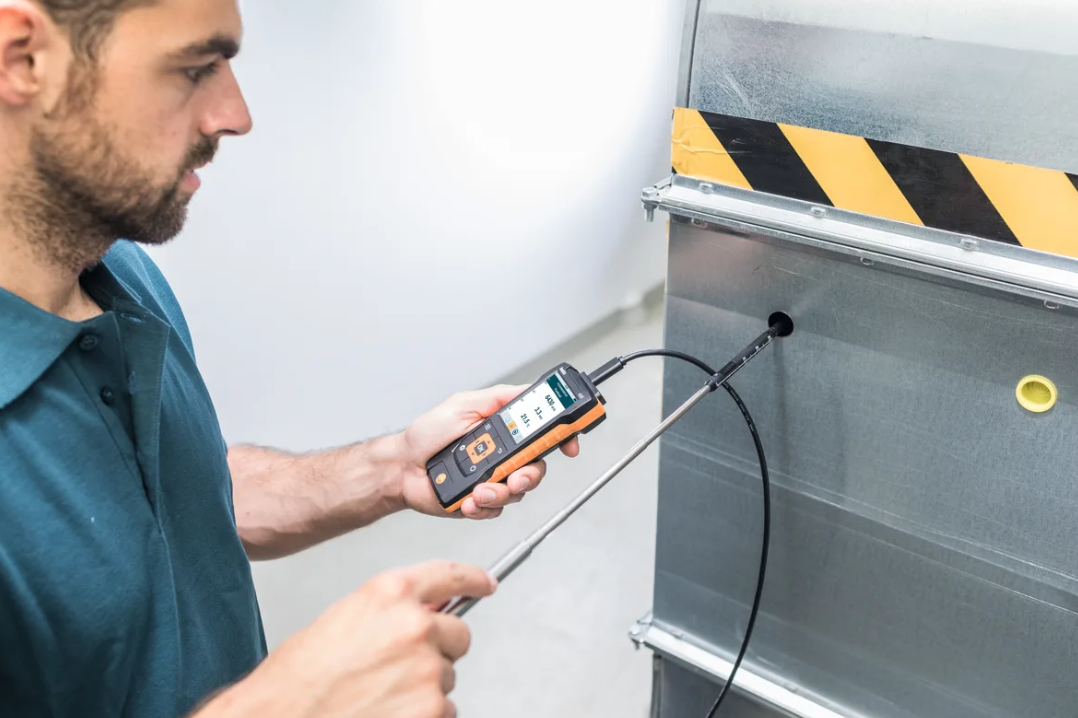

Hot wire probe (digital) including temperature sensor, wired: for measurements in ventilation ducts – measuring range 0 to 30 m/s, -20 to +70 °C
Tempereture-NTC
Absolute Pressure
General technical data
Temperature - NTC
| Measuring range |
-40 to +150 °C
|
|---|---|
| Accuracy |
±0.5 % of mv ±1 Digit (Remaining Range)
±0.4 °C ±1 Digit (+75 to +99.9 °C)
±0.2 °C ±1 Digit (-25 to +74.9 °C)
±0.4 °C ±1 Digit (-40 to -25.1 °C)
|
| Resolution |
0.1 °C
|
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-200 to +1370 °C
|
|---|---|
| Accuracy |
±(0.3 °C + 0.1 % of mv) ±1 Digit
|
| Resolution |
0.1 °C
|
General technical data
| Weight |
510 g (instrument)
|
|---|---|
| Dimensions |
210 x 95 x 39 mm ((LxWxH))
|
| Operating temperature |
-5 to +45 °C
|
| Product-/housing material |
Plastic
|
| Protection class |
IP40
|
| Connectable probes |
4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
|
| Product colour |
black/orange
|
| Camera image size |
Main camera: 8.0 MP; Front camera: 5.0 MP
|
| Battery life |
approx. 10 hrs continuous operation
|
| Display type |
5.0" touch display, HD 1280*720 pixels, IPS (160 k)
|
| Power supply |
Rechargeable li-ion battery (5550 mAh)
|
| Interface |
Bluetooth®; USB; WLAN
|
| Memory |
2 GB; 1,000,000 measuring values
|
| Storage temperature |
-20 to +60 °C
|
| *TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes. | |
Vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor: for measurements at ceiling/air outlets and at plate outlets, ventilation grilles or swirl outlets – measuring range +0.3 to +35 m/s, -20 to +70 °C
Temperature - NTC
| Measuring range |
-20 to +70 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Velocity / Volume flow
| Measuring range |
0.3 to 35 m/s
|
|---|---|
| Accuracy |
±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)
±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
|
| Resolution |
0.01 m/s
|
Hot wire probe (digital) including temperature sensor, wired: for measurements in ventilation ducts – measuring range 0 to 30 m/s, -20 to +70 °C
Tempereture-NTC
| Measuring range |
-20 to +70 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Absolute Pressure
| Measuring range |
+700 to +1100 hPa
|
|---|---|
| Accuracy |
±3.0 hPa
|
| Resolution |
0.1 hPa
|
General technical data
| Storage temperature |
-20 to +70 °C
|
|---|---|
| Weight |
90 g
|
| Dimensions |
315 x 12 x 12 mm
|
| Operating temperature |
-20 to +70 °C
|
| Cable length |
1.7 m
|
| Length telescope |
850 mm
|
| Probe head diameter |
9 mm
|
| Diameter telescope |
12 mm
|
| Product colour |
Black; silver
|
| Diameter probe shaft |
12 mm
|

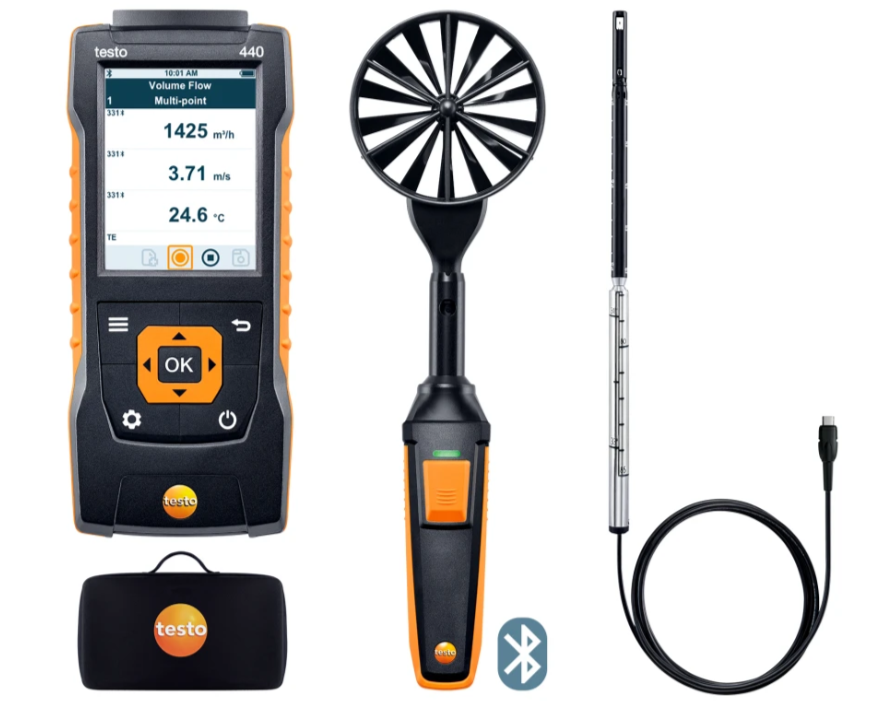

TESTO 440 Air Flow ComboKit 1 with Bluetooth® Image
