Stock Code
0590 7701

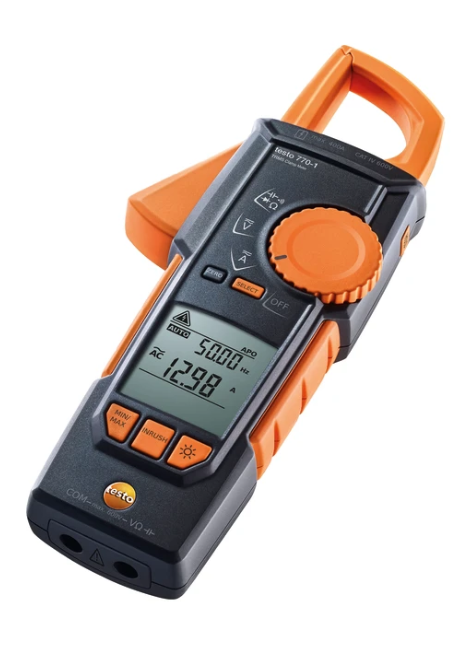

TESTO Clamp Meter | 770-1
Delivery Scope
The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.
Your advantages
- Fully retractable pincer arm for maximum flexibility
- Auto AC/DC
- Large two-line display
- Measures the common electrical parameters
TESTO Clamp Meter | 770-1 Description
The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings.
A voltage range of up to 1,000 V, a frequency range of up to 60 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).
Delivery Scope
testo 760-3 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010) and instruction manual.
TESTO Clamp Meter | 770-1 Technical Data
DC voltage
AC voltage
DC current
AC current
Resistance
Capacitance
Capacitance
General technical data
Instrument Measurement Functions
TESTO Clamp Meter | 770-1 Image
DC voltage
| Measuring range |
1.0 mV to 600.0 V
|
|---|---|
| Resolution |
max. 0.1 A
|
| Accuracy |
± (0.8 % of mv + 3 Digits)
|
AC voltage
| Measuring range |
1 mV to 600 V
|
|---|---|
| Resolution |
max. 1 mV
|
| Accuracy |
± (1.0 % of mv + 3 Digits)
|
DC current
| Measuring range |
0.1 to 400 A
|
|---|---|
| Resolution |
max. 0.1 A
|
| Accuracy |
± (2.0 % of mv + 5 Digits)
|
AC current
| Measuring range |
0.1 to 400 A
|
|---|---|
| Resolution |
max. 0.1 A
|
| Accuracy |
± (2.0 % of mv + 5 Digits)
|
Resistance
| Resolution |
max. 0.1 Ohm
|
|---|---|
| Measuring range |
0.1 Ohm to 40.00 MOhm
|
| Accuracy |
± (1.5 % of mv + 3 Digits)
|
Capacitance
| Resolution |
max. 0.01 nF
|
|---|---|
| Measuring range |
0.01 nF to 100.0 μF
|
| Accuracy |
max. ± (1.5 % of mv + 5 Digits)
|
Capacitance
| Resolution |
max. 0.001 nF
|
|---|---|
| Measuring range |
0.001 nF to 60 mF
|
| Accuracy |
max. ± (1.5 % of mv + 5 Digits)
|
General technical data
| Operating humidity |
0 to 80 %RH
|
|---|---|
| Weight |
378 g
|
| Dimensions |
249 x 96 x 44 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Standards |
EN 61326-1; EN 61010-2-032; EN 61140
|
| Battery type |
3 AAA micro batteries
|
| Display size |
2 lines
|
| Display type |
LCD (Liquid Crystal Display)
|
| Interface |
2 measuring jacks
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600V
|
| Authorizations |
CSA; CE
|
| Internal_resistance |
11 MOhm (AC / DC)
|
Instrument Measurement Functions
| Diode test |
yes
|
|---|---|
| Continuity testing |
yes
|
| Display ligthing |
yes
|
| Hold |
yes
|
| MinMax |
yes
|
| True RMS |
yes
|
| Inrush current measurement |
yes
|
| Display (counts) |
4,000
|
| Autom. measurement parameter detection |
yes
|
