Stock Code
0590 7703
TESTO Clamp Meter with Bluetooth® | 770-3
Delivery Scope
Non-contact measurement on tightly packed cables is really easy and reliable with the testo 770-3 clamp meter. Its innovative grab mechanism will make your work easy. The most powerful model in the clamp meter series, it offers lots of additional functions for those challenging tasks that you are faced with on a daily basis, e.g. communication with the testo smart app via Bluetooth.
Your advantages
- Easy to operate thanks to the fully retractable pincer arm
- Auto AC/DC and large two-line display
- Improved TRMS method
- Bluetooth connection to your smartphone (with the testo Smart App)
TESTO Clamp Meter with Bluetooth® | 770-3 Description

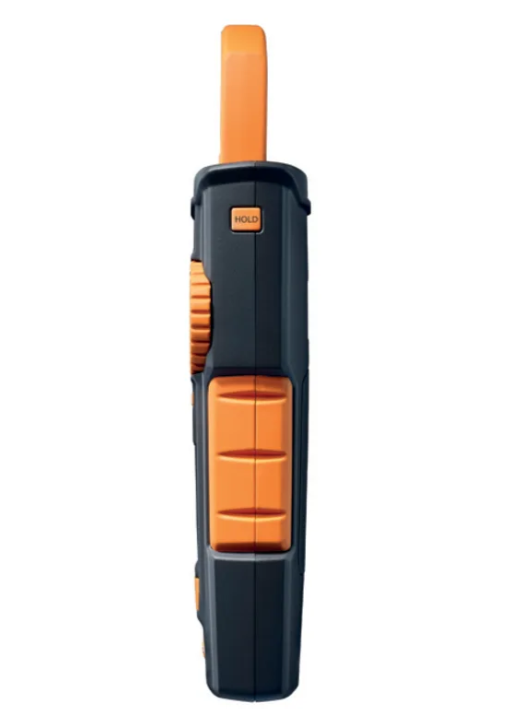

The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way.
In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and µA measurements. The optionally available temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately).
The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display. In addition to this, the testo 770-3 offers a performance measurement function and can be connected via Bluetooth to the testo Smart App. In the App, the measurement curve can be displayed as a graph on your smartphone/tablet and directly documented in the report.
Delivery Scope

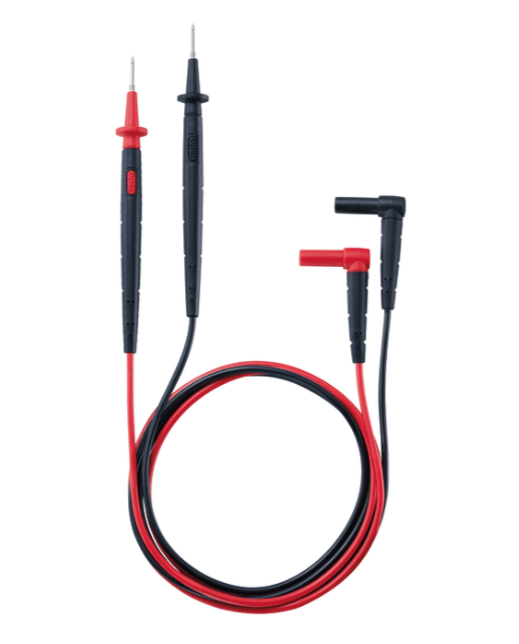

testo 770-3 TRMS clamp meter, including batteries, 1 set of measuring cables (0590 0010), instruction manual.
TESTO Clamp Meter with Bluetooth® | 770-3 Technical Data
Temperature - TC Type K (NiCr-Ni)
DC voltage
AC voltage
DC current
AC current
Resistance
Capacitance
Frequency
Active Power
Reactive Power
Apparent Power
Direct current DC Voltage
Power Factor
General technical data
Instrument Measurement Functions
TESTO Clamp Meter with Bluetooth® | 770-3 Image
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-20 to +500 °C
|
|---|---|
| Accuracy |
±1 °C (0 to +100 °C)
|
| Resolution |
0.2 °C
|
DC voltage
| Measuring range |
1.0 to 600.0 V
|
|---|---|
| Resolution |
max. 1 mV
|
| Accuracy |
± (0.8 % of mv + 3 Digit)
|
AC voltage
| Measuring range |
1.0 mV to 600.0 V
|
|---|---|
| Resolution |
max. 1 mV
|
| Accuracy |
± (1 % of mv + 3 Digit)
|
DC current
| Measuring range |
0.1 to 600.0 A (clamp)
0.1 to 600.0 μA (measuring cables)
|
|---|---|
| Resolution |
0.1 (clamp)
0.1 (measuring cables)
|
| Accuracy |
± (2 % of mv + 5 Digit) (measuring cables)
± (2 % of mv + 5 Digit) (clamp)
|
AC current
| Measuring range |
0.1 to 600.0 A (clamp)
0.1 to 600.0 μA (measuring cables)
|
|---|---|
| Resolution |
0.1 A (clamp)
0.1 μA (measuring cables)
|
| Accuracy |
± (2 % of mv + 5 Digit) (clamp)
± (1.5 % of mv + 5 Digit) (measuring cables)
|
Resistance
| Resolution |
max. 0.01 Ohm
|
|---|---|
| Measuring range |
0.01 to 60.0 MOhm
|
| Accuracy |
± (1.5 % of mv + 3 Digit)
|
Capacitance
| Resolution |
max. 0.01 nF
|
|---|---|
| Measuring range |
2 nF to 60.00 mF
|
| Accuracy |
± (1.5 % of mv + 5 Digit)
|
Frequency
| Resolution |
max. 0.1 Hz
|
|---|---|
| Measuring range |
0.01 Hz to 9999 kHz
|
| Accuracy |
± (1 % of mv + 1 Digit)
|
Active Power
| Measuring range |
0.1 W to 600 kW
|
|---|---|
| Accuracy |
± (5 % of mv + 5 Digit)
|
| Resolution |
0.1 W
|
Reactive Power
| Measuring range |
0.1 to 600.0 kvar
|
|---|---|
| Accuracy |
± (10 % of mv + 5 Digit)
|
| Resolution |
0.1 var
|
Apparent Power
| Measuring range |
0.1 VA to 600.0 kVA
|
|---|---|
| Accuracy |
± 1 Digit
|
| Resolution |
0.1 VA
|
Direct current DC Voltage
| Measuring range |
0.1 W to 600.0 kW
|
|---|---|
| Accuracy |
± 1 Digit
|
| Resolution |
max. 0.1 W
|
Power Factor
| Measuring range |
-1.00 to +1.00
|
|---|---|
| Accuracy |
± (10 % of mv + 5 Digit)
|
| Resolution |
0.01
|
General technical data
| Operating humidity |
0 to 80.0 %RH
|
|---|---|
| Weight |
378 g
|
| Dimensions |
249 x 96 x 43 mm
|
| Operating temperature |
-10 to +50 °C
|
| Connectable probes |
1 x temperature probe (adapter required for type K thermocouples)
|
| System requirements |
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
|
| Product colour |
Black
|
| Standards |
EN 61326-1; EN 61010-2-032; EN 61140
|
| Battery type |
3 AAA micro batteries
|
| Display type |
LCD (Liquid Crystal Display)
|
| Display size |
2 lines
|
| Interface |
2 measuring jacks
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600V; CAT III 1000V
|
| Authorizations |
CSA; CE
|
| Internal_resistance |
11 MOhm (AC / DC)
|
Instrument Measurement Functions
| Diode test |
yes
|
|---|---|
| Continuity testing |
yes
|
| Display ligthing |
yes
|
| Hold |
yes
|
| MinMax |
yes
|
| Power Measurement |
yes
|
| Temperature measurement with adapter |
yes
|
| True RMS |
yes
|
| Inrush current measurement |
yes
|
| Bluetooth |
yes
|
| Display (counts) |
6,000
|
| μA current measuring range |
yes
|
| Autom. measurement parameter detection |
yes
|
