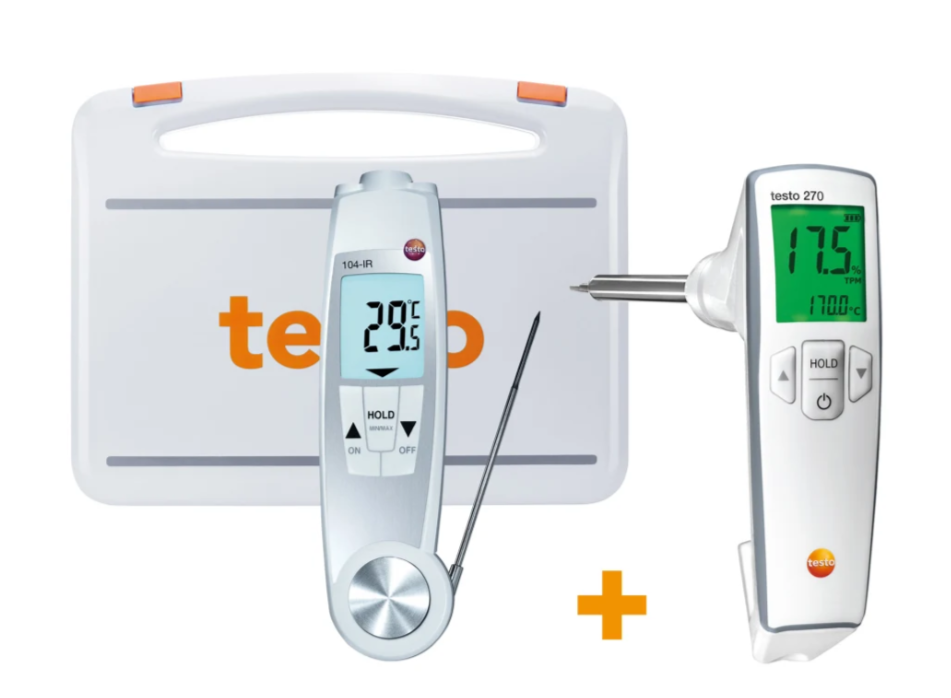

TESTO Cooking Oil-Temperature Kit
With this kit, you are excellently equipped to monitor cooking oil quality and temperature limit values. Thanks to their reliable measurement technology, the cooking oil tester testo 270 and the penetration/infrared thermometer testo 104-IR are competent partners for food inspection measurements.
Your Advantages
- Determine cooking oil quality easily and precisely with testo 270
- Incl. reference oil for adjusting the cooking oil tester on site
- Measure surface temperature and core temperature with testo 104-IR
- Washable case for hygienically stowing away at the application site
TESTO Cooking Oil-Temperature Kit Description
Delivery Scope
- 1 x testo 270 cooking oil tester incl. batteries, reference oil for cooking oil testers, testo 270 training card, calibration protocol and instruction manual
- 1 x testo 270 cooking oil tester incl. batteries, reference oil for cooking oil testers, testo 270 training card, calibration protocol and instruction manual
- 1 x testo 104-IR waterproof penetration/infrared thermometer incl. batteries, testo 104-IR training card and calibration protocol
- 1 x Transport case food small (0516 7302)
TESTO Cooking Oil-Temperature Kit Technical Data
testo 270 - cooking oil tester
Temperature-PTC
TPM - Capacitive
General technical data
testo 104-IR penetration/infrared thermometer
Temperature - NTC
Temperature - Infrared
General technical data
Transport case food small (340 x 60 x 270 mm)
General technical data
TESTO Cooking Oil-Temperature Kit Images
testo 270 - cooking oil tester
Temperature-PTC
| Measuring range |
+40 to +200 °C
|
|---|---|
| Accuracy |
±1.5 °C
|
| Resolution |
0.1 °C
|
TPM - Capacitive
| Measuring range |
0.0 to 40.0 % TPM
|
|---|---|
| Accuracy |
±2 % TPM (+40 to +190 °C)
*typically, based on Testo in-house reference, at an ambient temperature of 25 °C
|
| Resolution |
0.5 % TPM (+40 to +190 °C)
|
General technical data
| Operating humidity |
0 to +90 %RH
|
|---|---|
| Weight |
255 g
|
| Reaction time |
Approx. 30 s
|
| Dimensions |
170 x 50 x 300 mm ((LxWxH))
|
| Operating temperature |
0 to +50 °C
|
| Product-/housing material |
TPE/PC + ABS/PC + ABS + 10% GF
|
| Protection class |
IP65
|
| Product colour |
white
|
| Authorizations |
CE 2014/30/EU
|
| Length probe shaft |
175 mm
|
| Length probe shaft tip |
35 mm
|
| Diameter probe shaft |
11 mm
|
| Diameter probe shaft tip |
10 mm
|
| Alarm features |
Upper and lower TPM limit value freely adjustable, visual alarm via 3-colour display backlighting (green, orange, red), values and illumination flash in the display until the measurement is ended (Auto Hold)
|
| Battery type |
2 batteries type micro AAA 1.5 V (LR03)
|
| Battery life |
at 20 °C approx. 25 h continuous operation (corresponds to approx. 500 measurements ), without display lighting
|
| Display type |
LCD (Liquid Crystal Display)
|
| Display size |
2 lines
|
| Display ligthing |
backlite
|
| Storage temperature |
-20 to +70 °C
|
| Application temperature |
+40 to +200 °C
|
testo 104-IR penetration/infrared thermometer
Temperature - NTC
| Measuring range |
-50 to +250 °C
|
|---|---|
| Accuracy |
±1 °C (-50.0 to -30.1 °C)
±1 % of mv (Remaining Range)
±0.5 °C (-30.0 to +99.9 °C)
|
| Resolution |
0.1 °C
|
| Reaction time |
t₉₉ = 10 s (measured in moving liquid)
|
Temperature - Infrared
| Measuring range |
-30 to +250 °C
|
|---|---|
| Accuracy |
±1.5 °C or ±1.5 % of mv (Remaining Range)
±2.0 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)
|
| Measuring rate |
0.5 s
|
| Infrared resolution |
0.1 °C
|
General technical data
| Weight |
198 g (incl. batteries)
|
|---|---|
| Dimensions |
281 x 48 x 23 mm (Probe folded out)
178 x 48 x 23 mm (probe folded away)
|
| Operating temperature |
-20 to +50 °C
|
| Protection class |
IP65
|
| Length probe shaft tip |
32 mm
|
| Diameter probe shaft |
3 mm
|
| Diameter probe shaft tip |
2.5 mm
|
| Product-/housing material |
ABS / TPE / PC, diecast zinc, stainless steel
|
| Length probe shaft |
106 mm
|
| Product colour |
white
|
| Laser spot |
on / off
|
| Measurement value |
Temperature °C / °F / °R
|
| Measurement mode |
Hold or auto hold (immersion probe)
|
| Dimensions (probe folded out) |
281 x 48 x 23 mm
|
| Dimensions (probe not folded out) |
178 x 48 x 23 mm
|
| Standards |
EN 13485
|
| Battery type |
2 AAA micro batteries
|
| Battery life |
10 h at 25°C typical
|
| Display type |
LCD (Liquid Crystal Display)
|
| Display size |
one-line
|
| Display function |
with status line (°C,°F,°R, battery, hold/auto hold, min, max, laser, measurement, emissivity)
|
| Display ligthing |
illuminated
|
| Storage temperature |
-30 to +70 °C
|
Transport case food small (340 x 60 x 270 mm)
General technical data
| Dimensions |
340 x 60 x 270 mm ((LxWxH))
|
|---|---|
| Product-/housing material |
Plastic
|
| Product colour |
white
|
