Stock Code
0590 7551

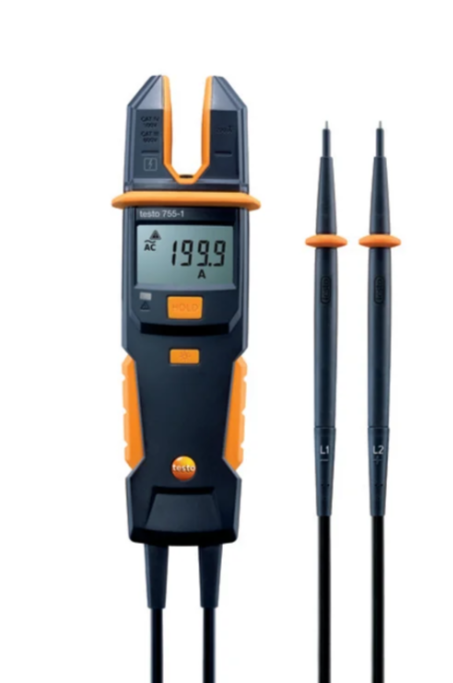

TESTO Current/Voltage Tester | 755-1
Measuring current with a voltage tester? The innovative testo 755-1 makes this possible – and is therefore suitable for virtually all daily electrical measuring tasks. The practical automated switch-on function and automatic measurement parameter detection also mean you can work more reliably than ever before with it.
Your advantages
- Easy, reliable operation through automatic measurement parameter detection
- DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
- Exchangeable measuring tips
- Suitable for almost all electrical measuring tasks
TESTO Current/Voltage Tester | 755-1 Description
The first voltage tester with current measurement is here: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure flow of current or current consumption and carry out continuity tests using a single instrument. In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection.
The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points.
The testo 755-1 current/voltage tester is a genuine allrounder which will make your day-to-day work easier.
Delivery Scope
testo 755-1 current/voltage tester, including batteries, measuring tips, measuring tip caps, calibration protocol and instruction manual.
TESTO Current/Voltage Tester | 755-1 Technical Data
DC voltage
AC voltage
AC current
Resistance
General technical data
Instrument Measurement Functions
TESTO Current/Voltage Tester | 755-1 Image
DC voltage
| Measuring range |
6 to 600 V
|
|---|---|
| Resolution |
0.1 V
|
| Accuracy |
50 to 600.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
|
AC voltage
| Measuring range |
6 to 600 V
|
|---|---|
| Resolution |
0.1 V
|
| Accuracy |
50 to 600.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
|
AC current
| Measuring range |
0.1 to 200 A
|
|---|---|
| Resolution |
0.1 A
|
| Accuracy |
± (3 % of mv + 3 Digits)
|
Resistance
| Measuring range |
30 Ohm to 100 kOhm
|
|---|---|
| Accuracy |
± (1 % of mv + 5 Digits)
|
General technical data
| Operating humidity |
0 to 75 %RH
|
|---|---|
| Weight |
320 g
|
| Dimensions |
199 x 62 x 40 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Display size |
one-line
|
| Display type |
LCD (Liquid Crystal Display)
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600V; CAT III 1000V
|
| Authorizations |
CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| Display ligthing |
yes
|
| Hold |
yes
|
| Measuring point illumination |
yes
|
| Display (counts) |
4,000
|
| Autom. measurement parameter detection |
yes
|
