Stock Code
0590 7552
TESTO Current/Voltage Tester | 755-2
All-in-one voltage tester and current measuring instrument: the innovative testo 755-2. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips and an extended voltage range up to 1,000 V.
Your advantages
- Simple, reliable operation with automatic selection of measurement parameters
- DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
- Single pole voltage testing to determine quickly whether conductors are live
- Voltage range up to 1,000 V
TESTO Current/Voltage Tester | 755-2 Description
With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity and measures flow of current along with current consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable.
Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V and enables rotating magnetic field measurement along with single pole voltage testing to determine quickly whether conductors are live.
Delivery Scope

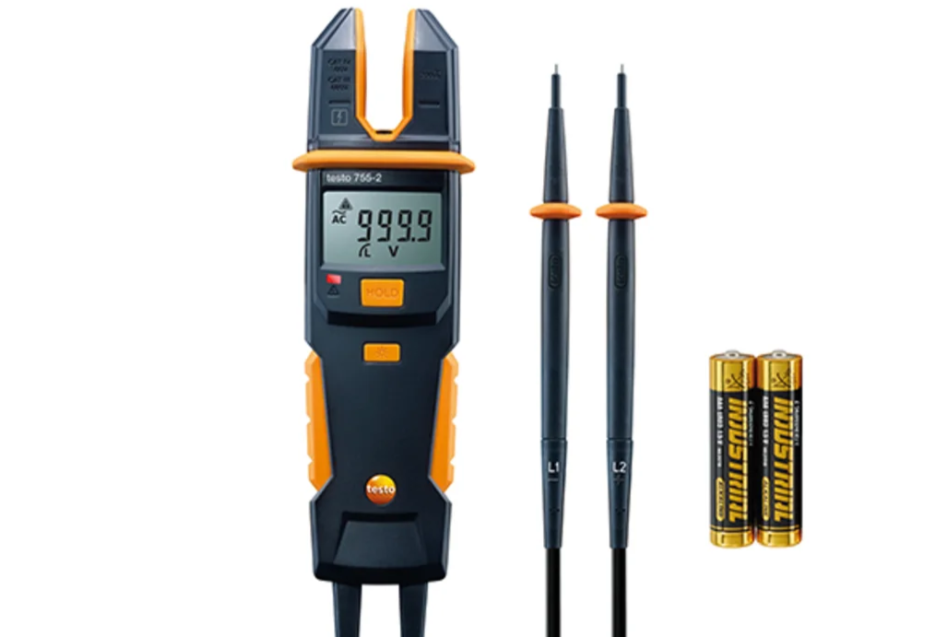

testo 755-2 current/voltage tester, including batteries, measuring tips, measuring tip caps, calibration protocol and instruction manual.
TESTO Current/Voltage Tester | 755-2 Technical Data
DC voltage
AC voltage
AC current
Resistance
General technical data
Instrument Measurement Functions
TESTO Current/Voltage Tester | 755-2 Image
DC voltage
| Measuring range |
6 to 1000 V
|
|---|---|
| Resolution |
0.1 V
|
| Accuracy |
50 to 1000.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
|
AC voltage
| Measuring range |
6 to 1000 V
|
|---|---|
| Resolution |
0.1 V
|
| Accuracy |
50 to 1000.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
|
AC current
| Measuring range |
0.1 to 200 A
|
|---|---|
| Resolution |
0.1 A
|
| Accuracy |
± (3 % of mv + 3 Digits)
|
Resistance
| Measuring range |
30 to 100 kOhm
|
|---|---|
| Accuracy |
± (1 % of mv + 5 Digits)
|
General technical data
| Operating humidity |
0 to 75 %RH
|
|---|---|
| Storage temperature |
-15 to +60 °C
|
| Weight |
320 g
|
| Dimensions |
199 x 62 x 40 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Display size |
one-line
|
| Display type |
LCD (Liquid Crystal Display)
|
| Overvoltage Category |
CAT IV 600V; CAT III 1000V
|
| Authorizations |
CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| Display ligthing |
yes
|
| Hold |
yes
|
| Rotating magnetic field testing |
yes
|
| Single pole phase testing |
yes
|
| Measuring point illumination |
yes
|
| Display (counts) |
4,000
|
| Autom. measurement parameter detection |
yes
|
TESTO Current/Voltage Tester | 755-2 Image
