0563 0417

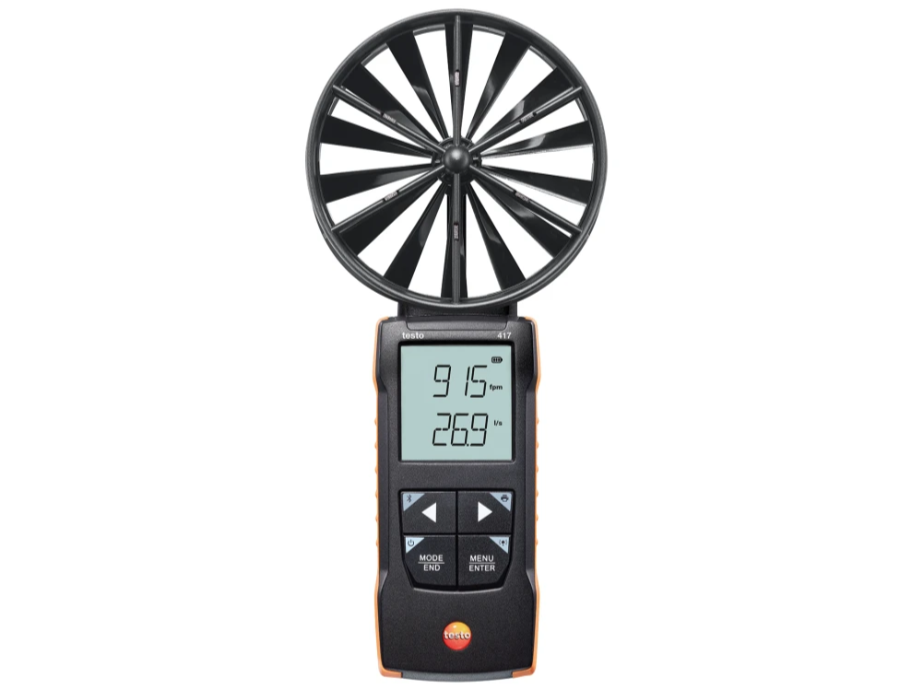

TESTO Digital 100 mm Vane Anemometer with App Connection | 417
Delivery Scope
The compact 100 mm vane anemometer testo 417 is the ideal solution for simple, fast and precise determination of flow velocity and volume flow at air intake and outlet vents of air conditioning and ventilation systems. Adjustment for balanced residential ventilation or measurement at swirl outlets is also child's play with the testo 417 kits including funnel and flow straightener. Thanks to the connection to the testo Smart App, configuration, display (also as second screen) and storage as well as documentation of the measured values are dealt with quickly and without any complications.
Your advantages
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
- Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
- Timed and point mean value calculation
TESTO Digital 100 mm Vane Anemometer with App Connection | 417 Description
The compact vane anemometer testo 417 was developed to make it as easy as possible for you to take measurements on air inlets and outlets of air conditioning and ventilation systems. The integrated 100 mm vane quickly ensures precise results. Time and point average values as well as the volume flow are automatically calculated in the instrument and shown on the display. This allows balanced residential ventilation systems to be adjusted particularly efficiently - including quick documentation with the testo Smart App. In addition, the App not only supports you in configuring the measuring instrument and takes over display, storage and documentation of the measured values – it also turns your smartphone into a second display. testo 417 is also available in two practical kits: The testo 417 Kit 1 includes two measuring funnels for plate outlets and ventilation grilles. These can be easily attached to the vane, covering a wide range of outlet sizes and formats. In addition to the two measuring funnels, the testo 417 Kit 2 includes a volume flow straightener to achieve precise results even at swirl diffusers.
Delivery Scope
- testo 417 - 100 mm vane anemometer with App connection
- Transport bag
- Calibration protocol
- 3 x AA batteries
TESTO Digital 100 mm Vane Anemometer with App Connection | 417 Technical Data
General Technical Data
Velocity - Vane
Volume flow
General technical data
TESTO Digital 100 mm Vane Anemometer with App Connection | 417 Images
General Technical Data
| Measuring range |
0 to +50 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Velocity - Vane
| Measuring range |
0.3 to 20 m/s
|
|---|---|
| Accuracy |
±(0.1 m/s + 1.5 % of mv)
|
| Resolution |
0.01 m/s
|
Volume flow
| Measuring range |
0 to +99999 m³/h
0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
|
|---|---|
| Resolution |
0.1 m³/h (0 to +100 )
1 m³/h (Remaining Range)
|
General technical data
| Weight |
243 g
|
|---|---|
| Dimensions |
236 x 108 x 45 mm
|
| Operating temperature |
-20 to +50 °C
|
| Product-/housing material |
ABS + PC / TPE
|
| Protection class |
IP40
IP20
|
| Battery life |
50 h
|
| Battery type |
3x AA
|
| Storage temperature |
-20 to +50 °C
|
