TESTO Digital 16 mm Vane Anemometer with App Connection | 416
Delivery Scope

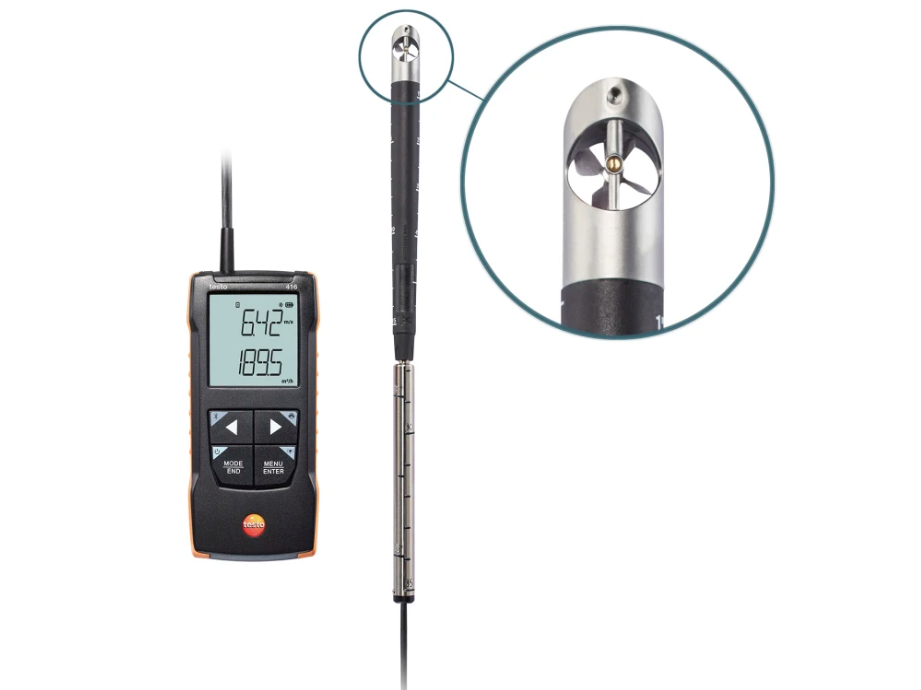

The compact 16 mm vane anemometer testo 416 with telescopic probe and App connection is ideal for simple, fast and precise determination of flow velocity and volume flow in ventilation ducts of air conditioning and ventilation systems. The connection to the testo Smart App enables configuration, display (also as second screen) and storage as well as documentation of the measured values directly in the App.
Your advantages
- Simple, fast and precise flow measurement and volume flow calculation in the ventilation duct
- More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 850 mm)
- Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
- Timed and point mean value calculation
TESTO Digital 16 mm Vane Anemometer with App Connection | 416 Description
With the compact 16 mm vane anemometer testo 416 with telescopic probe and App connection, you can carry out flow measurements in the ventilation ducts of air conditioning and ventilation systems easily, quickly and precisely. The integrated telescope can be extended up to 850 mm, making it easier to work overhead or in large diameter ducts. To ensure that you have all the relevant information at your fingertips, the testo 416 automatically calculates time and point average values as well as the volume flow rate. And thanks to the compact design and the robust housing, the vane anemometer can also stand it if conditions get a little rougher at times. Configuration of the measuring instrument, display and storage of measured values as well as documentation are all particularly convenient with the testo Smart App. This also turns your smartphone into a second display.
Delivery Scope
- testo 416 - 16 mm vane anemometer with App connection, fixed telescope (max. 850 mm)
- Transport bag
- Calibration protocol
- 3 x AA batteries
TESTO Digital 16 mm Vane Anemometer with App Connection | 416 Technical Data
Velocity - Vane
General technical data
TESTO Digital 16 mm Vane Anemometer with App Connection | 416 Images
Velocity - Vane
| Measuring range |
0.6 to 40 m/s
|
|---|---|
| Accuracy |
±(0.2 m/s + 1.0 % of mv)
|
| Resolution |
0.1 m/s
|
General technical data
| Weight |
323 g
|
|---|---|
| Dimensions |
135 x 60 x 28 mm
|
| Operating temperature |
Probe: -10 to +70 °C
-10 to +50 °C
|
| Product-/housing material |
ABS + PC / TPE
|
| Cable length |
1.5 m
|
| Diameter probe shaft |
16 mm
|
| Protection class |
IP40
IP20
|
| Length probe |
329 mm
|
| Battery life |
60 h
|
| Battery type |
3x AA
|
| Storage temperature |
-10 to +50 °C
|
