Stock Code
0590 7602
TESTO Digital Multimeter | 760-2
The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. You can also measure current in the µA range and determine the true root mean square using this digital multimeter.
Your advantages
- Easy, reliable work thanks to automatic measurement parameter detection
- Current measurement in the µA range
- True root mean square measurement - TRMS
- Low-pass filter for accurate measurement results on frequency converter controlled motors
TESTO Digital Multimeter | 760-2 Description
The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.
It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.
The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.
Delivery Scope
testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K and instruction manual.
TESTO Digital Multimeter | 760-2 Technical Data
Temperature - TC Type K (NiCr-Ni)
DC voltage
AC voltage
DC current
AC current
Resistance
Capacitance
Frequency
Active Power
Reactive Power
Apparent Power
Direct current DC Voltage
Power Factor
General technical data
Instrument Measurement Functions

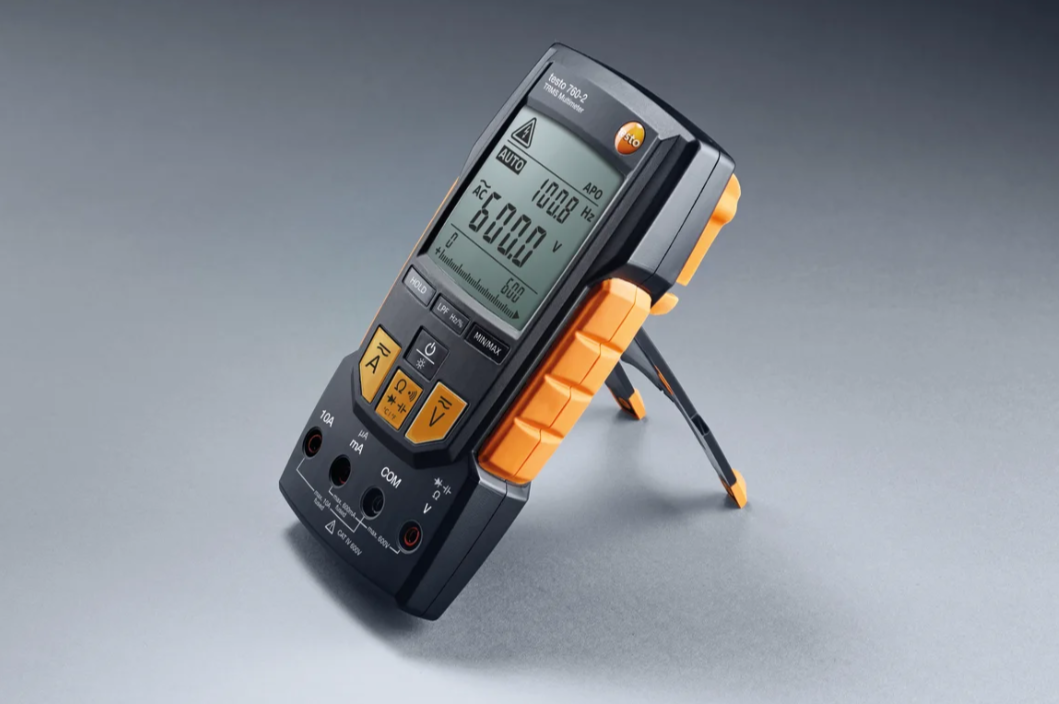

TESTO Digital Multimeter | 760-2 Image
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-20 to +500 °C
|
|---|---|
| Accuracy |
±1 °C (0 to +100 °C)
|
| Resolution |
0.2 °C
|
DC voltage
| Measuring range |
0.1 mV to 600 V
|
|---|---|
| Resolution |
max. 1.0 μA
|
| Accuracy |
± (0.8 % of mv + 3 Digits)
|
AC voltage
| Measuring range |
0.1 mV to 600 V
|
|---|---|
| Resolution |
max. 0.1 mV
|
| Accuracy |
± (1.0 % of mv + 3 Digits)
|
DC current
| Measuring range |
0.1 μA to 10 A
|
|---|---|
| Resolution |
max. 0.1 μA
|
| Accuracy |
± (1.5 % of mv + 5 Digits)
|
AC current
| Measuring range |
0.1 μA to 10 A
|
|---|---|
| Resolution |
max. 0.1 μA
|
| Accuracy |
± (1.5 % of mv + 5 Digits)
|
Resistance
| Resolution |
max. 0.01 Ohm
|
|---|---|
| Measuring range |
0.10 to 60.0 MOhm
|
| Accuracy |
± (1.5 % of mv + 3 Digit)
|
Capacitance
| Resolution |
max. 0.01 nF
|
|---|---|
| Measuring range |
0.001 μF to 60000.00 μF
|
| Accuracy |
± (1.5 % of mv + 5 Digit)
|
Frequency
| Resolution |
max. 0.1 Hz
|
|---|---|
| Measuring range |
0.00 Hz to -10 kHz
|
| Accuracy |
± (1 % of mv + 1 Digit)
|
Active Power
| Measuring range |
0.1 W to 600 kW
|
|---|---|
| Accuracy |
± (5 % of mv + 5 Digit)
|
| Resolution |
0.1 W
|
Reactive Power
| Measuring range |
0.1 to 600.0 kvar
|
|---|---|
| Accuracy |
± (10 % of mv + 5 Digit)
|
| Resolution |
0.1 var
|
Apparent Power
| Measuring range |
0.1 VA to 600.0 kVA
|
|---|---|
| Accuracy |
± 1 Digit
|
| Resolution |
0.1 VA
|
Direct current DC Voltage
| Measuring range |
0.1 W to 600.0 kW
|
|---|---|
| Accuracy |
± 1 Digit
|
| Resolution |
max. 0.1 W
|
Power Factor
| Measuring range |
-1.00 to +1.00
|
|---|---|
| Accuracy |
± (10 % of mv + 5 Digit)
|
| Resolution |
0.01
|
General technical data
| Operating humidity |
0 to 80.0 %RH
|
|---|---|
| Weight |
378 g
|
| Dimensions |
249 x 96 x 43 mm
|
| Operating temperature |
-10 to +50 °C
|
| Connectable probes |
1 x temperature probe (adapter required for type K thermocouples)
|
| Product colour |
Black
|
| System requirements |
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
|
| Standards |
EN 61326-1; EN 61010-2-032; EN 61140
|
| Battery type |
3 AAA micro batteries
|
| Display size |
2 lines
|
| Display type |
LCD (Liquid Crystal Display)
|
| Interface |
2 measuring jacks
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600V; CAT III 1000V
|
| Authorizations |
CSA; CE
|
| Internal_resistance |
11 MOhm (AC / DC)
|
Instrument Measurement Functions
| Diode test |
yes
|
|---|---|
| Continuity testing |
yes
|
| Display ligthing |
yes
|
| Hold |
yes
|
| MinMax |
yes
|
| Power Measurement |
yes
|
| Temperature measurement with adapter |
yes
|
| True RMS |
yes
|
| Inrush current measurement |
yes
|
| Bluetooth |
yes
|
| Display (counts) |
6,000
|
| Autom. measurement parameter detection |
yes
|
| μA current measuring range |
yes
|

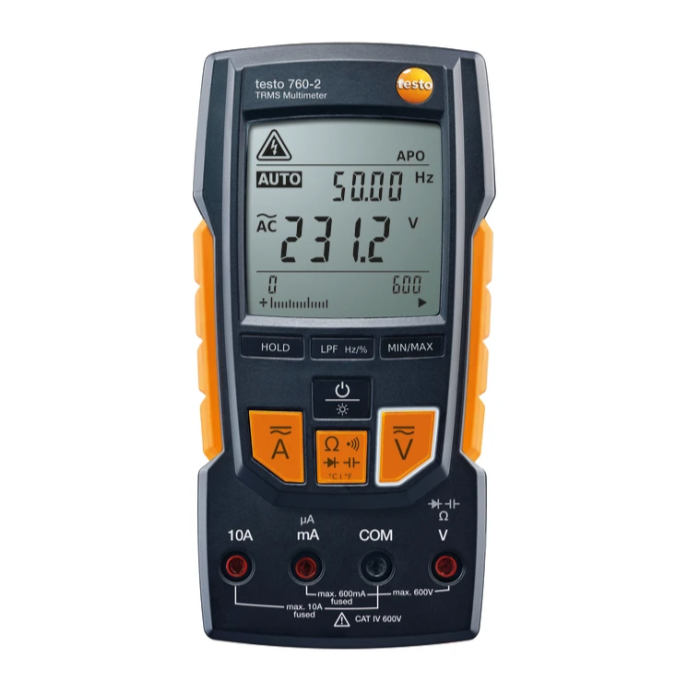

TESTO Digital Multimeter | 760-2 Image
