TESTO Digital Refrigerant Scale and Intelligent Valve with Bluetooth® | 560i
Advantages of the testo 560i refrigerant scale
Advantages of the refrigerant valve
Delivery Scope

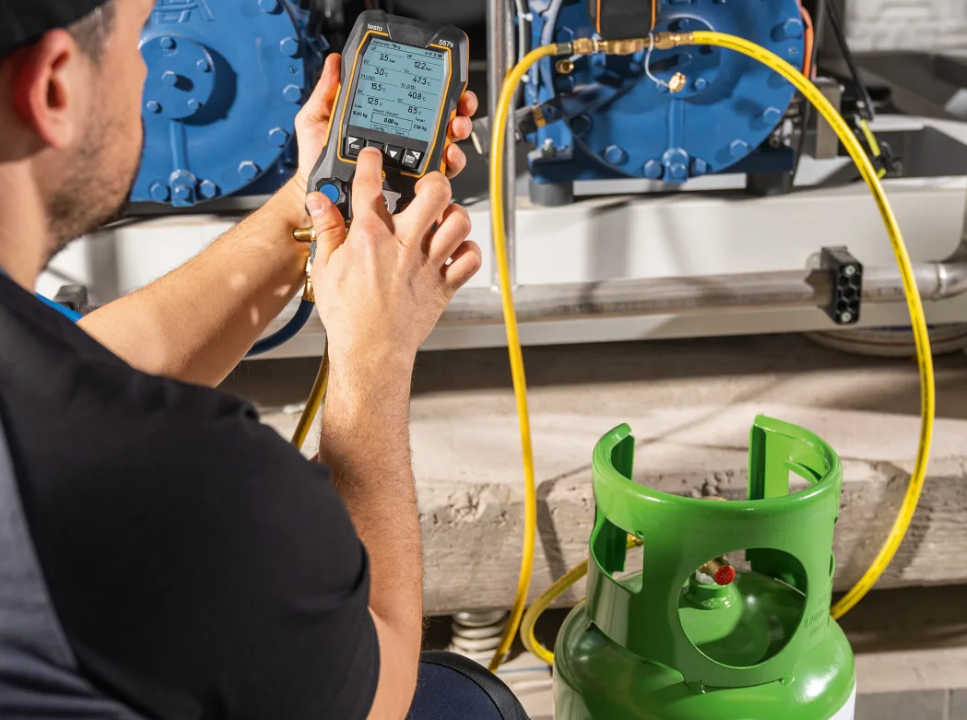

Charge refrigeration systems and heat pumps faster and more precisely: automatically with the testo 560i wireless refrigerant scale, the intelligent refrigerant valve, a digital manifold from Testo and/or the testo Smart App. Simply enter the charging program, target value for superheating, subcooling or weight in the manifold or App and the scale and valve will do the rest for you. Your benefits: Time saving and precise charging of the system.
Your advantages
- Automatic and precise refrigerant charging according to target superheat, subcooling and weight thanks to intelligent valve
- Wireless connection and operation with Testo manifolds and testo Smart App via Bluetooth
- All measured values for the charging process at a glance with storage of the measured data in the testo Smart App
- Particularly handy thanks to compact housing, low weight, practical carrying handle and a robust shoulder bag
TESTO Digital Refrigerant Scale and Intelligent Valve with Bluetooth® | 560i Description
testo 560i kit for automatic charging of refrigeration systems and heat pumps
- In the kit: digital refrigerant scale testo 560i and intelligent valve (both with Bluetooth), shoulder bag, batteries
- Automatic and precise refrigerant charging with the aid of refrigerant scale, intelligent valve as well as Testo manifold and/or testo Smart App
- Easy operation via Testo manifold or testo Smart App with automatic charging programs according to target value superheat, subcooling or refrigerant weight
- Flexible in confined environments: Scale and valve automatically connect via Bluetooth to the manifold and App on your smartphone/tablet
- All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App
- Compatible with the manifolds testo 557s/550s/550i as well as testo 557 /550, Smart Probes testo 115i/ 549i/605i, testo Smart App for Android and iOS
Advantages of the testo 560i refrigerant scale
- High measurement accuracy with resolution 10 g and output in kg
- Maximum load of 100 kg for all common refrigerant containers
- High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 30 m)
- Safe handling: 3D corners for accurate positioning of the refrigerant container and textured rubber surface for stable grip
- High robustness due to dust and splash water protection (IP44)
- Especially handy thanks to compact housing, low weight, practical carrying handle and sturdy shoulder bag
- Long battery life of up to 70 hours thanks to replaceable AA batteries and auto power-off function
- High flexibility in outdoor use at temperatures from -10 to 50° C
Advantages of the refrigerant valve
- Especially robust thanks to IP54
- High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 50 m)
- Long battery life of over 60 hours and replaceable 9 V block battery
- Very practical due to sturdy hook

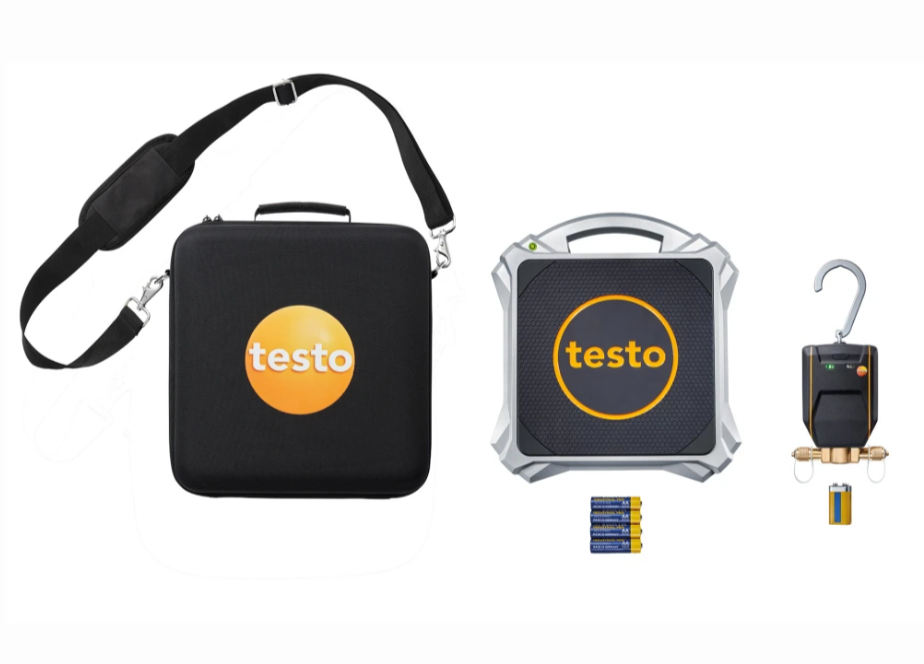

Delivery Scope
- testo 560i digital refrigerant scale with Bluetooth
- Refrigerant valve with Bluetooth
- Shoulder bag
- 4 x batteries (AA), 1 x 9 V (6LR61) battery
- Instruction manual
TESTO Digital Refrigerant Scale and Intelligent Valve with Bluetooth® | 560i Technical Data
testo 560i - Digital refrigerant scale with Bluetooth
General technical data
Intelligent refrigerant valve with Bluetooth for digital refrigerant scale testo 560i
General technical data
TESTO Digital Refrigerant Scale and Intelligent Valve with Bluetooth® | 560i Images
testo 560i - Digital refrigerant scale with Bluetooth
General technical data
| Operating humidity |
0 to 80 %RH
|
|---|---|
| Weight |
4.36 kg (incl. batteries and bag)
|
| Measuring range |
0 to 100 kg
|
| Accuracy |
Operating temperature +22 °C:
≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg)
≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg)
|
| Resolution |
0.01 kg
|
| Dimensions |
310 x 287 x 58 mm (LxWxH)
|
| Operating temperature |
-10 to +50 °C
|
| Protection class |
IP44
|
| Battery life |
> 70 h at +25 °C
|
| Battery type |
4 x type AA batteries
|
| Interface |
Bluetooth® 4.2
|
| Radio range |
30 m
|
| Storage temperature |
-10 to +50 °C
|
Intelligent refrigerant valve with Bluetooth for digital refrigerant scale testo 560i
General technical data
| Operating humidity |
0 to 80 %RH
|
|---|---|
| Weight |
570 g (incl. batteries)
|
| Dimensions |
95 x 119 x 47 mm (LxWxH)
|
| Operating temperature |
-10 to +50 °C
|
| Protection class |
IP54
|
| Product colour |
black/orange; silver
|
| Maximum working pressure |
35 bar
|
| Battery type |
9 V (6LR61)
|
| Battery life |
>60 hrs + 3000 valve operations
|
| Interface |
Bluetooth® 4.2
|
| Radio range |
50 m
|
| Storage temperature |
-10 to +50 °C
|
