TESTO Flue Gas Measurement on Oil and Gas Systems | TESTO 320 Basic Set

Flue gas measurement on heating systems with a compact flue gas analyzer for oil and gas: the testo 320 basic features all the essential functions for carrying out flue gas analysis, flue draught and pressure measurements. In the set, you get the testo 320 basic flue gas analyzer with practical accessories.

0563 3223 70

Your Advantages

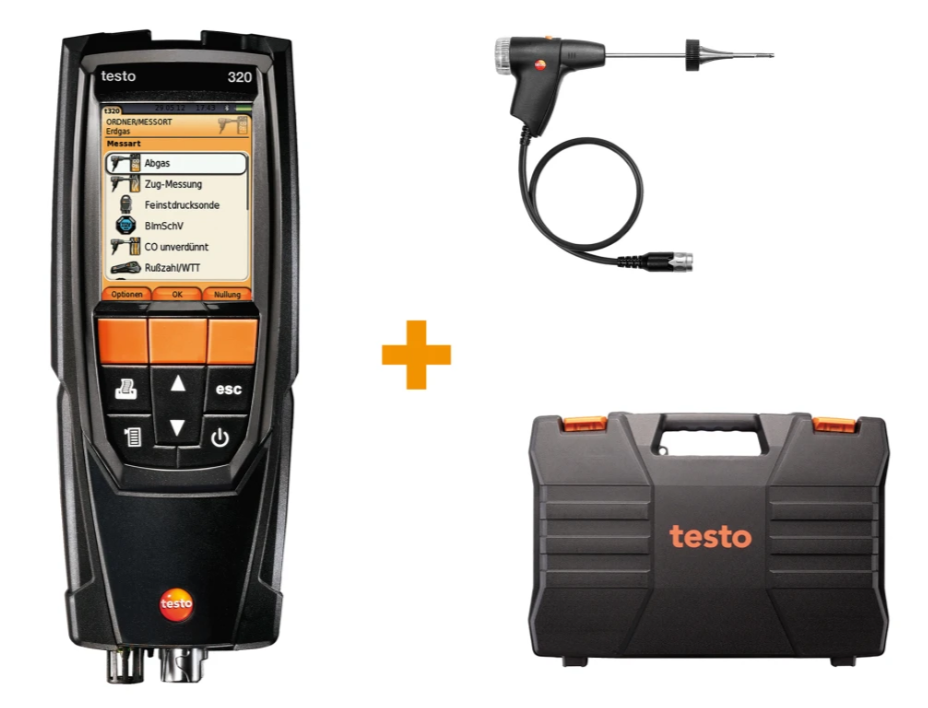

- Included in the set: testo 320 basic flue gas analyzer including O2 and CO sensor (without H2 compensation), USB mains unit, compact basic flue gas probe 180 mm in length and instrument case

- 4 applications with just one instrument: flue gas measurement, flue draught measurement, pressure measurement, differential temperature measurement

- Self-explanatory menu guidance with standardized measuring procedures for quick, easy handling

- TÜV-tested according to EN 50379, Parts 1 and 3

TESTO Flue Gas Measurement on Oil and Gas Systems | TESTO 320 Basic Set Description

You will find the testo 320 basic flue gas analyzer to be a reliable tool for carrying out installation and maintenance work on heating systems. A compact flue gas analyzer, it can be used to measure flue gas, draught, pressure, O2, ambient CO and differential temperature.

Testo 320 basic set in detail

testo 320 basic flue gas analyzer, TÜV-tested according to EN 50379, Parts 1 and 3:

- Flue gas analysis on heating systems: the testo 320 basic flue gas analyzer is equipped with two sensors – an O2 and a CO sensor (without H2 compensation). In the case of CO measurement, the measuring range goes up to 4,000 ppm

- Self-explanatory menu guidance makes operation simpler and your job easier. Thanks to the high-resolution colour display, the readings are easy to read out even in poor light conditions. The flue gas analyzer can store up to 20 measurement protocols. The free Excel tool enables you to export your measurement protocols to Excel via mini-USB

- When you purchase the flue gas analyzer, you get a 2-year warranty (for the instrument, probe, O2/CO sensor)

- Changing probes is easy: The probes can be changed by the user. This means you have the option to order other probes specifically required for your flue gas analysis (e.g. multi-hole probe, dual wall clearance probe, flexible flue gas probe)

- Single-hose connection: just one hand movement is needed to securely connect all channels for flue gas measurement via the probe coupling (gas paths, draught, temperature probe integrated in the flue gas probe)

- Long service life thanks to the long-life Li-ion rechargeable battery

- Built-in magnets enable the flue gas analyzer to be attached to the burner/boiler quickly

- Integrated condensate trap – easy to empty

Compact basic flue gas probe:

- On the basic flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument via a practical bayonet lock

- The compact basic flue gas probe is equipped with a dirt filter which protects the measuring instrument and its sensors The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500°C

Delivery Scope

- Testo 320 basic flue gas analyzer, including O2/CO sensor without H2 compensation, including calibration protocol (0632 3223)

- USB mains unit for connection to the testo 320 flue gas analyzer (0554 1105)

- Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax 500°C (0600 9740)

- Instrument case, height 112 mm (0516 0021)

TESTO Flue Gas Measurement on Oil and Gas Systems | TESTO 320 Basic Set Technical Data

General technical data

Weight	573 g
Dimensions	240 x 85 x 65 mm
Operating temperature	-5 to +45 °C
Protection class	IP40
Display size	240 x 320 pixels
Display function	Colour graphic display
Power supply	Battery: 3.7 V / 2,400 mAh; Mains unit: 5 V / 1 A
Maximum
Storage temperature	-20 to +50 °C

Flue gas O₂

Measuring range	0 to 21 Vol.%
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t₉₀	< 20 s

Differential Pressure flue gas Draught - Piezoresistive

Measuring range	-9.99 to +40 hPa
Accuracy	±1.5 % of mv (+3.01 to +40.00 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa)
Resolution	0.01 hPa

Temperature

Measuring range	-40 to +1200 °C
Accuracy	±0.5 % of mv (Remaining Range) ±0.5 °C (0 to +100.0 °C)
Resolution	0.1 °C (-40 to +999.9 °C) 1 °C (> +1000 °C)

Flue gas degree of effectivity, Eta (calculated)

Measuring range	0 to 120 %
Resolution	0.1 %

Flue gas loss (calculated)

Measuring range	0 to 99.9 %
Resolution	0.1 %

Flue gas CO₂ calculation (calculated from O₂)

Measuring range	0 to CO₂ max (Display range)
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t₉₀	< 40 s

Pressure measurement

Measuring range	0 to +300 hPa
Accuracy	±0.5 hPa (0.0 to 50.0 hPa) ±1.5 % of mv (Remaining Range) ±1 % of mv (50.1 to 100.0 hPa)
Resolution	0.1 hPa

Flue gas CO (without H₂-compensation)

Measuring range	0 to 4000 ppm
Accuracy	±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm)
Resolution	1 ppm
Reaction time t₉₀	< 60 s

Ambient CO

Measuring range	0 to 4000 ppm
Accuracy	±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm)
Resolution	1 ppm
Measuring rate	< 60 s
