TESTO High-Precision 100 mm Vane Probe Head Including Temperature Sensor
More applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the high-precision 100 mm vane probe head.
Your advantages
- Intuitive: parallel determination of air velocity, volume flow and air temperature
- Precise: detects the smallest air velocities from as little as +0.1 m/s and is therefore ideal for laminar flow measurements in cleanrooms
- Convenient: probe head is easy to attach to the universal Bluetooth or cable handle or to the extendable telescope (all available to order separately)
- Intelligent calibration concept: only send in the probe head for calibration
TESTO High-Precision 100 mm Vane Probe Head Including Temperature Sensor Description
Combine the probe head with the adapter for air velocity probes and simply plug it onto the handle with cable or Bluetooth. For convenient measurements at ceiling outlets, we recommend the extendable telescope for air velocity probes including 90° angle.
Note: Please note that you need the handle adapter (order number 0554 2160) to use this probe head in conjunction with the handles.
Delivery Scope
100 mm vane probe head, bracket for testovent measurement funnel and calibration protocol.
TESTO High-Precision 100 mm Vane Probe Head Including Temperature Sensor Technical Data
General technical data
Temperature - NTC
Velocity / Volume flow
TESTO High-Precision 100 mm Vane Probe Head Including Temperature Sensor Images
General technical data
| Storage temperature |
-20 to +70 °C
|
|---|---|
| Weight |
120 g
|
| Dimensions |
180 x 105 x 46 mm
|
| Operating temperature |
-20 to +70 °C
|
| Probe head diameter |
100 mm
|
| Product colour |
Black
|
Temperature - NTC
| Measuring range |
-20 to +70 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Velocity / Volume flow
| Measuring range |
0.1 to 15 m/s
|
|---|---|
| Accuracy |
±(0.1 m/s + 1.5 % of mv)
|
| Resolution |
0.01 m/s
|

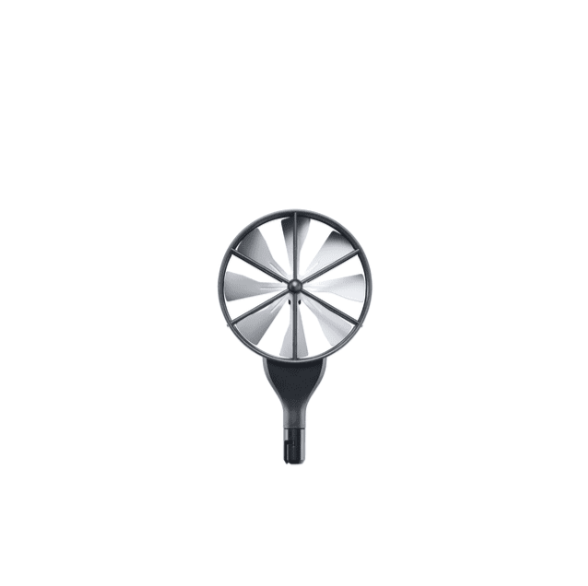

TESTO High-Precision 100 mm Vane Probe Head Including Temperature Sensor Images
