TESTO High-Pressure Probe - For Pressure Tests Up To 25 bar
The high-pressure probe (with the appropriate measuring instrument) is ideally suited for carrying out pressure tests up to 25 bar and pressure tests on fluids.
The high-pressure probe (with the appropriate measuring instrument) is ideally suited for carrying out pressure tests up to 25 bar and pressure tests on fluids.
Your advantages
- Pressure tests up to 25 bar
- Pressure tests on fluids
- High-pressure tests on water pipes, tests on waste water pipes according to DIN EN 1610
- Can be attached to testo 312-4 and testo 324
TESTO High-Pressure Probe - For Pressure Tests Up To 25 bar Description
Use the high-pressure probe to carry out pressure tests up to 25 bar and pressure tests on fluids.
The testo 324 only enables pressure testing of gaseous media up to 1 bar.
This high-pressure probe can also be used for liquid media and it has a 25 bar pressure range. This means that high-pressure tests on water pipes or tests on waste water pipes according to DIN EN 1610 are possible.
Delivery Scope

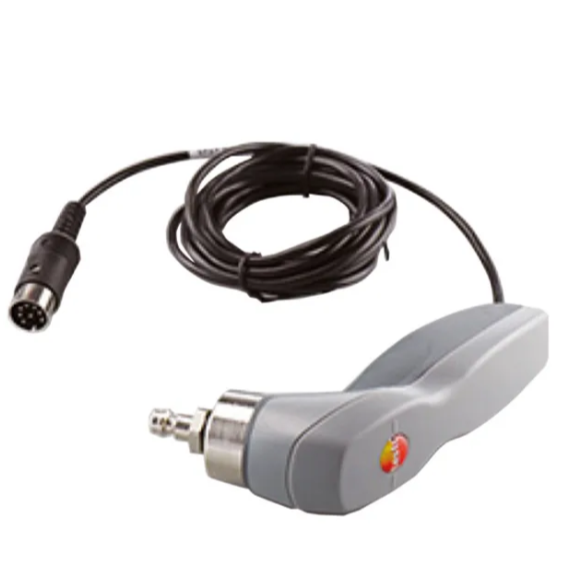

High-pressure probe with fixed cable.
TESTO High-Pressure Probe - For Pressure Tests Up To 25 bar Technical Data
Pressure measurement
TESTO High-Pressure Probe - For Pressure Tests Up To 25 bar Images
Pressure measurement
| Measuring range |
0 to 25 bar
|
|---|---|
| Accuracy |
±0.6 % of fsv ( > 10 bar)
±0.6 % of fsv (0 to 10 bar)
|
| Resolution |
10 hPa
|
