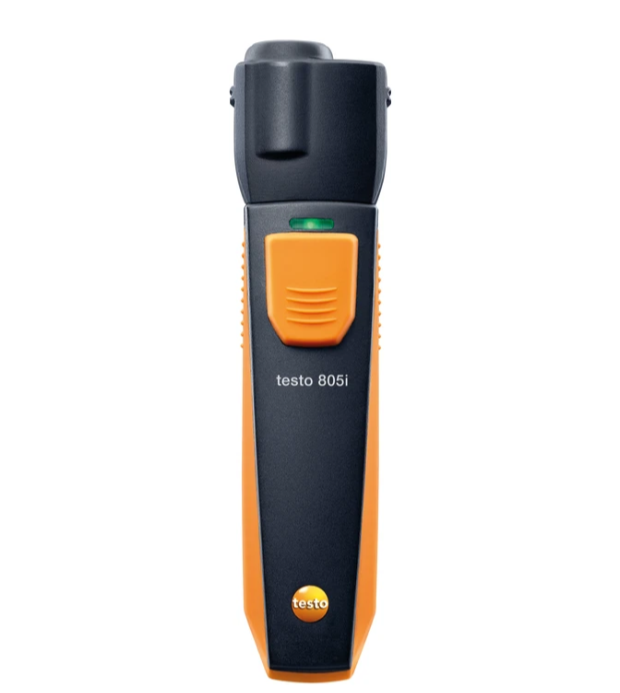

TESTO Infrared Thermometer With Smartphone Operation | 805i
Carry out non-contact and App-controlled measurement of wall temperatures, as well as fuse and component temperatures in air conditioning systems: with the professional testo 805i infrared thermometer with 8-point laser circle for highly visible measuring spot marking.
Your Advantages
- Non-contact infrared measurement of surface temperature
- Easy selection of emission level via stored materials list

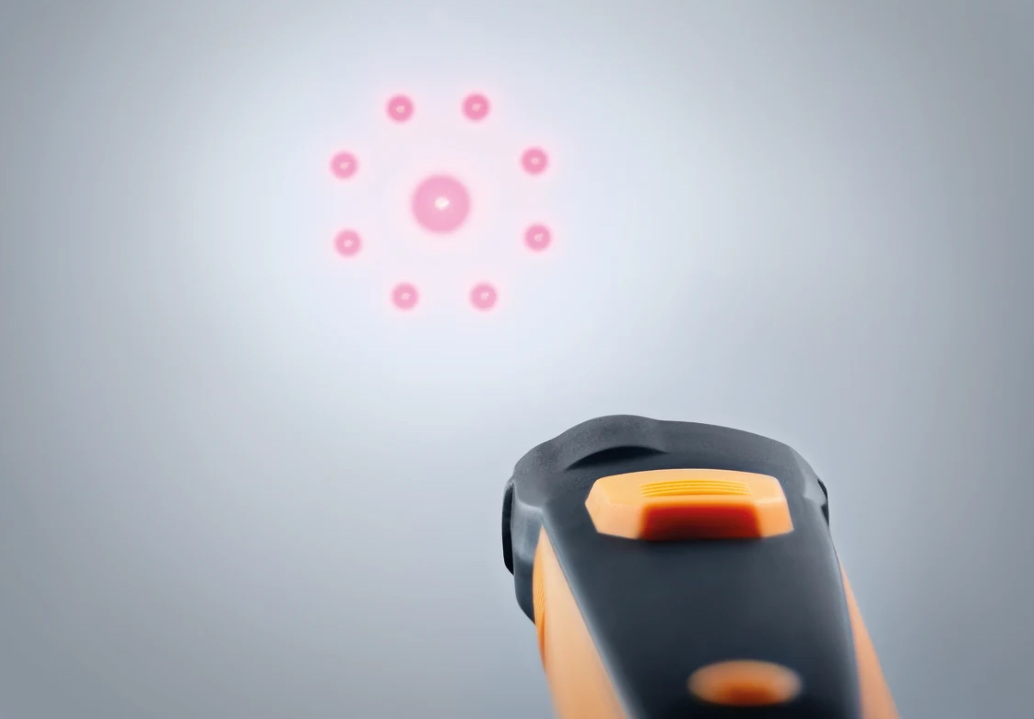

- Highly visible marking of the measuring spot thanks to 8-point laser
- Image documentation with readings and measuring spot marking
TESTO Infrared Thermometer With Smartphone Operation | 805i Description
The testo 805i infrared thermometer, in conjunction with a smartphone or tablet, functions as a compact IR thermometer for wall temperatures, as well as fuse and component temperatures in air conditioning systems. The measuring point is marked clearly with a laser circle made up of eight dots – so you always know precisely where to measure.
Documentation including images via App on a smartphone/tablet
With the testo Smart App installed on a terminal device, users can view their readings conveniently. And that's not all: the App can also be used to create and document images, including temperature values and laser marking. A separate measurement menu makes it easier to detect areas that are susceptible to mould. Particularly useful: a list containing the emission levels of certain materials is already stored in the App, so there's no longer any need to waste your time looking these up in tables. All measurement data is displayed either as a chart or in table form. The measurement data log can then be emailed directly as a PDF or Excel file.
System requirements:
- iOS 11 or later
- Android 6.0 or later
- Bluetooth 4.0
Delivery Scope
Testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.
TESTO Infrared Thermometer With Smartphone Operation | 805i Technical Data
Temperature-Infrared
General Technical Data
TESTO Infrared Thermometer With Smartphone Operation | 805i Images
Temperature-Infrared
| Measuring range |
-30 to +250 °C
|
|---|---|
| Accuracy |
±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)
|
| Resolution |
0.1 °C
|
General Technical Data
| Weight |
97 g
|
|---|---|
| Dimensions |
140 x 36 x 25 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product-/housing material |
ABS / TPE
|
| System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
|
| Product colour |
black/orange
|
| Battery life |
30 h
|
| Battery type |
3 AAA micro batteries
|
| Storage temperature |
-20 to +60 °C
|
