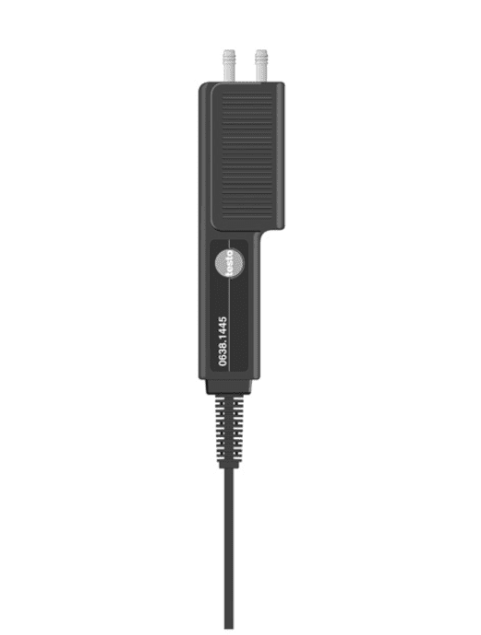

TESTO Precision Pressure Probe, 100 Pa, Measures Differential Pres...
Precision pressure probe, 100 Pa, measures differential pressure and velocities (in combination with Pitot tube)
Precision pressure probe, 100 Pa, measures differential pressure and velocities (in combination with Pitot tube)
TESTO Precision Pressure Probe, 100 Pa, Measures Differential Pres... Description
Use the pressure probe to determine differential pressures and flow velocities (in combination with a Pitot tube). Both Prandtl Pitot tubes (Ø 7 mm) and straight Pitot tubes (Ø 8 mm) can be used for flow measurement.
Pressure plays an important role as a measurement parameter, particularly in power and air conditioning technology, as well as in industrial process technology. The difference between the static pressures is measured in the course of acceptance test measurements to check the pressure drop of built-in components (e.g. air filters).
Delivery Scope
Differential pressure probe, 10 hPa, with fixed cable.
TESTO Precision Pressure Probe, 100 Pa, Measures Differential Pres... Technical Data
General technical data
Differential Pressure - Piezoresistive
TESTO Precision Pressure Probe, 100 Pa, Measures Differential Pres... Images
General technical data
| Operating temperature |
0 to +50 °C
|
|---|---|
| Cable length |
1.5 m
|
| Storage temperature |
-20 to +70 °C
|
Differential Pressure - Piezoresistive
| Measuring range |
0 to +10 hPa
|
|---|---|
| Accuracy |
±0.03 hPa
|
| Overload |
50 hPa
|
