0632 3240
TESTO Pressure/Gas Leak Detector | 324
Professional pressure/leak detector for installation, maintenance and service of gas and water pipes. Specially designed to carry out reliable leak tightness checks, load tests, serviceability tests, temperature measurements in accordance with existing rules and regulations.
Your advantages
- Easy to set up, easy to use due to legally compliant measuring menus (i.e. according to TRGI 2018)
- Extremely accurate and DVGW-compliant measuring results
- Leak tightness checks of gas pipes according to TRGI 2018 and liquid gas pipes according to TRF 2021
- Easy to use due to automatic pressure build-up; quick and easy data storage
TESTO Pressure/Gas Leak Detector | 324 Description

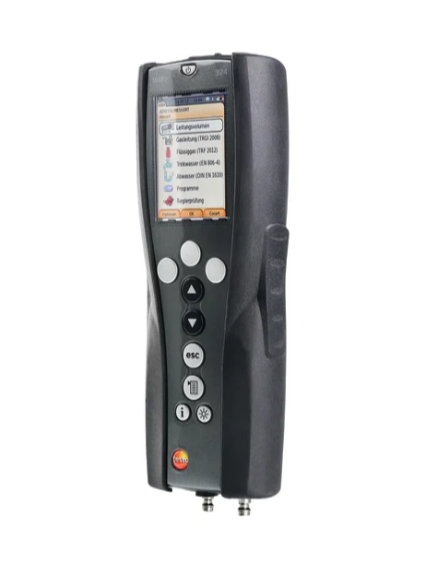

The DVGW-tested testo 324 is a professional all-rounder designed to help you carry out your installation and maintenance work quickly and easily. The easy-to-set-up, easy-to-use gas leak detector is specially designed to allow you to perform all legally required tests and inspections – i.e. leak tightness checks, load tests and serviceability tests – on gas and water pipes.
The testo 324 pressure/leak detector can be used for the following applications
- Leak tightness checks on gas pipes (leak tightness check and load test according to TRGI 2018 and DVGW G 5952)
- Serviceability checks according to TRGI 2018 on gas pipes
- Pressure tests on water pipes (drinking water according to ZVSHK EN 806-4, waste water according to DIN EN 1610)
- Leak tightness checks on liquid gas pipes according to TRF 2021
- Gas pressure regulator inspections
- Pipe volume measurements
- Further applications including temperature measurements at radiators and pressure measurements at burners (die pressure, gas flow pressure…)
State-of-the art technology, easy to use
Despite being packed with sophisticated technology, the testo 324 is still especially easy to use. A variety of useful features and tools like a single hose connecting point, a high-resolution graphic display, preloaded programs including “Gas pipe TRGI 2018 ” and automatic pressure build up ensure that you are able to carry out your installation and maintenance work quickly and easily.

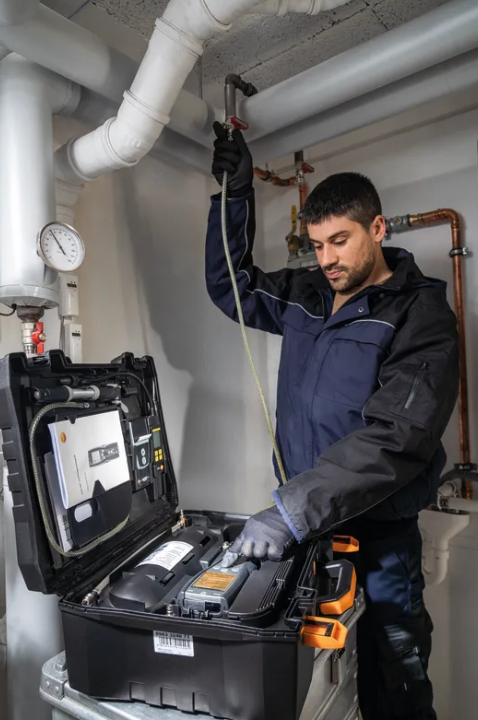

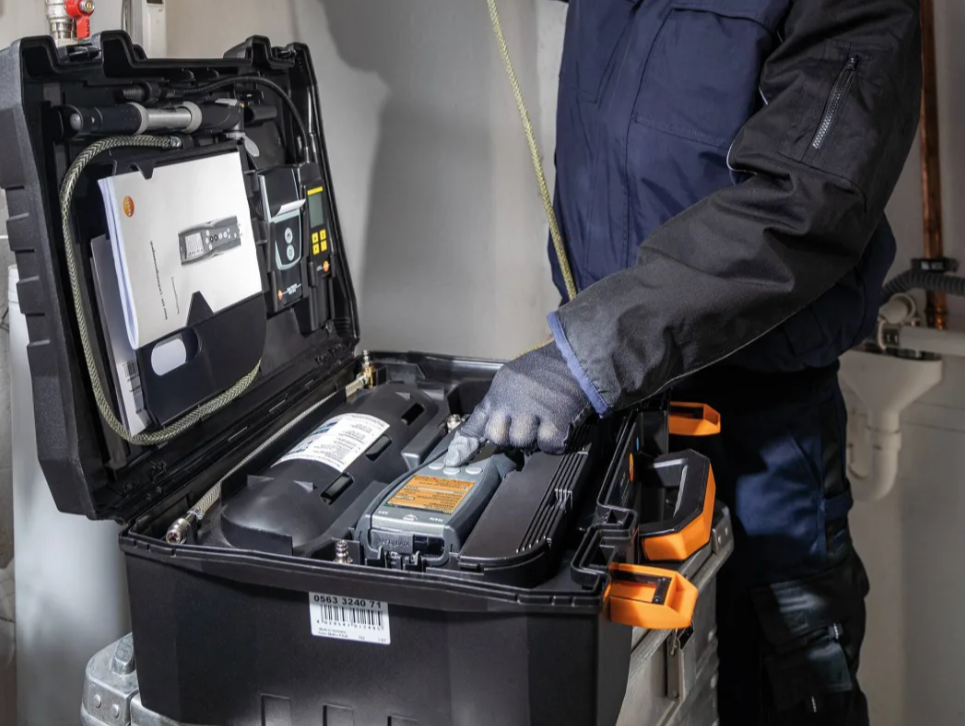

There is also a wide selection of optional accessories – ranging from a turbo printer for print outs on site to a tool carry case with gas bubble for preventing the formation of dangerous gas-air mixtures – which are all designed to make work more efficient and life easier.
Delivery Scope
testo 324 pressure/leak detector, rechargeable battery, calibration certificate.
TESTO Pressure/Gas Leak Detector | 324 Technical Data
Temperature - NTC
Temperature - TC Type K (NiCr-Ni)
Absolute Pressure
Leakage measurement
Pressure measurement
Pressure measurement (external probe)
Pipe volume calculation
TESTO Pressure/Gas Leak Detector | 324 Images
Temperature - NTC
| Measuring range |
-20 to +100 °C
|
|---|---|
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-40 to +600 °C
|
|---|---|
| Accuracy |
±0.5 °C or ±0.5 %
|
Absolute Pressure
| Measuring range |
600 to 1150 hPa
|
|---|---|
| Accuracy |
±3 hPa
|
| Overload |
to 1200 hPa
|
Leakage measurement
| Measuring range |
0 to 10 l/h
|
|---|---|
| Accuracy |
±0.2 l/h or ±5 % of mv
|
| Resolution |
0.1 l/h
|
Pressure measurement
| Measuring range |
0 to 1000 hPa
|
|---|---|
| Accuracy |
±0.5 hPa or ±3 % of mv
|
Pressure measurement (external probe)
| Measuring range |
0 to 25 bar
|
|---|---|
| Accuracy |
±0.6 % fs (> 10 to 25 bar)
|
Pipe volume calculation
| Overload |
1200 hPa
|
|---|---|
| Weight |
1070 g
|
| Dimensions |
270 x 90 x 75 mm
|
| Operating temperature |
+5 to +40 °C
|
| Protection class |
IP40 acc. to EN 60529
|
| Additional probe sockets |
2 Hirschmann sockets for connecting pressure and temperature probes
|
| Gas connections |
2 pressure connections DN 5
|
| DVGW permit according to 5925 |
Instrument class L up to volume = 200 litres
|
| Display type |
Colour display, presentation of graphic curves
|
| Data transfer |
USB, IRDA, Bluetooth® (option)
|
| Battery life |
approx. 5 h measurement time, mains operation possible
|
| Storage temperature |
-20 to +50 °C
|
