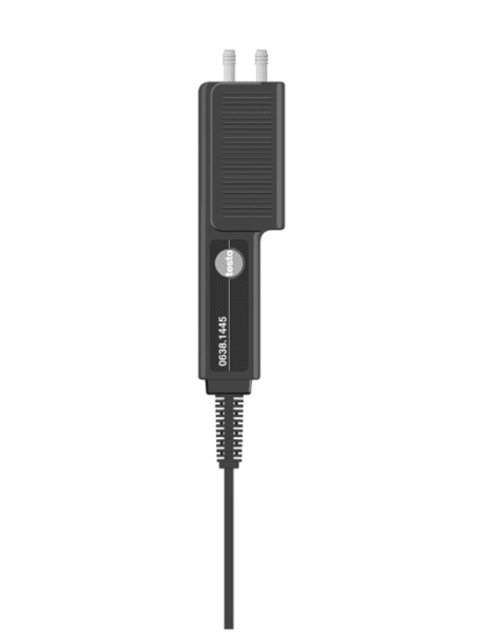

TESTO Pressure Probe, 10 hPa - For Differential Pressure and Flow
The pressure probe (with the appropriate measuring instrument) is ideally suited for recording differential pressures and flow velocities (in combination with a Pitot tube).
The pressure probe (with the appropriate measuring instrument) is ideally suited for recording differential pressures and flow velocities (in combination with a Pitot tube).
Your advantages
- Differential pressure measurement
- Flow velocity measurement in combination with a Pitot tube
- Handy probe
- Measuring range: 0 to +10 hPa
TESTO Pressure Probe, 10 hPa - For Differential Pressure and Flow Description
Use the pressure probe to determine differential pressures and flow velocities (in combination with a Pitot tube). Both Prandtl Pitot tubes (Ø 7 mm) and straight Pitot tubes (Ø 8 mm) can be used for flow measurement.
Pressure plays an important role as a measurement parameter, particularly in power and air conditioning technology, as well as in industrial process technology. The difference between the static pressures is measured in the course of acceptance test measurements to check the pressure drop of built-in components (e.g. air filters).
Delivery Scope
Differential pressure probe, 10 hPa, with fixed cable.
TESTO Pressure Probe, 10 hPa - For Differential Pressure and Flow Technical Data
General technical data
Differential Pressure - Piezoresistive
TESTO Pressure Probe, 10 hPa - For Differential Pressure and Flow Images
General technical data
| Operating temperature |
0 to +50 °C
|
|---|---|
| Cable length |
1.5 m
|
| Storage temperature |
-20 to +70 °C
|
Differential Pressure - Piezoresistive
| Measuring range |
0 to +10 hPa
|
|---|---|
| Accuracy |
±0.03 hPa
|
| Overload |
50 hPa
|
