Stock Code
0563 3163

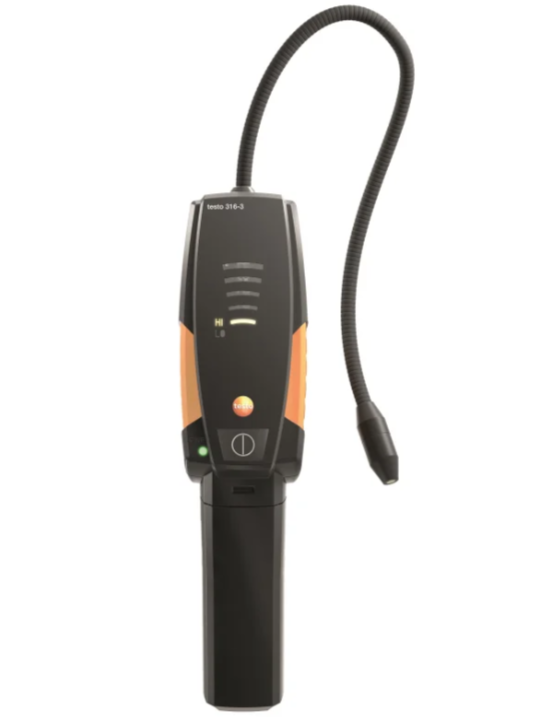

TESTO Refrigerant Leak Detector | TESTO 316-3
Leak detection in refrigeration engineering? Sure thing! The testo 316-3 refrigerant leak detector can detect all the most common cooling agents and locate even the smallest leaks. Complies with all important regulations and norms. One piece of kit you as a refrigerant technician won’t want to be without.
Your advantages
- Can detect all the most common cooling agents: CFCs, HFCs, FCs
- Highly sensitive – detects even the smallest leaks
- Easy-to-use one-button operation
- Complies with specifications for F gases regulations, SAE Code J1627 and DIN EN 14624:2012 standard
TESTO Refrigerant Leak Detector | TESTO 316-3 Description
Testo 316-3 leak detector – benefits at a glance
TESTO Refrigerant Leak Detector | TESTO 316-3 Images
The Testo 316-3 refrigerant leak detector is one piece of kit that you as a refrigerant technician just won’t want to be without. The handheld leak detector can detect all the most common cooling agents. And the smallest leaks. Comes with an automatic zero setting that also enables you to locate leaks in contaminated rooms.
Testo 316-3 leak detector – benefits at a glance
- Can detect all common cooling agents: CFCs, HFCs, FCs
- Highly sensitive ( < 4 g/a - 1g/a according to DIN EN14624:2012 standard) - can detect even the smallest leaks
- Ready for use – there’s no need to select cooling agent characteristics first
- Automatic zero setting – can detect leaks in rooms that are already contaminated
- Visual and audible alarm which are activated when a leak is detected
- Quick and easy sensor change
- Complies with specifications for F gases regulations, SAE norm J1627 and DIN EN 14624:2012 standard

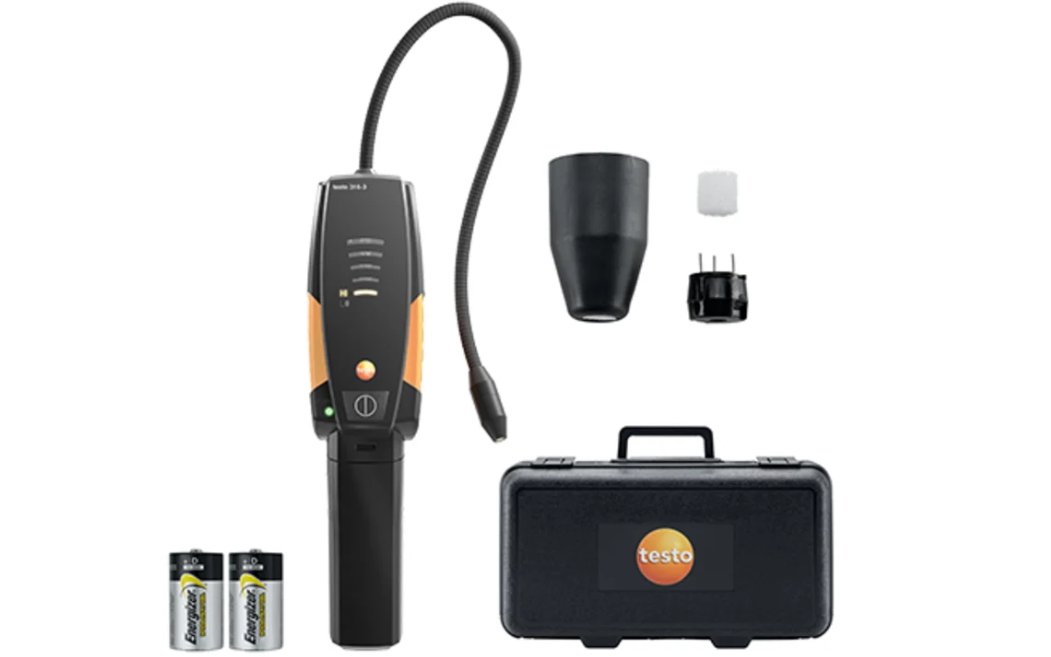

What’s included
Testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration certificate, batteries, filter.
What’s included
Testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration certificate, batteries, filter.
Delivery Scope
Testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration protocol, batteries, filter.
Testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration protocol, batteries, filter.
TESTO Refrigerant Leak Detector | TESTO 316-3 Technical Data
General technical data
| Operating humidity |
20 to 80 %RH
|
|---|---|
| Weight |
500 g (incl. batteries)
|
| Dimensions |
270 x 60 x 61 mm
|
| Operating temperature |
-18 to +50 °C
|
| Product colour |
Black
|
| Detectable |
R22; R134a; R404A; R410A; R507; R438A; and all CFCs, HFCs, and HCFCs
|
| Life-time sensor |
Approx. 80 to 100 h (corresponds to approx. 1 year)
|
| Sensitivity |
4 g/a (0.15 oz/a)
|
| Standards |
EN 14624:2012; SAE J1627
|
| EU-/EG-guidelines |
2004/108/EG
|
| Battery type |
2 x D
|
| Battery life |
16h permanent operation
|
| Storage temperature |
0 to +50 °C
|
TESTO Refrigerant Leak Detector | TESTO 316-3 Images
