TESTO Smart Probes Heating Kit

Category

Measuring Instruments , Pressure

Stock Code

0563 0004 10

Product ınformatıon

TESTO Smart Probes Heating Kit

For heating engineers: Compact kit containing three measuring instruments for carrying out your most important measuring tasks involving heating systems. The testo Smart App enables you to work more easily and efficiently: Use the measurement menus for pressure drop test with alarm function or for non-contact IR temperature measurement with image documentation including measuring value and measurement spot marking. Measurement data reports can be emailed directly as a PDF or Excel file.

0563 0004 10

Your advantages

- Non-contact temperature measurement, measurement of flow and return temperature as well as gas flow pressure

- Measurement menu for pressure-drop test including alarm function

- Display measurement data as a graph or table and analyze and send via testo Smart App

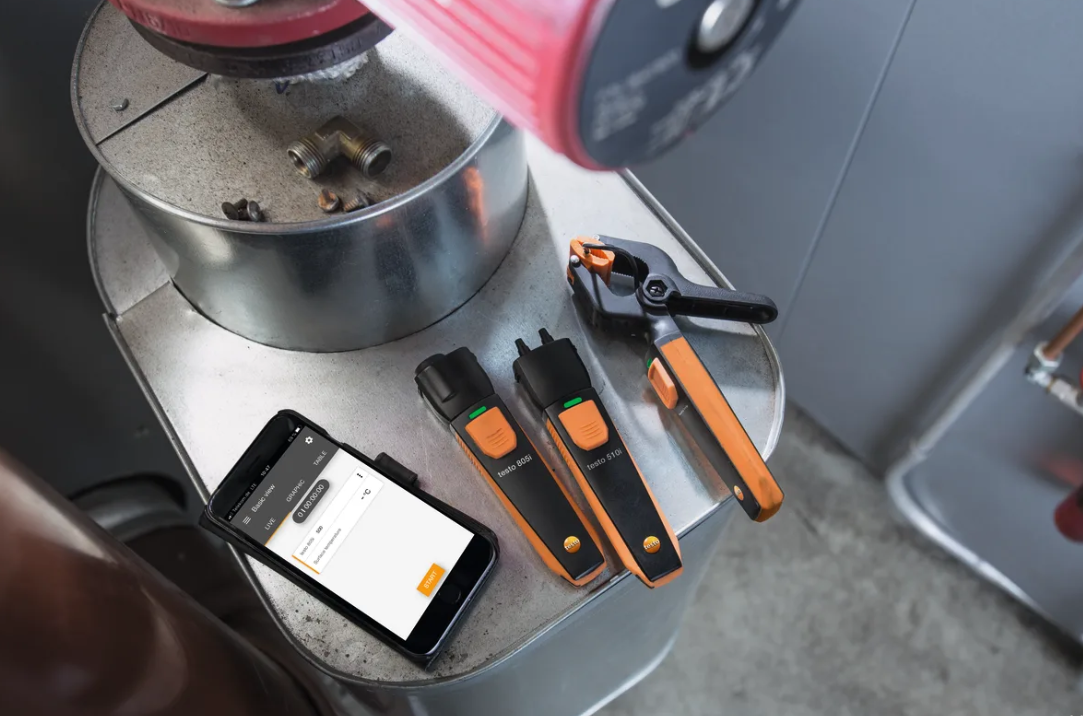

- In conjunction with your smartphone/tablet, measure and check all heating system temperatures and pressures

TESTO Smart Probes Heating Kit Description

- 1 x testo 115i surface thermometer operated via smartphone, including batteries and calibration protocol (0560 2115 02)

- 1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)

- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)

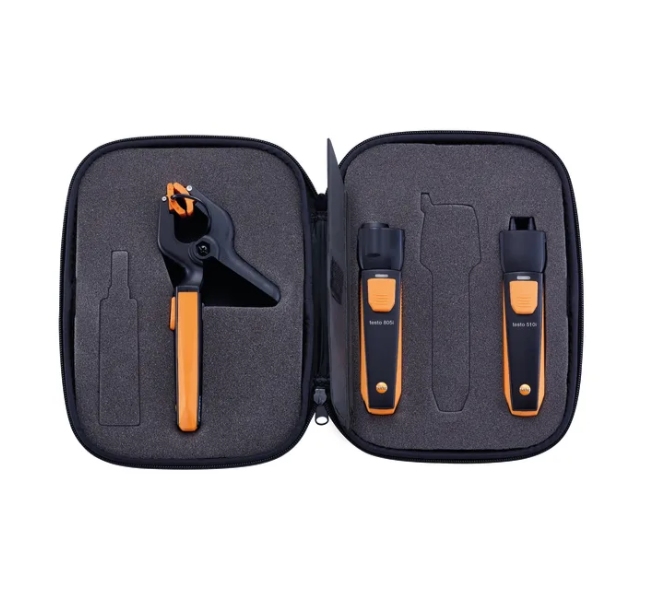

- 1 x testo Smart Case “Heating”, including foam insert (0516 0270)

TESTO Smart Probes Heating Kit Technical Data

testo 115i - Clamp thermometer operated via smartphone

Temperature - NTC

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Data transfer	Bluetooth®
Radio range	100 m
Storage temperature	-20 to +60 °C

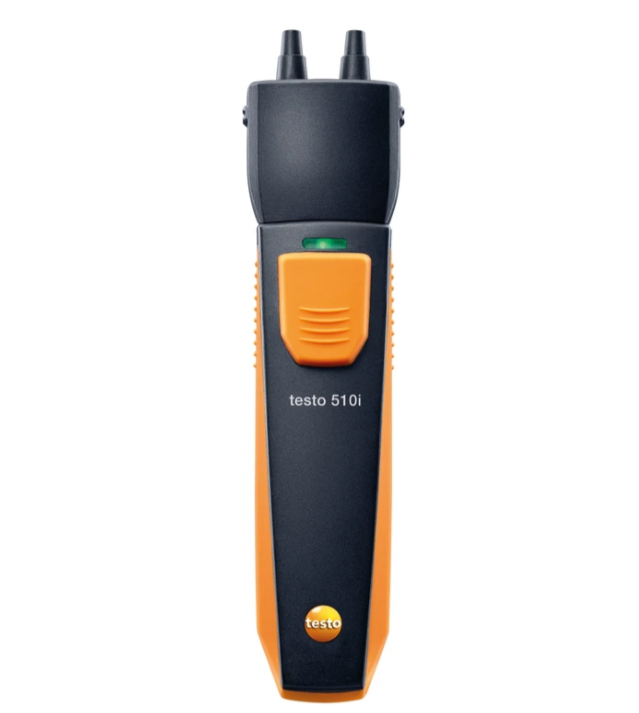

testo 510i – differential pressure measuring instrument with smartphone operation

Differential pressure (internal sensor) - Piezoresistive

Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 hPa

General technical data

Weight	92 g
Dimensions	148 x 36 x 23 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Storage temperature	-20 to +60 °C

testo 805i – infrared thermometer with smartphone operation

Temperature - Infrared

Measuring range	-30 to +250 °C
Accuracy	±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±2 °C (-20 to -0.1 °C) ±2.5 °C (-30 to -20.1 °C)
Resolution	0.1 °C

General technical data

Weight	97 g
Dimensions	140 x 36 x 25 mm
Operating temperature	-10 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	30 h
Battery type	3 AAA micro batteries
Storage temperature	-20 to +60 °C

testo Smart Case “Heating” – storage case for Smart Probes measuring instruments

General technical data

Dimensions	250 x 180 x 70 mm
Product colour	Black
Weight	249.8 g

TESTO Smart Probes Heating Kit Images

TESTO Smart Probes Heating Kit
