TESTO Smart Probes HVAC Kit

Testo

TESTO Smart Probes HVAC Kit

Category

Measuring Instruments , Temperature

Stock Code

0563 0010

Product ınformatıon

TESTO Smart Probes HVAC Kit

The testo Smart Probes HVAC kit offers everything for fast and flexible temperature measurement as well as differential pressure measurement: A wireless thermometer, an air probe, an immersion/penetration probe and a surface probe (all TC Type K, Class 1) are included with the testo 915i. The testo 510i is suitable for easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.

TESTO Smart Probes HVAC Kit

Your Advantages

- Smart Probes for wireless temperature measurement in a wide range of applications, measurement of gas flow/static pressure and measurement menu for pressure drop testing

- In the kit: testo Smart Probe 915i, air probe, immersion/penetration probe, surface probe (all TE Type K, Class 1), testo Smart Probe 510i, Smart Case

- Easy operation, evaluation and documentation with free testo Smart App as well as automatic Bluetooth® connection to smartphones, tablets or Testo measuring instruments (e.g. testo 400, testo 550s)

TESTO Smart Probes HVAC Kit Description

Wireless, versatile, easy to use: The testo Smart Probes testo 915i and testo 510i with smartphone operation and Bluetooth are part of the popular testo Smart Probes portfolio. The thermometer testo 915i provides fast, reliable measurement results and is particularly versatile and easy to use in combination with the probes, Bluetooth and Smart App. The testo 510i differential pressure measuring instrument, used in conjunction with a smartphone or tablet, is suitable for quick and easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.

Testo Smart Probes HVAC kit: Temperature & differential pressure measurement with smartphone operation

- Versatile in all temperature-relevant applications: testo 915i is compatible with all Testo and commercially available thermocouple probes Type K

- Innovative locking mechanism of testo 915i handle for easy, secure fixing of plug-in Testo probes

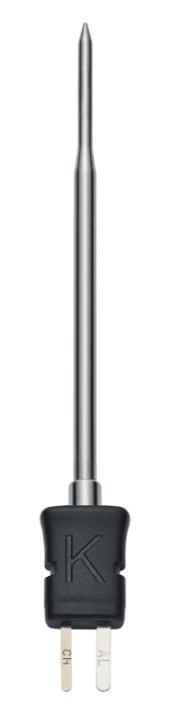

- Robust and fast-reaction immersion/penetration probe (TE Type K, class 1), measuring range -50 to +400 °C, application: temperature measurement in liquids, pasty and semi-solid media

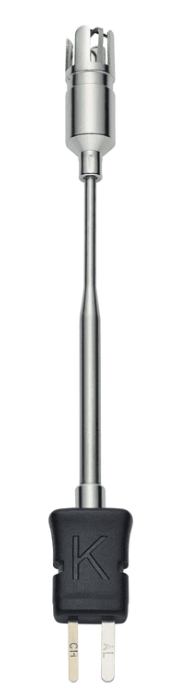

- Fast-reaction surface probe (TE Type K, Class 1) with spring-loaded thermocouple band, measuring range -50 to +350 °C, application: temperature measurement on smooth and non-planar surfaces, e. g. also for measurements on pipes

- Handy and intelligent: the compact differential pressure measuring instrument testo 510i with professional measurement technology and smartphone operation

- Testo Smart App: Display of readings, clear graphical presentation of temperature curves, documentation directly on site and sending as PDF or CSV files

- Testo Smart Case: Case for safe storage and convenient transportation of thermometer and probes

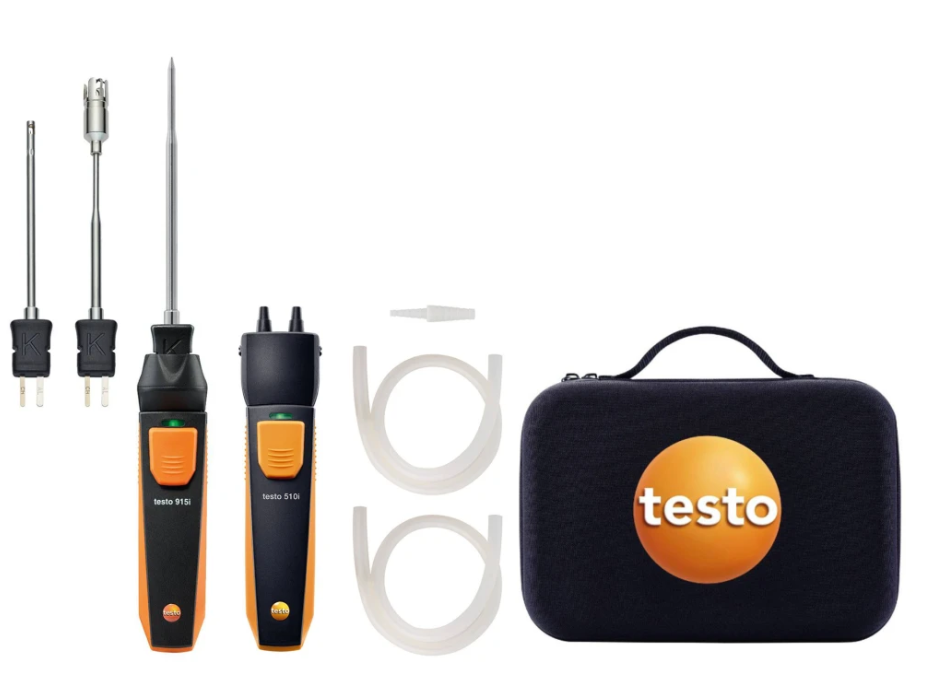

Delivery Scope

- Thermometer with smartphone operation, Smart Probe testo 915i

- Differential pressure measuring instrument with smartphone operation, Smart Probe testo 510i, incl. hose set (Ø 4 mm and 5 mm) with adapter

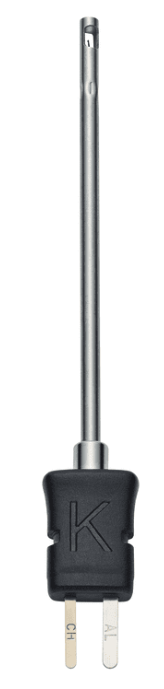

- Air probe (TC Type K, Class 1)

- Immersion/penetration probe (TC Type K, Class 1)

- Surface probe (TC Type K, Class 1)

- Testo Smart Case for storage

- Batteries

- Calibration protocol

TETESTO Smart Probes HVAC Kit Technical Data

Testo 915i temperature kit - Thermometer with temperature probes (TC Type K) and smartphone operation

Temperature - TC Type K (NiCr-Ni)

Measuring range	-50 to +350 °C (surface probe) -50 to +400 °C (air probe, immersion/penetration probe)
Accuracy	air probe, immersion/penetration probe: ±1.0 °C (-50 to +100 °C) surface probe: ±(1.0 °C + 1 % of mv) air probe, immersion/penetration probe: ±1 % of mv (Remaining Range)
Resolution	0.1 °C
Reaction time	t₉₀ = 3 s (immersion/penetration probe, surface probe) t₉₀ = 60 s (air probe)

General technical data

Weight	testo Smart Case (temperature): 250 g air probe, immersion/penetration probe: 11 g Bluetooth® handle: 88 g surface probe: 22 g
Dimensions	Bluetooth® handle: 129 x 31 x 31 mm (LxWxH) length probe: 99 mm (air probe), 115 mm (immersion/penetration probe), 136 mm (surface probe) diameter probe tip: 3 mm (immersion/penetration probe), 12 mm (surface probe) diameter probe shaft: 4 mm (air probe), 5 mm (immersion/penetration probe), 5 mm (surface probe) testo Smart Case (temperature): 250 x 180 x 70
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
Protection class	IP 20 (air probe, surface probe); IP 40 (immersion/penetration probe)
System requirements	requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Plug-in probe connection	Lockable connection to 4 standard probes testo 915i; Standard plug-in connection to other common TC probes
Battery type	3 AAA micro batteries
Battery life	150 h
Data transfer	Bluetooth®; automatic connection to testo Smart App and Testo measuring instruments
Radio range	100 m
Storage temperature	-20 to +60 °C

Testo 510i – differential pressure measuring instrument with smartphone operation

Differential pressure (internal sensor) - Piezoresistive

Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 hPa

General technical data

Weight	92 g
Dimensions	148 x 36 x 23 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Storage temperature	-20 to +60 °C
