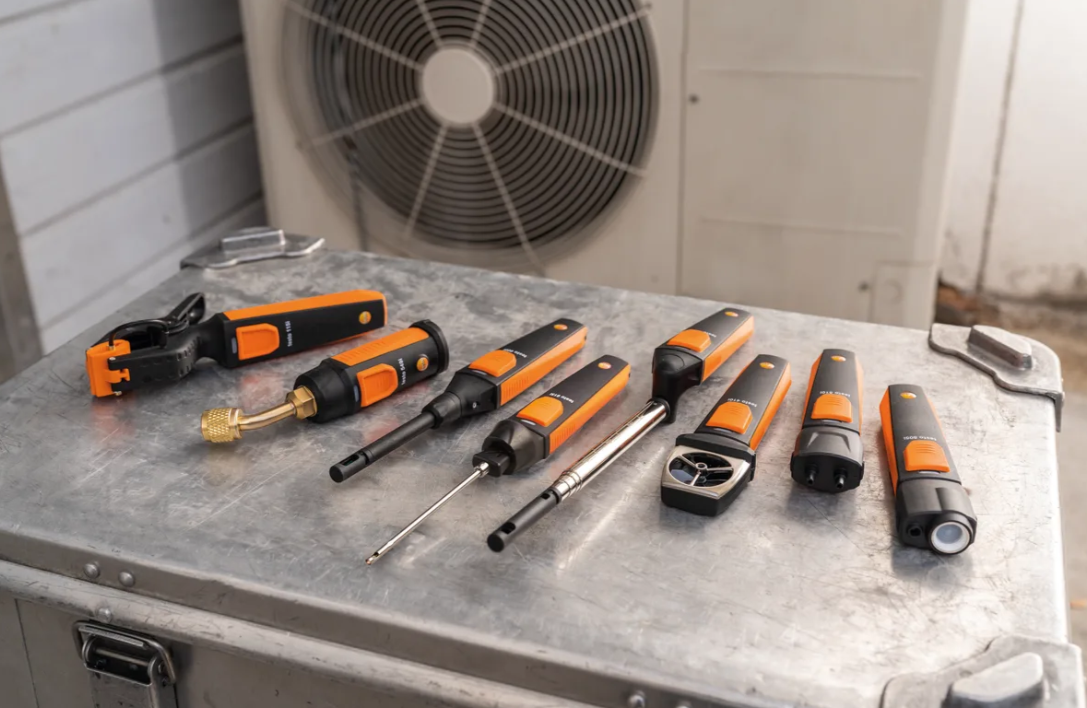

TESTO Smart Probes HVAC/R Ultimate Kit
Ultimate kit for all-round engineers in the field of heating, air conditioning, refrigeration and ventilation: The kit contains all the testo Smart Probes and is ideal for carrying out functional checks or for plant maintenance, in conjunction with your smartphone/tablet. The testo Smart App enables you to work more easily and efficiently: Automatically calculate numerous parameters such as superheating/subcooling, target superheat, cooling/heating power or differential temperature. Measurement data reports can be emailed directly as a PDF or Excel file.

Your Advantages
- For all measurements involving heating, air-conditioning, refrigeration and ventilation systems
- All Smart Probes for temperature, pressure, humidity and flow in one kit
- Display of measurement data progression as a graph or table

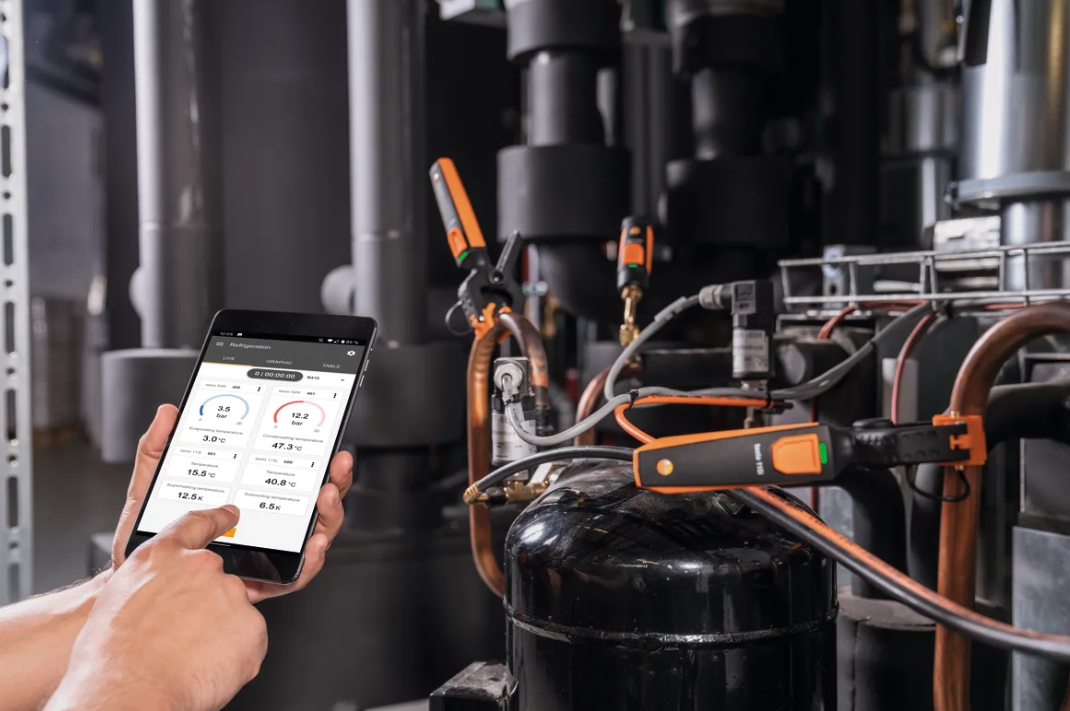

- Transmission and analysis of measurement data via testo Smart App
TESTO Smart Probes HVAC/R Ultimate Kit Description

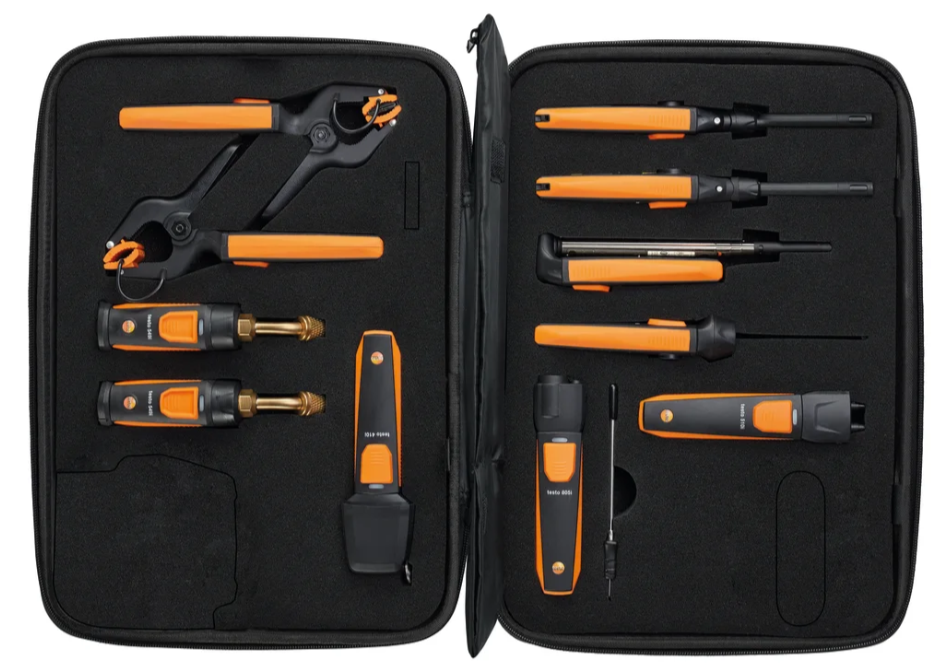

Delivery Scope
- 2 x testo 115i clamp thermometers operated via smartphone, including batteries and calibration protocol (0560 2115 02)
- 2 x testo 549i high-pressure gauges operated via smartphone, including batteries and calibration protocol (0560 2549 02)
- 2 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
- 1 x testo 915i thermometer with air probe (TC type K) operated via smartphone, including batteries and calibration protocol (563 3915)
- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
- 1 x testo 405i thermal anemometer operated via smartphone, including batteries and calibration protocol (0560 1405)
- 1 x testo 410i vane anemometer operated via smartphone, including batteries and calibration protocol (0560 1410)
- 1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)
- 1 x testo HVAC softcase, including foam insert (0516 0283)
TESTO Smart Probes HVAC/R Ultimate Kit Technical Data
testo 115i - Clamp thermometer operated via smartphone
Temperature - NTC
General technical data
testo 549i - High-pressure gauge operated via smartphone
Pressure measurement
General technical data
testo 605i - thermohygrometer operated via smartphone
Temperature - NTC
Humidity - Capacitive
General technical data
testo 915i - Thermometer with air probe (TC type K) and smartphone operation
Temperature - TC Type K (NiCr-Ni)
General technical data
testo 805i – infrared thermometer with smartphone operation
Temperature - Infrared
General technical data
testo 405i – thermal anemometer with smartphone operation
Temperature - NTC
Velocity - Hot wire
General technical data
testo 410i – vane anemometer with smartphone operation
Temperature - NTC
Velocity - Vane
General technical data
testo 510i – differential pressure measuring instrument with smartphone operation
Differential pressure (internal sensor) - Piezoresistive
General technical data
testo HVAC softcase storage case: for testo Smart Probes measuring instruments
General technical data
testo 115i - Clamp thermometer operated via smartphone
Temperature - NTC
Measuring range |
-40 to +150 °C
|
---|---|
Accuracy |
±1.3 °C (-20 to +85 °C)
|
Resolution |
0.1 °C
|
General technical data
Weight |
127.4 g
|
---|---|
Dimensions |
183 x 90 x 30 mm
|
Operating temperature |
-20 to +50 °C
|
Product-/housing material |
Plastic
|
System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
|
Product colour |
black/orange
|
Battery type |
3 AAA micro batteries
|
Battery life |
150 h
|
Data transfer |
Bluetooth®
|
Radio range |
100 m
|
Storage temperature |
-20 to +60 °C
|
testo 549i - High-pressure gauge operated via smartphone
Pressure measurement
Measuring range |
-1 to +60 bar
|
---|---|
Accuracy |
±0.5 % of fsv
|
Resolution |
0.01 bar
|
Probe connection |
7 / 16 " - UNF
|
Overload rel. (high pressure) |
+65 bar
|
General technical data
Weight |
156.6 g
|
---|---|
Dimensions |
125 x 32 x 31 mm
|
Operating temperature |
-20 to +50 °C
|
Product-/housing material |
Plastic
|
System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
|
Product colour |
black/orange
|
Battery life |
130 h
|
Battery type |
3 AAA micro batteries
|
Data transfer |
Bluetooth®
|
Radio range |
100 m
|
Pressure media |
CFC, HFC, HCFC, N, H₂O, CO₂
|
Storage temperature |
-20 to +60 °C
|
testo 605i - thermohygrometer operated via smartphone
Temperature - NTC
Measuring range |
-20 to +60 °C
|
---|---|
Accuracy |
±0.8 °C (-20 to 0 °C)
±0.5 °C (0 to +60 °C)
|
Resolution |
0.1 °C
|
Humidity - Capacitive
Measuring range |
0 to 100 %RH
|
---|---|
Accuracy |
Hysteresis: ±1.0 %RH
±2.0 %RH (35 to 65 %RH) (at +25°C)
long-term stability: ±1 %RH / year
±5 %RH (< 10 %RH or > 90 %RH)
±3.0 %RH (65 to 90 %RH) (at +25°C)
±3.0 %RH (10 to 35 %RH) (at +25°C)
|
Resolution |
0.1 %RH
|
General technical data
Weight |
86.4 g
|
---|---|
Dimensions |
218 x 30 x 27 mm
|
Operating temperature |
-20 to +50 °C
|
Product-/housing material |
Plastic
|
System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
|
Product colour |
black/orange
|
Battery life |
150 h
|
Battery type |
3 AAA micro batteries
|
Length probe shaft |
100 mm
|
Data transfer |
Bluetooth®
|
Radio range |
100
|
Storage temperature |
-20 to +60 °C
|
testo 915i - Thermometer with air probe (TC type K) and smartphone operation
Temperature - TC Type K (NiCr-Ni)
Measuring range |
-50 to +400 °C
|
---|---|
Accuracy |
±1 % of mv (Remaining Range)
±1.0 °C (-50 to +100 °C)
|
Resolution |
0.1 °C
|
Reaction time |
t₉₀: 60 s
|
General technical data
Weight |
Bluetooth® handle: 88 g
air probe: 11 g
|
---|---|
Dimensions |
Bluetooth® handle: 129 x 31 x 31 mm (LxWxH)
|
Operating temperature |
-20 to +50 °C
|
Product-/housing material |
Plastic
|
Protection class |
IP20
|
System requirements |
requires iOS 13.0 or newer; requires mobile end device with Bluetooth 4.2; requires Android 8.0 or newer
|
Product colour |
black/orange
|
Plug-in probe connection |
Lockable connection to 4 standard probes testo 915i; Standard plug-in connection to other common TC probes
|
Diameter probe shaft |
4 mm
|
Length probe shaft |
99 mm
|
Battery life |
150 h
|
Battery type |
3 AAA micro batteries
|
Data transfer |
Bluetooth®; automatic connection to testo Smart App and Testo measuring instruments
|
Radio range |
100 m
|
Storage temperature |
-20 to +60 °C
|
testo 805i – infrared thermometer with smartphone operation
Temperature - Infrared
Measuring range |
-30 to +250 °C
|
---|---|
Accuracy |
±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)
|
Resolution |
0.1 °C
|
General technical data
Weight |
97 g
|
---|---|
Dimensions |
140 x 36 x 25 mm
|
Operating temperature |
-10 to +50 °C
|
Product-/housing material |
ABS / TPE
|
System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
|
Product colour |
black/orange
|
Battery life |
30 h
|
Battery type |
3 AAA micro batteries
|
Storage temperature |
-20 to +60 °C
|
testo 405i – thermal anemometer with smartphone operation
Temperature - NTC
Measuring range |
-20 to +60 °C
|
---|---|
Accuracy |
±0.5 °C
|
Resolution |
0.1 °C
|
Velocity - Hot wire
Measuring range |
0 to 30 m/s
|
---|---|
Accuracy |
±(0.1 m/s + 5 % of mv) (0 to 2 m/s)
±(0.3 m/s + 5 % of mv) (2 to 15 m/s)
|
Resolution |
0.01 m/s
|
General technical data
Weight |
119.6 g
|
---|---|
Dimensions |
200 x 30 x 41 mm
|
Operating temperature |
-20 to +50 °C
|
Product-/housing material |
Plastic
|
System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
|
Product colour |
black/orange
|
Battery life |
15 h
|
Battery type |
3 AAA micro batteries
|
Diameter probe shaft |
12 mm
|
Diameter probe shaft tip |
9 mm
|
Length probe shaft |
400 mm
|
Storage temperature |
-20 to +60 °C
|
testo 410i – vane anemometer with smartphone operation
Temperature - NTC
Measuring range |
-20 to +60 °C
|
---|---|
Accuracy |
±0.5 °C
|
Resolution |
0.1 °C
|
Velocity - Vane
Measuring range |
0.4 to 30 m/s
|
---|---|
Accuracy |
±(0.2 m/s + 2 % of mv) (0.4 to 20 m/s)
|
Resolution |
0.1 m/s
|
General technical data
Weight |
117.8 g
|
---|---|
Dimensions |
154 x 43 x 21 mm
|
Operating temperature |
-20 to +50 °C
|
Product-/housing material |
Plastic
|
System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
|
Product colour |
black/orange
|
Battery life |
130 h
|
Battery type |
3 AAA micro batteries
|
Diameter vane |
30 mm
|
Storage temperature |
-20 to +60 °C
|
testo 510i – differential pressure measuring instrument with smartphone operation
Differential pressure (internal sensor) - Piezoresistive
Measuring range |
-150 to +150 hPa
|
---|---|
Accuracy |
±0.05 hPa (0 to +1 hPa)
±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
|
Resolution |
0.01 hPa
|
General technical data
Weight |
92 g
|
---|---|
Dimensions |
148 x 36 x 23 mm
|
Operating temperature |
-20 to +50 °C
|
Product-/housing material |
ABS / TPE
|
System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
|
Product colour |
black/orange
|
Battery life |
150 h
|
Battery type |
3 AAA micro batteries
|
Storage temperature |
-20 to +60 °C
|

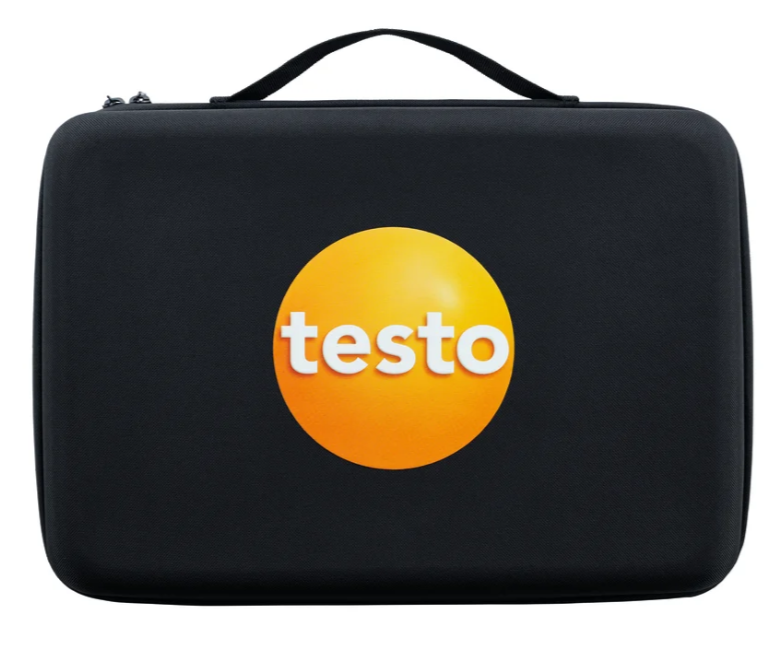

testo HVAC softcase storage case: for testo Smart Probes measuring instruments
General technical data
Weight |
744.2 g
|
---|---|
Dimensions |
400 x 290 x 80 mm
|
Product colour |
Black
|
