TESTO Smart Probes VAC Kit

Stock Code
0563 0003 10
TESTO NEXT LEVEL kit 2 with printer - Flue gas analyzer (O2, CO up to 4,000 ppm) | TESTO 300

TESTO Smart Probes VAC Kit

  For air-conditioning engineers: Compact kit containing four measuring instruments for your most important measuring tasks in, on and involving air conditioning systems. The testo Smart App enables you to work more easily and efficiently: Use intuitive measurement menus for volume flow measurement, for automatic calculation of the dew point and wet bulb temperature or for detecting areas susceptible to mould according to the traffic light principle. Measurement data reports can be emailed directly as a PDF or Excel file.

TESTO Smart Probes VAC Kit Images

Your Advantages
- Measurement of air and surface temperature, humidity, air velocity and volume flow
- Measurement menus for volume flow measurement in ducts and at outlets, identification of mould risk, easy image documentation including IR temperature reading and measurement spot marking
- Display measurement data as a graph or table and analyze and send via testo Smart App
- In conjunction with your smartphone/tablet, carry out the most important measurements involved in air conditioning systems
TESTO Smart Probes VAC Kit Description

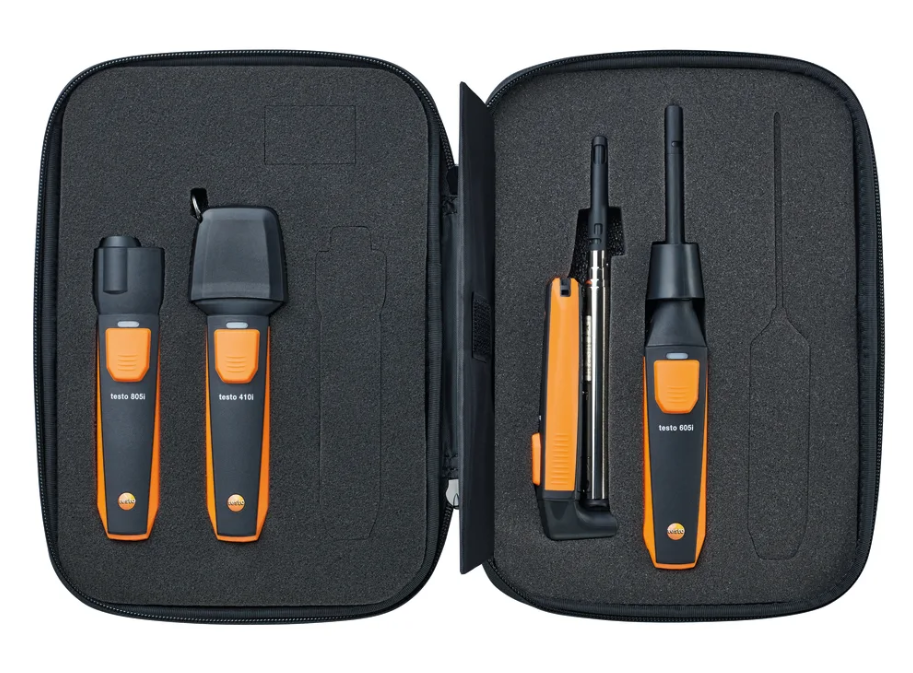

 Delivery Scope
- 1 x testo 405i thermal anemometer operated via smartphone, including extendable (400 mm) telescope, batteries and calibration protocol (0560 1405)
- 1 x testo 410i vane anemometer operated via smartphone, including protective cap, batteries and calibration protocol (0560 1410)
- 1 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
- 1 x testo Smart Case “VAC”, including foam insert (0516 0260)
TESTO Smart Probes VAC Kit Technical Data
testo 405i – thermal anemometer with smartphone operation

Temperature - NTC

Measuring range
-20 to +60 °C
Accuracy
±0.5 °C
Resolution
0.1 °C

Velocity - Hot wire

Measuring range
0 to 30 m/s
Accuracy
±(0.1 m/s + 5 % of mv) (0 to 2 m/s)
±(0.3 m/s + 5 % of mv) (2 to 15 m/s)
Resolution
0.01 m/s

General technical data
Weight
119.6 g
Dimensions
200 x 30 x 41 mm
Operating temperature
-20 to +50 °C
Product-/housing material
Plastic
System requirements
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour
black/orange
Battery life
15 h
Battery type
3 AAA micro batteries
Diameter probe shaft
12 mm
Diameter probe shaft tip
9 mm
Length probe shaft
400 mm
Storage temperature
-20 to +60 °C

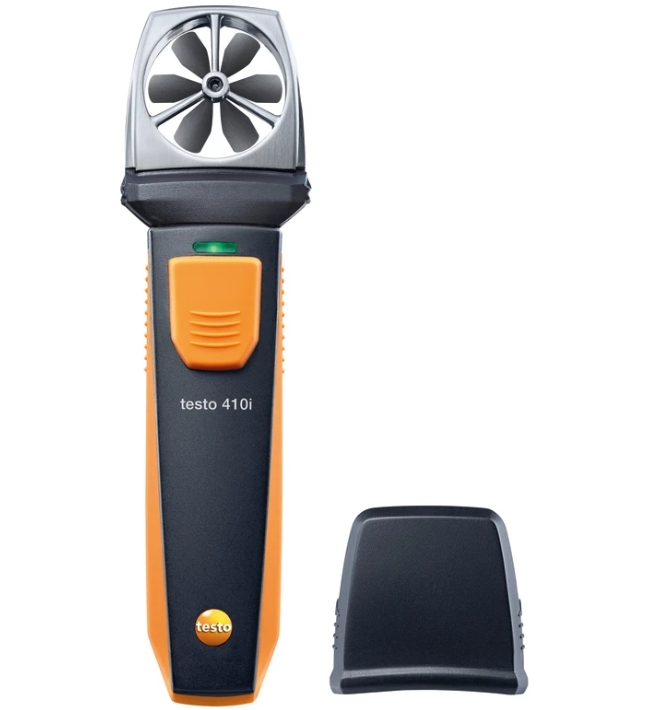

testo 410i – vane anemometer with smartphone operation

Temperature - NTC

Measuring range
-20 to +60 °C
Accuracy
±0.5 °C
Resolution
0.1 °C

Velocity - Vane

Measuring range
0.4 to 30 m/s
Accuracy
±(0.2 m/s + 2 % of mv) (0.4 to 20 m/s)
Resolution
0.1 m/s

General technical data
Weight
117.8 g
Dimensions
154 x 43 x 21 mm
Operating temperature
-20 to +50 °C
Product-/housing material
Plastic
System requirements
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour
black/orange
Battery life
130 h
Battery type
3 AAA micro batteries
Diameter vane
30 mm
Storage temperature
-20 to +60 °C

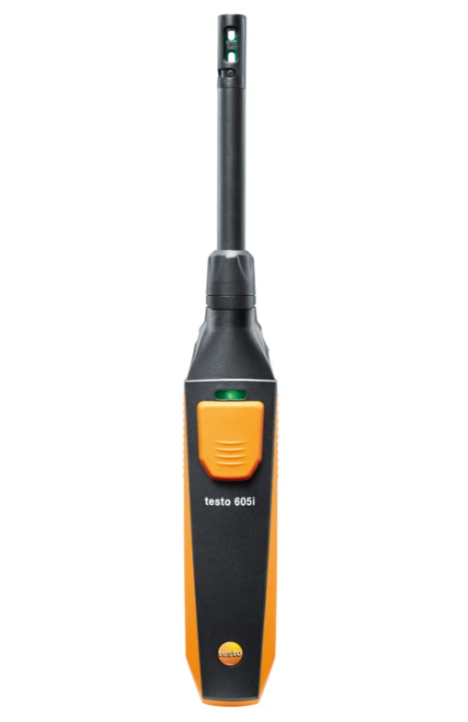

testo 605i - thermohygrometer operated via smartphone

Temperature - NTC

Measuring range
-20 to +60 °C
Accuracy
±0.8 °C (-20 to 0 °C)
±0.5 °C (0 to +60 °C)
Resolution
0.1 °C

Humidity - Capacitive
Measuring range
0 to 100 %RH
Accuracy
Hysteresis: ±1.0 %RH
±2.0 %RH (35 to 65 %RH) (at +25°C)
long-term stability: ±1 %RH / year
±5 %RH (< 10 %RH or > 90 %RH)
±3.0 %RH (65 to 90 %RH) (at +25°C)
±3.0 %RH (10 to 35 %RH) (at +25°C)
Resolution
0.1 %RH

General technical data
Weight
86.4 g
Dimensions
218 x 30 x 27 mm
Operating temperature
-20 to +50 °C
Product-/housing material
Plastic
System requirements
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour
black/orange
Battery life
150 h
Battery type
3 AAA micro batteries
Length probe shaft
100 mm
Data transfer
Bluetooth®
Radio range
100
Storage temperature
-20 to +60 °C

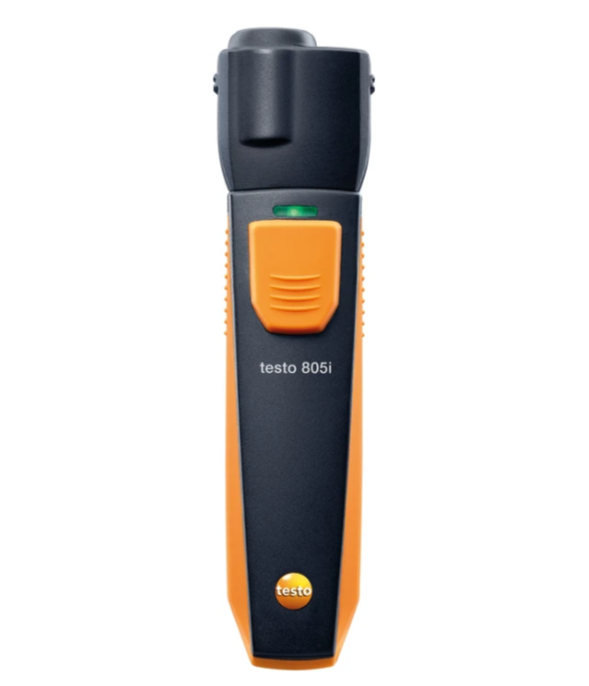

testo 805i – infrared thermometer with smartphone operation

Temperature - Infrared

Measuring range
-30 to +250 °C
Accuracy
±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)
Resolution
0.1 °C

General technical data
Weight
97 g
Dimensions
140 x 36 x 25 mm
Operating temperature
-10 to +50 °C
Product-/housing material
ABS / TPE
System requirements
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour
black/orange
Battery life
30 h
Battery type
3 AAA micro batteries
Storage temperature
-20 to +60 °C

testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Temperature - Infrared
Dimensions
270 x 190 x 60 mm
Product colour
Black
Weight
286 g
TESTO Smart Probes VAC Kit Images
TESTO Smart Probes VAC Kit ImagesTESTO Smart Probes VAC Kit ImagesTESTO Smart Probes VAC Kit Images
TESTO Smart Probes VAC Kit TESTO Smart Probes VAC Kit 0563 0003 10
TESTO Smart Probes VAC Kit
