TESTO Temperature Probe with Clamping Bracket (TC Type K)
The temperature probe with clamping bracket has a fast response time and is ideally suited for surface measurements on pipes.
Your advantages
The temperature probe with clamping bracket has a fast response time and is ideally suited for surface measurements on pipes.
Your advantages
- With clamping bracket: enables quick, easy attachment of the probe to pipes with a diameter of 5 to 65 mm
- TC Type K temperature probe with 1.2 m cable
- Measuring range: -60 to +130 °C, briefly up to +280 °C
TESTO Temperature Probe with Clamping Bracket (TC Type K) Description
Use the thermocouple (TC) temperature probe with clamping bracket to carry out surface temperature measurements on pipes with a pipe diameter of 5 to 65 mm. The clamping bracket enables the surface probe to be attached to the pipe quickly and easily. You can use the probe to measure temperatures of up to +280 °C for brief periods, otherwise temperatures of up to +130 °C apply.
The temperature probe with clamping bracket stands out thanks to its exceptionally quick response time of 5 seconds. The sprung thermocouple strip makes this possible. It adopts the actual temperature of the measurement object in just a few seconds and can also be used on surfaces that are not level. You can replace the thermocouple strip (see accessory “spare measuring head with thermocouple strip”) if it should get damaged.
The surface probe features a 1.2 m cable.
This Type K, Class 2 thermocouple probe has a standardized accuracy of ±2.5 °C.
The perfect probe for any application
Don't see the temperature probe you are looking for? Please contact us directly. We have a large range of standard temperature probes and we also manufacture customized probes specifically according to your personal requirements.
Delivery Scope
1 x TC Type K temperature probe with clamping bracket 0602 4592.
TESTO Temperature Probe with Clamping Bracket (TC Type K) Technical Data
Temperature - TC Type K (NiCr-Ni)
General technical data
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-60 to +130 °C
|
|---|---|
| Accuracy |
Class 2 ¹⁾
|
| Reaction time |
5 s
|
| 1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C. | |
General technical data
| Weight |
82 g
|
|---|---|
| Dimensions |
length: 165 mm
|
| Diameter |
5 mm; 65 mm
|
| Temperature maximum |
280 °C
|
| Diameter probe shaft tip |
6 mm
|
| Cable length |
1.2 m
|
| Fixed cable |
yes
|
| Product colour |
green
|
| Interface |
plug thermocouple
|

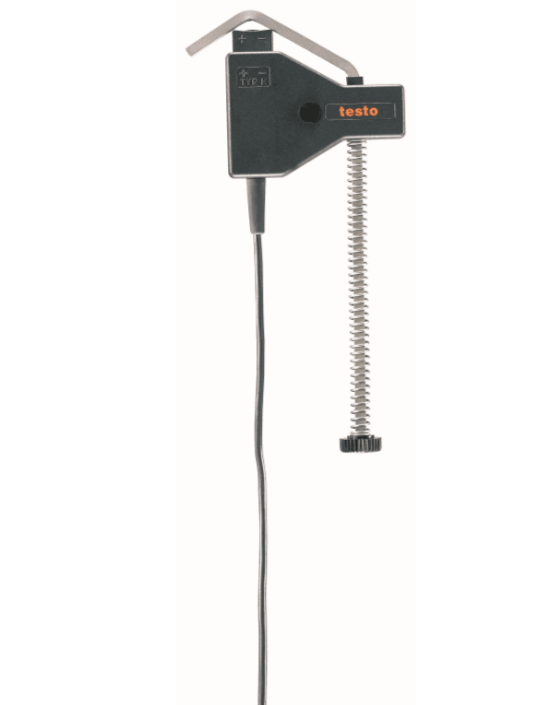

TESTO Temperature Probe with Clamping Bracket (TC Type K) Image
