0563 8836

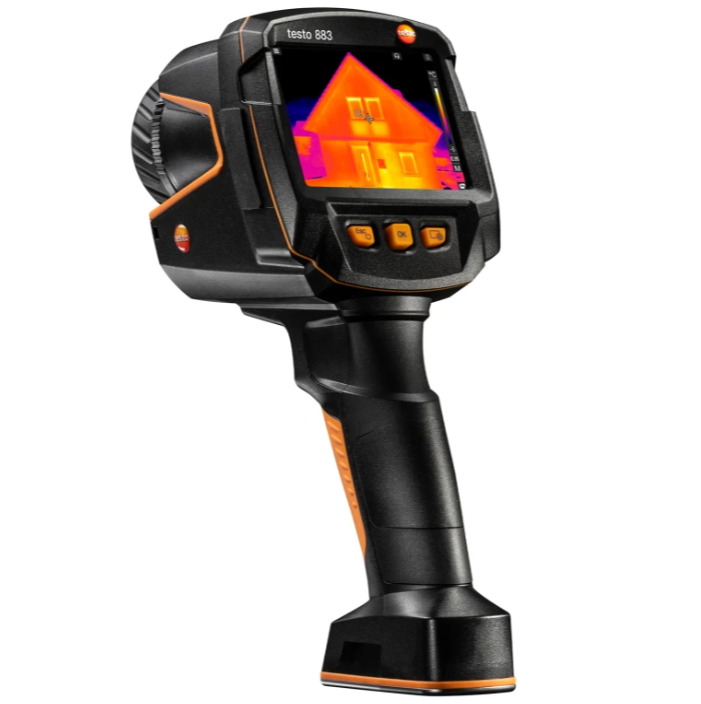

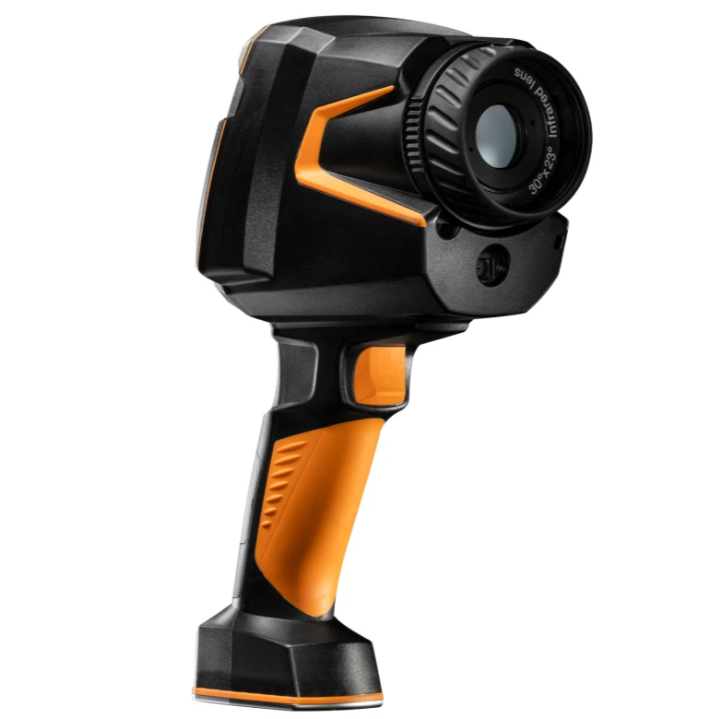

TESTO Thermal Imager Testo 883-2 with 42° and 12° Lenses and Accessories | 883-2 KIT
Designed for building energy consultants: The thermal imager testo 883-2 is the reliable partner when carrying out the search for thermal anomalies. Thanks to the best thermal image quality, free analysis and reporting software as well as wide-angle and telephoto lenses, you can recommend specific optimization measures and save time in the process. Enjoy the benefits that the kit offers: With to the 12° x 9° telephoto lens, spare battery and battery-charging station, you’ll be ready to start straight away and ideally equipped – even for carrying out measurements at greater distances and for long measuring applications.
Your advantages
- Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 × 480 pixels)
- Thermal sensitivity <0.04 °C
- In the kit: Thermal imager testo 883-2 including standard wide-angle lens 42° x 32°, telephoto lens 12° x 9°, spare battery, battery-charging station and case
- Free analysis software for creating professional reports
- App for analysis and creating on-site measurement reports
TESTO Thermal Imager Testo 883-2 with 42° and 12° Lenses and Accessories | 883-2 KIT Description
Delivery Scope
- Thermal imager testo 883-2 with wide-angle lens 42° x 32°
- Telephoto lens 12° x 9°
- Robust case
- Professional software IRSoft (free download)
- USB-C cable
- USB mains unit
- Lithium-ion rechargeable battery
- Auxiliary battery
- Battery charging station with USB cable
- Carrying strap for thermal imager
- Bluetooth® headset (country dependent)
- Short manual
- Calibration protocol
TESTO Thermal Imager Testo 883-2 with 42° and 12° Lenses and Accessories | 883-2 KIT Technical Data
testo 883-2 - thermal imager (320 x 240 pixels) with 42° lens and accessories
Standards
General technical data
Infrared image output
Image output visual
Image presentation
Measurement
Measuring function
Imager equipment
Imager storage
Power supply
Ambient Condition
Physical specification
PC software
Spare rechargeable battery for thermal imager
General technical data
Battery-charging station, desktop charging station
General technical data
TESTO Thermal Imager Testo 883-2 with 42° and 12° Lenses and Accessories | 883-2 KIT Image
testo 883-2 - thermal imager (320 x 240 pixels) with 42° lens and accessories
Standards
| EU-/EG-guidelines |
RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006
|
|---|---|
General technical data
| Product colour |
Black
|
|---|---|
| Display ligthing |
bright / normal / dark
|
| Display type |
capacitive touch display
|
Infrared image output
| Field of view |
42° x 32° (wideangle lens), 12° x 9° (telephoto lens, optional)
|
|---|---|
| Focus |
manual
|
| Minimum focus distance |
0.1 m (wideangle lens); 0.5 (telephoto lens)
|
| Geometric resolution (IFOV) |
2.3 mrad (wideangle lens), 0.7 mrad (telephoto lens)
|
| Image refresh rate |
27 Hz
|
| Infrared resolution |
320 x 240 pixel
|
| SuperResolution (IFOV) |
1.4 mrad (wideangle lens), 0.4 mrad (Telephoto lens)
|
| SuperResolution (Pixel) |
640 x 480 pixels
|
| Thermal sensitivity |
˂ 40 mK
|
| Spectral range |
7.5 to 14 µm
|
| * Inside the EU, outside 9 Hz | |
Image output visual
| Minimum focus distance |
< 0.4 m
|
|---|---|
| Image size |
5 MP
|
Image presentation
| Colours |
iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
|
|---|---|
| Digital zoom |
2x; 4x
|
| Display option |
IR image / real image
|
| Display type |
8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
|
Measurement
| Accuracy |
±2 °C, ±2 % of m.v.; (greater value applies)
|
|---|---|
| Emissivity |
0.01 to 1
|
| Measuring range |
-30 to +650°C
|
| Reflected temperature |
manual
|
| testo ε-Assist |
Included
|
Measuring function
| Analysis function |
Up to 5 selectable individual measuring points, hot/cold spot detection, Delta T, area measurement (min/max on area), alarms, isotherm
|
|---|---|
| Solar mode – manual |
Input of solar radiation value
|
| Electrical mode - manual |
Input of current, voltage or power
|
| Humidity mode - manual |
Included
|
| Humidity measurement with humidity measuring instrument |
Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
|
| IFOV warner |
Included
|
| testo ScaleAssist |
Included
|
| Electrical measurement with clamp meter |
Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)
|
| * An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) | |
Imager equipment
| Voice recording |
Included
|
|---|---|
| Video streaming |
via wireless LAN with testo Thermography App; via USB
|
| Standard lens |
42° x 32°
|
| SiteRecognition |
Included
|
| Laser |
Laser marker
|
| JPEG storage |
Included
|
| Full screen mode |
Included
|
| Digital camera |
Included
|
| Interface |
USB 2.0; USB-C
|
| WLAN Connectivity |
Communication with the testo Thermography App/ wireless module BT/WLAN*
|
| Bluetooth |
Headset for voice annotations, transfer of readings from testo 605i thermohygrometer, testo 770-3 clamp meter (optional)**
|
| * An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) ** excepting USA, China Laser: excepting USA, China and Japan Voice recording : An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) |
|
Imager storage
| File format image |
.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
|
|---|---|
| Storage device |
Internal Memory (2.8 GB)
|
Power supply
| Battery type |
Fast-charging, Li-ion battery can be changed on-site
|
|---|---|
| Charging options |
In instrument / charger (optional)
|
| Mains operation |
yes
|
| Operating time |
≥ 5 h
|
Ambient Condition
| Air humidity |
20 to 80 %RH non-condensing
|
|---|---|
| Housing protection class |
IP54
|
| Vibration |
2G
|
| Storage temperature |
-30 to +60 °C
|
| Operating temperature |
-15 to +50 °C
|
Physical specification
| Product-/housing material |
PC - ABS
|
|---|---|
| Tripod mounting |
1/4" - 20UNC; carrying strap
|
| Weight |
824 g
|
| Dimensions |
171 x 95 x 236 mm
|
PC software
| System requirements |
Windows® 11 ; Windows® 10; Windows® 8; Windows® 7
|
|---|---|
Spare rechargeable battery for thermal imager
General technical data
| Weight |
119 g
|
|---|---|
| Dimensions |
20 x 24 x 140 mm (LxWxH)
|
| Product colour |
Black
|
Battery-charging station, desktop charging station
General technical data
| Weight |
385 g
|
|---|---|
| Dimensions |
80 x 90 x 75 mm (LxWxH)
|
| Cable length |
1 m
|
| Product colour |
black/orange
|
