Stock Code
0590 7501

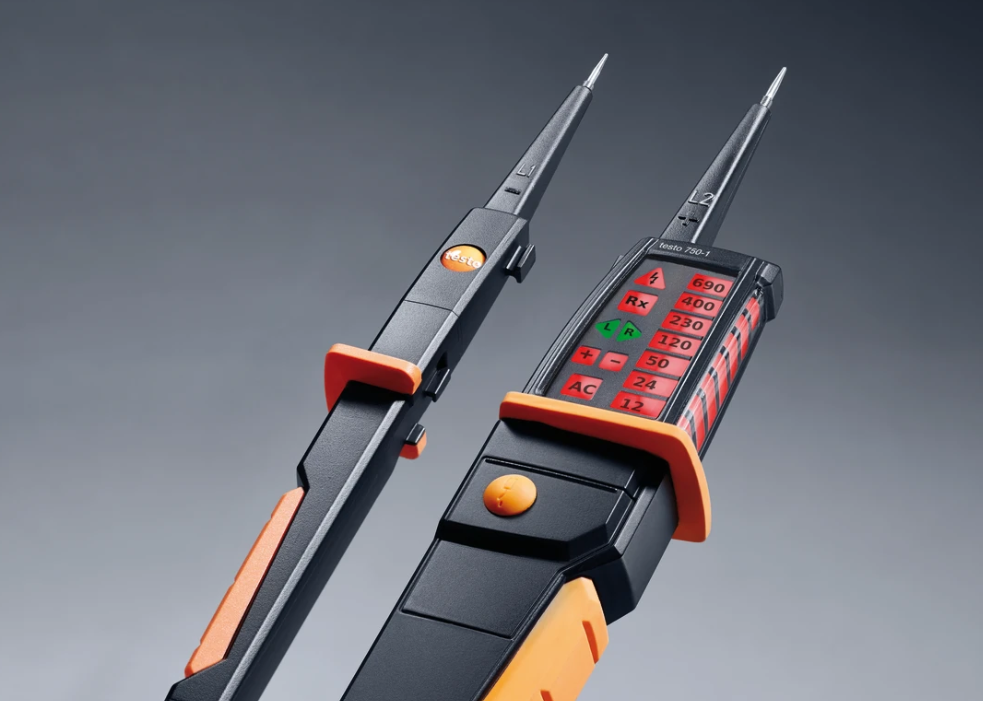

TESTO Voltage Tester | 750-1
Your reliable companion when it comes to testing electrical systems and equipment. The all-round LED display and unique fibre-optic technology mean the voltage indication can be seen clearly and distinctly from any position with this voltage tester.
Your advantages
- Clear, patented all-round LED display
- In accordance with DIN EN 61243-3:2014 and CAT III
- Fibre-optics for optimum voltage indication
- Robust housing with ergonomic handle and anti-slip ring
TESTO Voltage Tester | 750-1 Description
In contrast to the standard voltage testers on the market, the testo 750-1 voltage tester has an extremely practical all-round LED display which can easily be seen in every work position and from any location. In addition, large fibre-optic illuminators show the presence of voltage clearly and distinctly. The deep-seated anti-slip ring, the ergonomic shape of the handle and the robust housing provide greater comfort when working. The robust design means the voltage tester is durable and reliable, even when used intensively.
The testo 750-1 voltage tester enables voltage or de-energization on electrical circuits or systems to be determined reliably. The instrument meets the latest EN 61243-3:2010 voltage tester standard and has a safety specification according to CAT III. In addition, it is suitable for continuity testing and rotating magnetic field measurement.
Delivery Scope

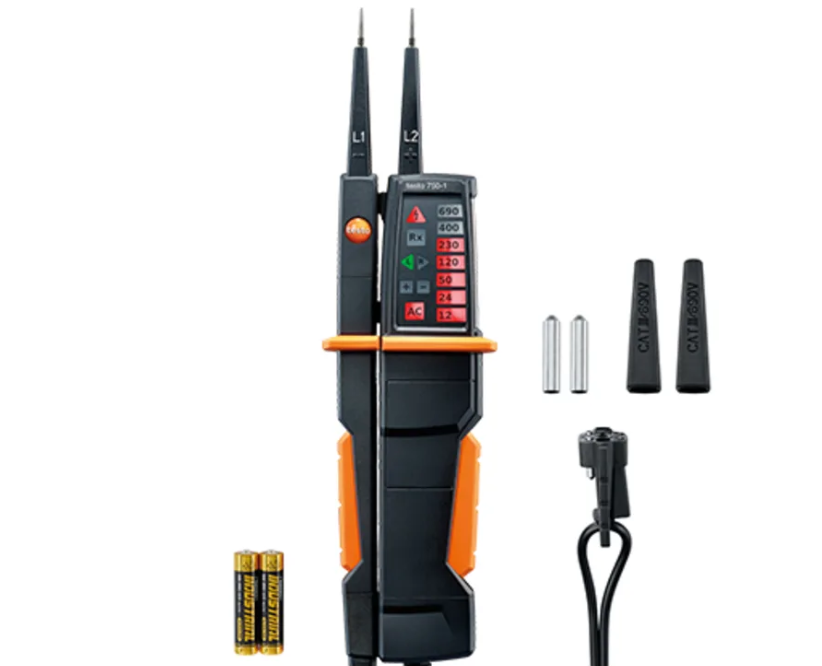

testo 750-1 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.
TESTO Voltage Tester | 750-1 Technical Data
DC voltage
AC voltage
General technical data
Instrument Measurement Functions
TESTO Voltage Tester | 750-1 Image
DC voltage
| Measuring range |
12 to 690 V
|
|---|---|
| Accuracy |
according to DIN EN 61243-3:2014
|
AC voltage
| Measuring range |
12 to 690 V
|
|---|---|
| Accuracy |
according to DIN EN 61243-3:2014
|
General technical data
| Operating humidity |
0 to 95 %RH
|
|---|---|
| Weight |
235 g
|
| Dimensions |
270 x 65 x 35 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61326-1; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600V; CAT III 690 V
|
| Authorizations |
TÜV; CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| Display ligthing |
yes
|
| Rotating magnetic field testing |
yes
|
| Single pole phase testing |
-
|
| Measuring point illumination |
-
|
TESTO Voltage Tester | 750-1 Image
